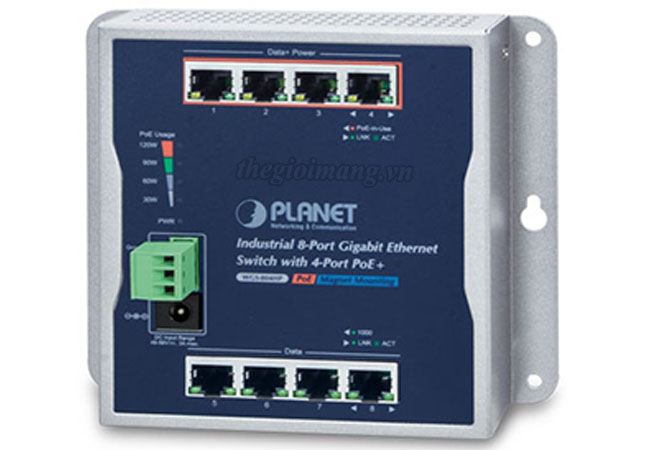

Thiết bị chuyển mạch Công nghiêp Planet WGS-804HP
| Model | WGS-804HP |
|---|---|
| Hardware Specifications | |
| Network Connector | 8-Port RJ45 for 10/100/1000BASE-T |
| PoE Inject Port | 4-Port with 802.3af / 802.3at PoE injector function (Port-1 to Port-4) |
| Switch Architecture | Store and forward |
| MAC Address Table | 8K MAC address table with auto learning function |
| Data Buffer | 1Mbit |
| Switch Fabric | 16Gbps / non-blocking |
| Switch Throughput | 11.9Mpps@64Bytes |
| Jumbo Frame | 9Kbytes |
| Flow Control | IEEE 802.3x pause frame for full duplex Back pressure for half duplex |
| Connector | ■ Removable 3-pin terminal block for power input - Pin 1/2 for DC Power - Pin 3 for earth ground ■ DC power jack with 2.0mm central pole |
| Power Requirements | 48~56V DC, 3A (max.) |
| Power Consumption | 140 watts / 478BTU |
| ESD Protection | 6KV DC |
| EFT Protection | 6KV DC |
| Enclosure | IP30 metal |
| Dimensions (W x D x H) | 148 x 24.2 x 134 mm |
| Weight | 510g |
| Installation | Wall mount, magnetic wall mount and DIN-rail kit |
| Power over Ethernet | |
| PoE Standard | IEEE 802.3af / 802.3at Power over Ethernet PSE |
| PoE Power Supply Type | End-span |
| PoE Power Output | IEEE 802.3af Standard - Per port 48V~56V DC (depending on the power supply), max. 30 watts IEEE 802.3at Standard - Per port 50V~56V DC (depending on the power supply), max. 30 watts |
| Power Pin Assignment | 1/2(+), 3/6(-) |
| PoE Power Budget | 120 watts (depends on power input) |
| Environment & Standard Conformance | |
| Operating | Temperature: -10 ~ 60 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
| Storage | Temperature: -20 ~ 70 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
| Regulation Compliance | FCC Part 15 Class A, CE |
| Stability Testing | IEC 60068-2-32 (Free fall) IEC 60068-2-27 (Shock) IEC 60068-2-6 (Vibration) |
Những tính năng chính Industrial switch Planet WGS-804HP
Physical Port
Power over Ethernet
Layer 2 Features
Industrial Case / Installation
