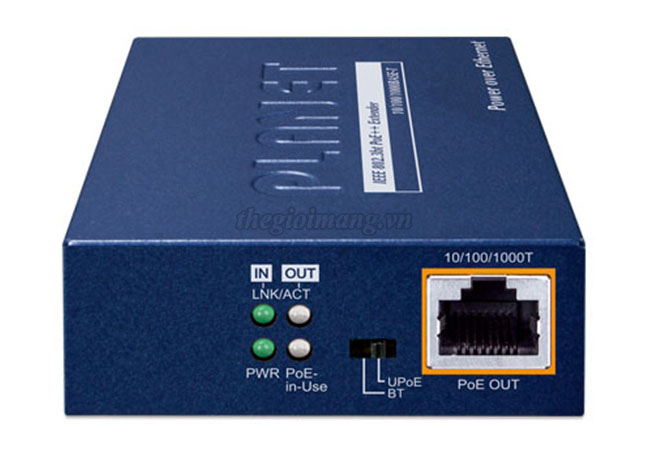

Planet POE-E301 : 1-Port 802.3bt to 1-Port 802.3bt Gigabit PoE++ Extender
Bộ mở rộng cấp nguồn PoE Planet POE-E301
| Model | POE-E301 |
|---|---|
| Hardware Specifications | |
| PoE IN | 1 x 10/100/1000BASE-T Ethernet with IEEE 802.3bt/at/af PoE “Data + DC＂in auto MDI/MDI-X, auto-negotiation RJ45 connector |
| PoE OUT | 1 x 10/100/1000BASE-T Ethernet with IEEE 802.3bt/at/af PoE ＂Data + DC” out auto MDI/MDI-X, auto-negotiation RJ45 connector |
| DIP Switch | PoE power feeding options (BT/UPOE) selection |
| Dimensions (W x D x H) | 94 x 70 x 26 mm |
| Weight | 258g |
| Power Requirements | IEEE 802.3bt PoE++ compliant with voltage within 52V-56V DC IEEE 802.3af PoE compliant with voltage within 44V-56V DC |
| Power Consumption | 2.4 watts (system maximum) /PoE Output at maximum 60 watts |
| Enclosure | Metal |
| Installation | Wall or DIN-rail mounting |
| Protection | ESD (Ethernet): 2KV Surge (EFT for power) : 2KV |
| Network Cable | 10BASE-T: 4-Pair UTP Cat. 5 up to 100m (328ft) 100BASE-TX: 4-Pair UTP Cat. 5 up to 100m (328ft) 1000BASE-T: 4-Pair UTP Cat. 5e, 6, up to 100m (328ft) EIA/TIA- 568 100-ohm STP (100m, 328ft) |
| Switching Specifications | |
| Data Rate | 10/100/1000Mbps |
| Switch Architecture | Store-and-Forward |
| Switch Throughput | 10Mbps:14880pps@64Bytes 100Mbps:148810pps@64Bytes 1000Mbps:1488000pps@64Bytes |
| Maximum Frame Size | 9K bytes |
| Flow Control | IEEE 802.3x pause frame for full duplex Back pressure for half duplex |
| Power over Ethernet | |
| PoE Standard | PoE in Port IEEE 802.3bt Power over Ethernet Plus end-span/mid-span PD class 4 PD Per PoE out Port IEEE 802.3bt Power over Ethernet Plus end-span PSE Backward compatible with IEEE 802.3af/at Power over Ethernet standard |
| PoE Power Supply Type | End-span + Mid-span |
| PoE Power | “PoE In” Port 50-56V DC, max. 95 watts PoE input “PoE Out” Port 55V DC, max. 65 watts PoE budget |
| Power Pin Assignment | “PoE In” Port 1/2 (-), 3/6 (+); 4/5 (+), 7/8 (-) “PoE Out” Port 1/2 (-), 3/6 (+); 4/5 (+), 7/8 (-) |
| Maximum Distance | 400 meters with daisy-chain installation of 3 units |
| Environment & Standards | |
| Operating | Temperature: 10 ~ 60 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
| Storage | Temperature: -40 ~ 85 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
| Regulatory Compliance | FCC Part 15 Class A, CE |
