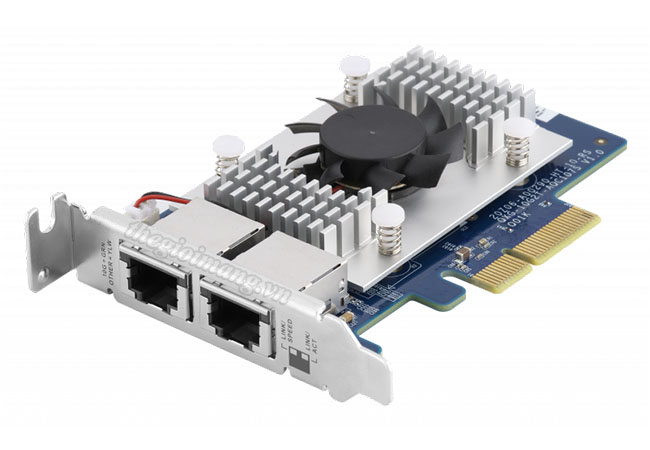

QXG-10G2T-107
|
- Controller: Marvell AQtion AQC107S
- Number of Ports: 2 x NBASE-T (RJ45)
- Connector: NBASE-T (RJ45)
- PCIe and Lanes: PCIe Gen 2.0 x4
- Transmission rates: 10Gbps/5Gbps/2.5Gbps/1Gbps/100Mbps
- IEEE Standards:
- IEEE 802.3an
- IEEE 802.3bz
- Supported NAS operating systems: QTS/QuTS hero; Windows; Linux
- Supported QNAP NAS: Models with PCIe slot(s) (1 free slot required)
- Port and Cable: RJ-45; over CAT-6 class cable
- Package Content: 1 x Network card, 1 x QIG; 3 x Brackets
|
|
|
- Controller: NVIDIA Mellanox ConnectX-4 Lx
- Number of Ports: 2 x SFP+ ports
- Connector: SFP+
- PCIe and Lanes: PCIe Gen3 x8
- Transmission rates: 10Gbps
- IEEE Standards:
- IEEE Std 802.3ae 10 Gigabit Ethernet
- IEEE Std 802.3az Energy Efficient Ethernet
- IEEE Std 802.3ap based auto-negotiation between 1, 10, 40 Gb/s, FEC, and KR startup
- Proprietary Ethernet protocols (20/40GBASE-R2, 50GBASE- R4)
- IEEE Std 802.3ad Link Aggregation and Failover
- IEEE 802.1Q, 802.1p VLAN tags and priority
- IEEE Std 802.1Qau Congestion Notification (QCN)
- IEEE Std 802.1Qaz (ETS)
- Supported QNAP NAS: Models with PCIe slot(s) (1 free slot required)
- Port and Cable: SFP+ DAC cable (1.5M, 3M, 5M) or SFP+ OPTIC transceiver
- Package Content: 1 x Network card, 1 x QIG; 3 x Brackets
- Others: SR-IOV Support, RDMA over Converged Ethernet (RoCE), Zero Touch RoCE (ZTR) Support, VLAN insertion/stripping Support, iSER Support, NVGRE, VXLAN, Geneve Support, How mant virtual functions: 256, How many physical functions per host: 8.
|
|
Two 10GbE ports, supports up to five speeds (10GbE / 5GbE / 2.5GbE / 1GbE / 100MbE), and maximizes your NAS and PC network connectivity
|
- Controller: Marvell AQtion AQC113C; Driver download: From Marvell AQtion (not required for QTS)
- Number of Ports: 2 x NBASE-T (RJ45)
- Connector: NBASE-T (RJ45)
- PCIe and Lanes: PCIe 3.0 x4
- Transmission rates: 10Gbps/5Gbps/2.5Gbps/1Gbps/100Mbps
- IEEE Standards:
- IEEE 802.3an
- IEEE 802.3bz
-
- Supported NAS operating systems: QTS 4.5.2/QuTS hero h4.5.2 or later, Windows 10; Ubuntu 18.04 and later
- Supported QNAP NAS: Models with PCIe slot(s) (1 free slot required)
|
|
QM2 series PCIe cards add support for M.2 SATA SSDs and 10GbE RJ45 connectivity |
- Controller: Aquantia AQC107
- Connector: 2 x M.2 2280 SATA SSD slots; 1x 10GBASE-T port
- PCIe and Lanes: PCIe Gen2 x4
- Transmission rates: 10G/ 5G/ 2.5G/ 1G/ 100M
- Dimensions (L x W x H): 157 × 68.9 × 20.6 mm
- Cable: RJ-45; over CAT-6 class cable
|
|
2 x PCIe Gen3 NVMe SSD & 1 x 10GbE port expansion card to enhance performance
|
- Controller: Marvell AQC113C
- Connector: 2 x M.2 2280 PCIe (Gen3 x4) NVMe SSD slots
- PCIe and Lanes: PCIe Gen3 x8
- Transmission rates: 10G/ 5G/ 2.5G/ 1G/ 100M
- Dimensions (L x W x H): 152.65 × 68.9 × 18.9 mm
- Cable: RJ-45; over CAT-6 class cable
|
2 x M.2 PCIe Gen4 NVMe SSD & 2 x 10GbE ports expansion cards |
- Controller: Marvell AQC113C
- Connector: 2 x M.2 2280 PCIe (Gen4 x4) NVMe SSD slots
- PCIe and Lanes: PCIe Gen4 x8
- Transmission rates: 10G/ 5G/ 2.5G/ 1G/ 100M
- Dimensions (L x W x H): 187 × 68.9 × 19.35 mm
- Form factor: Low-profile
- Cable: RJ-45; over CAT-6 class cable
|
2 x M.2 PCIe Gen4 NVMe SSD & 1 x 10GbE port expansion card |
- Controller: Marvell AQC113C
- Connector: 2 x M.2 2280 PCIe (Gen4 x4) NVMe SSD slots
- PCIe and Lanes: PCIe Gen4 x8
- Dimensions (L x W x H): 187 × 68.9 × 19.35 mm
- Form factor: Low-profile
- Cable: RJ-45; over CAT-6 class cable
|
Single-port, 5-speed 10 GbE network expansion card |
- Controller: Marvell AQtion Ethernet Controller; Driver not required for QTS and QuTS hero
- Number or Ports: 1 x NBASE-T (RJ45)
- Connector: NBASE-T (RJ45)
- PCIe and Lanes: PCIe 3.0 x2
- Transmission Rates: 10Gbps/5Gbps/2.5Gbps/1Gbps/100Mbps
- IEEE Standards: IEEE 802.3 an/bz
- Supported NAS operating systems: QTS 4.5.2 /QuTS hero h4.5.2 or late
- Supported QNAP NAS: Models with PCIe slot(s)
- Port and Cable: RJ-45; over CAT-6 class cable
|
Dual-port 10 GbE network expansion card |
- Dimensions (L x W x H) 141.9 mm × 1-slot W × Low-profile (The dimension is based on PCBA size × not including the bracket) mm
- Number of Ports: 2 x SFP+ ports
- Connector SFP+
- PCIe and Lanes PCIe Gen3 x8
- Transmission Rates 10Gbps/1Gbps
- IEEE Standards
- IEEE Std 802.3ae 10 Gigabit Ethernet
- IEEE Std 802.3az Energy Efficient Ethernet
- IEEE Std 802.3ap based auto-negotiation between 1, 10, 40Gb/s, FEC, and KR startup Proprietary Ethernet protocols (20/40GBASE-R2, 50GBASE- R4)
- IEEE Std 802.3ad Link Aggregation and Failover
- IEEE 802.1Q, 802.1p VLAN tags and priority
- IEEE Std 802.1Qau Congestion Notification (QCN)
- IEEE Std 802.1Qaz (ETS)
- SR-IOV Support: Yes
- Supported NAS operating systems: At least QTS 5.1.0 &QuTS Hero 5.1.0 build 20230725
- Supported QNAP NAS: Models with PCIe slot(s) (1 free slot required)
- Support Ubuntu Commercial Linux Distribution: Ubuntu 20.04/22.04
- Support Windows: Windows 11; Windows Server 2022
- Port and Cable SFP+ DAC cable (1.5M, 3M, 5M) or SFP+ OPTIC transceiver
|
Dual-port, 5-speed 10 GbE network expansion card |
- Dimensions : 111.5 mm L × 1-slot W × Low-profile (The dimension is based on PCBA size × not including the bracket) mm
- Controller: Marvell AQtion AQC107
- Number of Ports: 2 x NBASE-T (RJ45)
- Connector: NBASE-T (RJ45)
- PCIe and Lanes: PCIe 3.0 x4
- Transmission Rates: 10Gbps/5Gbps/2.5Gbps/1Gbps/100Mbps
- IEEE Standards
- IEEE 802.3an
- IEEE 802.3bz
- Supported NAS OS: At least QTS/QuTS 5.0.1.2430 build 20230614
- Supported QNAP NAS: Models with PCIe slot(s) (1 free slot required)
- Support Ubuntu Commercial Linux Distribution: Linux 3.10 and higher
- Support RedHat: Linux 3.10 and higher
- Support Windows: Windows 10/11 (32-bit/64-bit)
- Support Debian: Linux 3.10 and higher
- Port and Cable: RJ-45; over CAT-6 class cable
|
