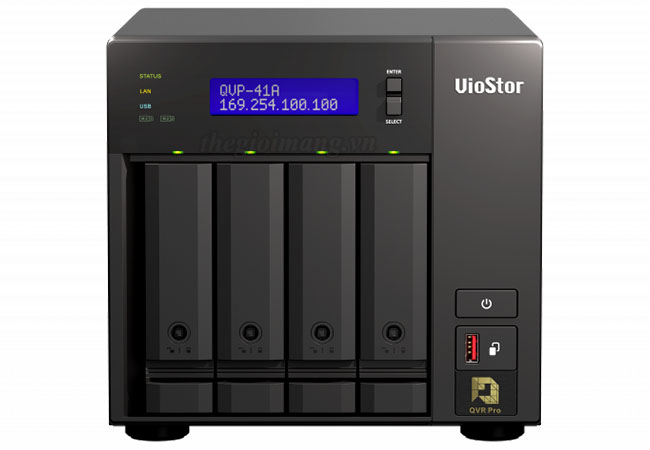

Thiết bị lưu trữ cho Camera giám sát QNAP QVP-41A
| SKU | QVP-41A |
|---|---|
| OS | QVR Pro OS (QVP) |
| CPU | • Intel® Pentium G5400T 2-core 3.1 GHz Processor • Architecture: 64-bit x86 • Graphic Processors: Intel® UHD Graphics 610 |
| Memory | • System: 8 GB SODIMM DDR4 (2 x 4 GB) • Maximum: 32 GB ( 2 x 16 GB) • Slot: 2 x SO-DIMM DDR4 |
| Flash Memory | 5GB (Dual boot OS protection) |
| Max Live Cameras (Local Display) | • 24ch @ All 720p,H.264, 30FPS • 12ch @ All 1080p,H.264, 30FPS |
| Max Playback Cameras (Local Display) | 12 |
| Max Concurrent Connection (Client) | 8 (4 live cameras / per remote client) *The number of client concurrent connection varies by live cameras |
| Embedded Channel | 8 |
| Max Channel | 24 |
| Max Throughput | 264 Mbps |
| Drive Bay | 4 x 3.5-inch SATA 6Gb/s, 3Gb/s |
| Drive Compatibility | 3.5-inch bays: • 3.5-inch SATA hard disk drives • 2.5-inch SATA hard disk drives • 2.5-inch SATA solid state drives |
| Hot-swappable | ✔ |
| Gigabit Ethernet Port (RJ45) | 2 |
| PCIe Slot | 2 • Slot 1: PCIe Gen 3 x16 (CPU) • Slot 2: PCIe Gen 3 x4 (PCH) |
| USB 3.2 Gen 1 port | 1 |
| USB 3.2 Gen 2 (10Gbps) Port | • 2 x Type-C USB 3.2 Gen2 5V/3A 10Gbps • 2 x Type-A USB 3.2 Gen2 5V/1A 10Gbps |
| HDMI Output | 1, HDMI 2.0 (up to 3840 x 2160 @ 60Hz) |
| Audio Input | 1 x 3.5mm microphone input jacks |
| Audio Output | 1 x built-in speaker, 1 x 3.5mm line out jack (for amplifiers or speakers) |
| Form Factor | Tower |
| LED Indicators | HDD 1-4, Status, LAN, USB port, M.2 port |
| LCD Display/ Button | Yes |
| Buttons | Power, Reset, USB Copy |
| Dimensions (HxWxD) | 188.2 × 199.3 × 279.6 mm |
| Weight | 5.4 ~ 7.01 kg |
| Operating temperature | 0 - 40 °C (32°F - 104°F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
| Power Supply Unit | 250W, 100-240V |
| Power Consumption: Operating Mode, Typical | 37.32 W |
| Fan | • System fan: 1 x 120mm, 12VDC • CPU fan: 2 x 60mm blower fan |
| Features |
|
