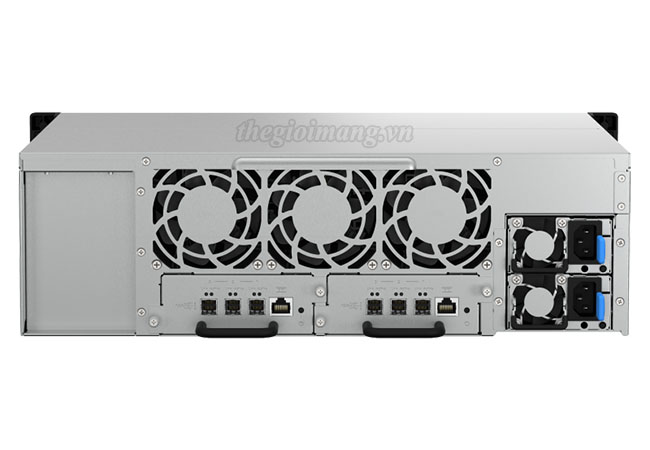

Thiết bị lưu trữ mở rộng NAS QNAP TL-R1620Sdc
| SKU | TL-R1620Sdc |
|---|---|
| Drive Bays | 16 x 3.5-inch SAS 12Gb/s, SAS/SATA 6Gb/s |
| Drive Compatibility | 3.5-inch bays: 3.5-inch SATA hard disk drives 2.5-inch SATA hard disk drives 2.5-inch SATA solid state drives |
| Hot-swappable | ✔ |
| Gigabit Ethernet Port (RJ45)1 | 1 For console access and CLI |
| Form Factor | 3U Rackmount |
| Host Interface | 3 x 12Gb/s SAS 3.0 wide ports (4-wide port) Mini-SAS HD (SFF-8644) for each controller |
| LED Indicators | HDD 1-16, Status, Power, Fan, Temperature, SAS connector status |
| Buttons | Power, OLED |
| Dimensions (HxWxD) | 131.3 × 482.2 × 425.3 mm |
| Max. number of HDDs/SSDs supported | 16 |
| Hard Drive Type | 3.5" or 2.5" SAS12Gb/s 6Gb/s drives |
| Operating temperature | 0 - 40 °C (32°F - 104°F) |
| Storage Temperature | -20 - 70°C (-4°F - 158°F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
| Power Supply Unit | 550W(x2), 100-240V |
| Fan | 3 x 80mm, 12VDC |
| System Warning | Buzzer |
| Management | Managed via NAS QES OS and JBOD Manager for Windows |
| Danh sách sản phẩm NAS NAP TL-R1630Sdc hỗ trợ | ||
| 16 Bays | ES1640dc, ES1640dc v2, ES1686 | |
| 24 Bays | ES2486dc | |
