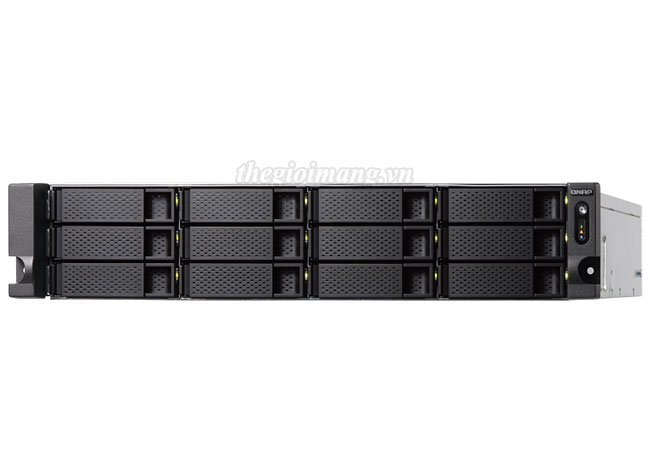

| Thiết bị lưu trữ NAS QNAP TS-1886XU-RP | |
| CPU | ● Intel® Xeon® D-1622 quad-core 2.60 GHz processor (burst up to 3.2 GHz) ● Intel® Xeon® D-1602 dual-core 2.50 GHz processor (burst up to 3.2 GHz) |
| CPU Architecture | 64-bit x86 |
| Maximum Memory | 128 GB (4 x 32 GB) |
| Memory Slot | 4 x Long-DIMM DDR4 |
| Flash Memory | 5GB (Dual boot OS protection) |
| Drive Bay | ● Front: 12 x 3.5-inch SATA 6Gb/s, 3Gb/s ● Rear: 6 x 2.5-inch SATA 6Gb/s, 3Gb/s |
| Drive Compatibility | 3.5-inch bays: ● 3.5-inch SATA hard disk drives ● 2.5-inch SATA hard disk drives ● 2.5-inch SATA solid state drives 2.5-inch bays: ● 2.5-inch SATA solid state drives |
| Hot-swappable | ✔ |
| SSD Cache Acceleration Support | ✔ |
| Gigabit Ethernet Port (RJ45) | 4 |
| 10 Gigabit Ethernet Port | 2 x 10GbE SFP+ SmartNIC port |
| Encryption Engine | ✔ (AES-NI) |
| System Memory | ● 8 GB UDIMM DDR4 ECC (2 x 4GB) ● 4 GB UDIMM DDR4 ECC (1 x 4GB) |
| Jumbo Frame | ✔ |
| PCIe Slot | 4 ● Slot 1: PCIe Gen 3 x4 ● Slot 2: PCIe Gen 3 x8 or x4 ● Slot 3: PCIe Gen 3 x4 ● Slot 4: PCIe Gen 3 x8 or x4 |
| USB 3.2 Gen 1 port | 2 |
| Form Factor | Rackmount |
| LED Indicators | HDD, SSD, Status, LAN, storage expansion port status |
| Buttons | Power, Reset |
| Dimensions (HxWxD) | 88.3 × 482 × 549.7 mm |
| Weight (Net) | 12.73 kg |
| Weight (Gross) | 18.69 kg |
| Operating temperature | 0 - 40 °C (32°F - 104°F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
| Power Supply Unit | 550W(x2), 100-240V |
| Power Consumption: Operating Mode, Typical | 117.92 W |
| Fan | System fan: 3 x 60mm, 12VDC |
| Sound Level | 56.9 db(A) |
| Available Models & Data sheets | |
| TS-1886XU-RP-D1622-8G | |
| Intel® Xeon® D-1622 4 cores/8 threads 2.6 GHz processor (burst up to 3.2 GHz), 8 GB DDR4 ECC RAM (2 x 4 GB); redundant power supply | |
| TS-1886XU-RP-D1602-4G | |
| Intel® Xeon® D-1602 2 cores/4 threads 2.5 GHz processor (burst up to 3.2 GHz), 4 GB DDR4 ECC RAM (1 x 4 GB); redundant power supply |
