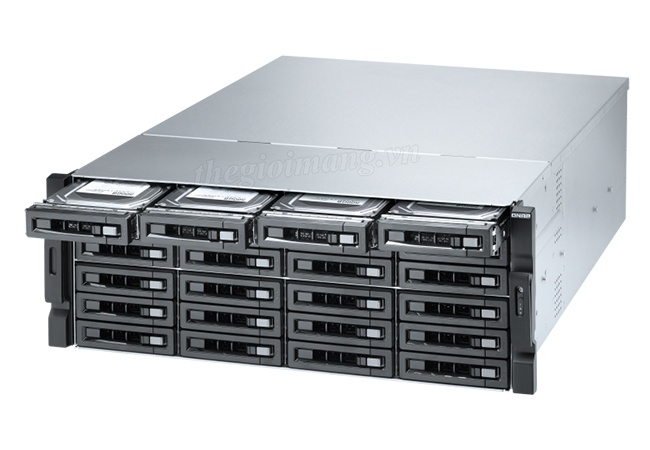

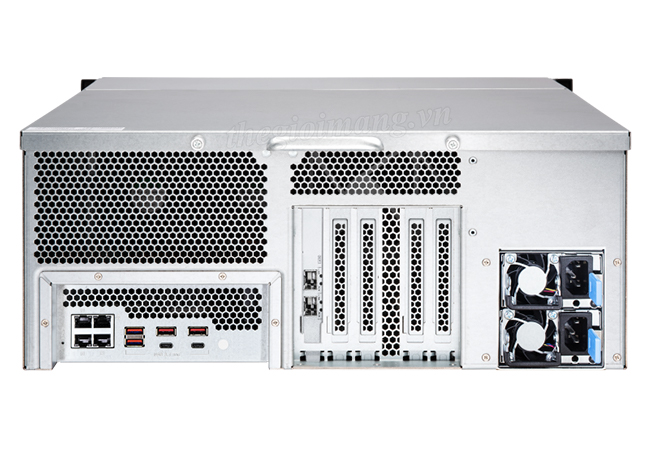

Thiết bị lưu trữ NAS QNAP TS-2483XU-RP
| SKU | TS-2483XU-RP-E2136-16G | |
|---|---|---|
| CPU | ● Intel® Xeon® E-2136 6-core 3.3 GHz processor (burst up to 4.5 GHz) ● Architecture: 64-bit x86 ● Floating Point Unit: Yes ● Encryption Engine: AES-NI ● Hardware-accelerated Transcoding: Yes |
|
| Memory | ● System: 16 GB UDIMM DDR4 ECC (2 x 8GB) ● Maximum: 128 GB (4 x 32 GB) ● Slot: 4 x UDIMM DDR4 |
|
| Flash Memory | 5GB (Dual boot OS protection) | |
| Drive Bay | 24 x 3.5-inch SATA 6Gb/s, 3Gb/s | |
| Drive Compatibility | 3.5-inch bays: 3.5-inch SATA hard disk drives 2.5-inch SATA hard disk drives 2.5-inch SATA solid state drives |
|
| Hot-swappable | Yes | |
| SSD Cache Acceleration | Yes | |
| Gigabit Ethernet Port (RJ45) | 4 | |
| 10 Gigabit Ethernet Port | 2 x 10GbE SFP+ SmartNIC port | |
| PCIe Slot | 5 Slot 1: PCIe Gen 2 x4 (PCH) Slot 2: PCIe Gen 3 x4 (CPU) Slot 3: PCIe Gen 2 x4 (PCH) Slot 4: PCIe Gen 3 x8 (CPU) Slot 5: PCIe Gen 2 x4 (PCH) |
|
| USB 3.2 Gen 2 (10Gbps) Port | 2 x Type-C USB 3.2 Gen 2 10Gbps 4 x Type-A USB 3.2 Gen 2 10Gbps |
|
| Form Factor | 4U Rackmount | |
| LED Indicators | HDD 1-24, Status, LAN, storage expansion port status | |
| Buttons | Power, Reset | |
| Dimensions (HxWxD) | 176.15 × 481.04 × 672.02 mm | |
| Weight | 20.67 kg ~ 28.56 kg | |
| Operating temperature | 0 - 40 °C (32°F - 104°F) | |
| Storage Temperature | -20 - 70°C (-4°F - 158°F) | |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) | |
| Power Supply Unit | 800W(x2), 100-240V | |
| Power Consumption: Operating Mode, Typical | 168.97 W | |
| Fan | System fan: 4 x 92mm, 12VDC | |
| Max. Number of Concurrent Connections (CIFS) - with Max. Memory | 10000 | |
24-Bay NAS, Intel® Xeon® E-2136 quad-core 3.3 GHz processor (burst up to 4.5 GHz), 16 GB UDIMM DDR4 (2 x 8GB)
|
