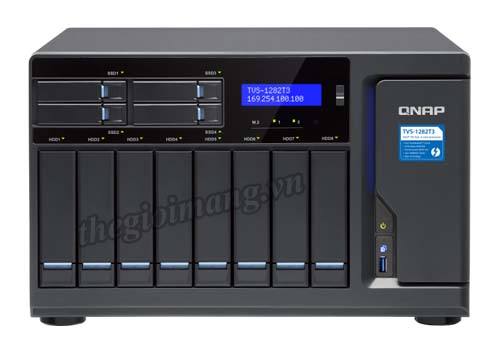

Exclusively providing a Thunderbolt™/NAS/iSCSI SAN triple solution, the TVS-1282T3 features four Thunderbolt™ 3 ports to enable seamless collaboration between up to four Mac® and Windows® devices.
Thiết bị lưu trữ QNAP TVS-1282T3
| Ordering P/N | TVS-1282T3-i5-16G TVS-1282T3-i7-32G TVS-1282T3-i7-64G |
|---|---|
| CPU | TVS-1282T3-i5-16G: Intel® Core™ i5-7500 3.4 GHz quad-core processor TVS-1282T3-i7-32G: Intel® Core™ i7-7700 3.6 GHz quad-core processor TVS-1282T3-i7-64G: Intel® Core™ i7-7700 3.6 GHz quad-core processor |
| System memory | TVS-1282T3-i5-16G：
Total DIMM slots: 4
System memory: 16 GB DDR4 RAM Memory modules pre-installed: 8 GB x2 Maximum memory: 64 GB (16 GB x4) TVS-1282T3-i7-32G： Total DIMM slots: 4
System memory: 32 GB DDR4 RAM Memory modules pre-installed: 8 GB x4 Maximum memory: 64 GB (16 GB x4) TVS-1282T3-i7-64G： Total DIMM slots: 4
System memory: 64 GB DDR4 RAM Memory modules pre-installed: 16 GB x4 |
| Flash Memory | 512MB DOM |
| M.2 Slot | 2 x M.2 2242/2260/2280/22110 SATA 6Gb/s SSD Note: 1. The M.2 SSD is not included as standard. 2. M.2 SSD operations can easily generate excessive heat. It is recommended to install a heatsink (from QNAP or a third-party provider) on the M.2 SSD. |
| Hard Drive Tray | 4 x 2.5" SSD 8 x 2.5"/3.5" hard drive or SSD |
| Drive Interface | SATA 6Gbps/3Gbps; Hot-swappable |
| Thunderbolt Port |
4 x Thunderbolt™ 3 high-speed port |
| USB | 1 x USB 3.0 port (Front) 4 x USB 3.0 port (Rear) |
| LAN Port | 2 x 10GBase-T port 4 x GbE port |
| HDMI Output | 3 |
| Audio Input | Audio In: 2 x 6.3mm MIC In |
| Audio Output | 2 x built-in speaker, 1 x 3.5mm Line-out jack Note: Only one of the above audio output ports can work at a time. If a speaker is connected, the sound will output through the speaker. |
| LED Indicators | System status, 2.5" SSD, M.2 SSD, 3.5" HDD |
| Buttons | System: Power button, Reset button, USB one-touch-backup button |
| System Warning | Buzzer |
| Form Factor | Tower |
| Dimensions | 234.6 x 369.9 x 319.8 mm 9.23 x 14.56 x 12.59 inch |
| Weight | Net (NAS only): 11.55kg/ 25.46 lb Gross (with packing and accessories): 13.65 kg/ 30.09 lb |
| Sound Level (dB)* | Sound pressure (LpAm) (bystander position): 21.6 dB (with 8 x Seagate ST2000VN000-1HJ164 hard drive installed) |
| Temperature | 0-40˚C |
| Relative Humidity | 5~95% non-condensing, wet bulb: 27˚C |
| Power Supply | Input: 100-240V~, 3-1.5A, 60-50Hz; Output: 250W |
| PCIe Slot | 3 (1* PCIe Gen3 x8; 2* PCIe Gen3 x4) Note: Three PCle slots are occupied by two Thunderbolt™ 3 cards and a 10GbE adapter. |
| Fan | System: 3 x 8 cm cooling fan CPU: 2 x 9 cm fan |
