Mô tả sản phẩm

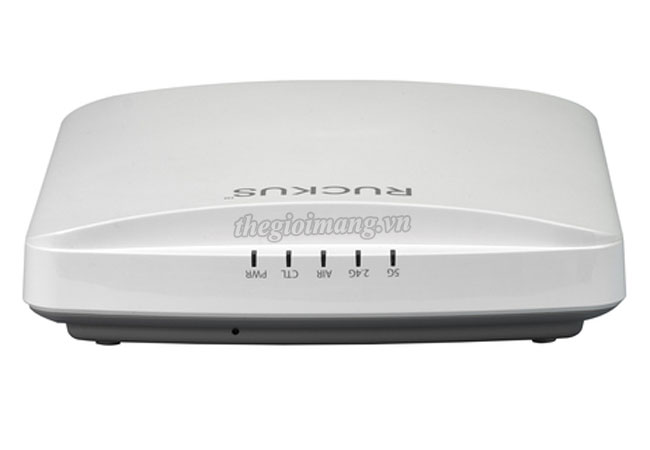

Thiết bị Wi-Fi 6 Indoor Access Point Ruckus R650

Model	Ruckus R650 (901-R650-Z200)
WI-FI
Wi-Fi Standards	· IEEE 802.11a/b/g/n/ac/ax
Supported Rates	· 802.11ax: 4 to 2400 Mbps · 802.11ac: 6.5 to 1732 Mbps · 802.11n: 6.5 to 600 Mbps · 802.11a/g: 6 to 54 Mbps · 802.11b: 1 to 11 Mbps
Supported Channels	· 2.4GHz: 1-13 · 5GHz: 36-64, 100-144, 149-165
MIMO	· 4x4 SU-MIMO · 4x4 MU-MIMO
Spatial Streams	· 4 streams SU/MU MIMO 5GHz · 2 streams SU/MU MIMO 2.4GHz
Radio Chains and Streams	· 4x4:4 (5GHz) · 2x2:2 (2.4GHz)
Channelization	· 20, 40, 80, 160/80+80MHz
Security	· WPA-PSK, WPA-TKIP, WPA2 AES, WPA3, 802.11i, Dynamic PSK, OWE · WIPS/WIDS
Other Wi-Fi Features	· WMM, Power Save, Tx Beamforming, LDPC, STBC, 802.11r/k/v · Hotspot · Hotspot 2.0 · Captive Portal · WISPr
RF
Antenna Type	· BeamFlex+ adaptive antennas with polarization diversity · Adaptive antenna that provides unique antenna patterns per band
Antenna Gain (max)	· Up to 3dBi
Peak Transmit Power (Tx port/chain + Combining gain)	· 2.4GHz: 26dBm · 5GHz: 28 dBm
Frequency Bands	· ISM (2.4-2.484GHz) · U-NII-1 (5.15-5.25GHz) · U-NII-2A (5.25-5.35GHz) · U-NII-2C (5.47-5.725GHz) · U-NII-3 (5.725-5.85GHz)
PERFORMANCE AND CAPACITY
Peak PHY Rates	· 2.4GHz: 574 Mbps · 5GHz: 2400 Mbps
Client Capacity	· Up to 512 clients per AP
SSID	· Up to 31 per AP
NETWORKING
Controller Platform Support	· SmartZone · ZoneDirector · Standalone · Unleashed
Mesh	· SmartMesh™ wireless meshing technology. Self-healing Mesh
IP	· IPv4, IPv6, dual-stack
VLAN	· 802.1Q (1 per BSSID or dynamic per user based on RADIUS) · VLAN Pooling · Port-based
802.1x	· Authenticator & Supplicant
Tunnel	· L2TP, GRE, Soft-GRE
Policy Management Tools	· Application Recognition and Control · Access Control Lists · Device Fingerprinting · Rate Limiting
IoT Capbale	· Yes
PHYSICAL INTERFACES
Ethernet	· One 2.5Gbps Ethernet port and one 1Gbps Ethernet port · Power over Ethernet (802.3af/at) with Category 5/5e/6 cable · LLDP
USB	· 1 USB 2.0 port, Type A
PHYSICAL CHARACTERISTICS
Physical Size	· 22.4cm (L), 19.4cm (W), 4.7cm (H)
Weight	· 0.854 kg
Mounting	· Wall, acoustic ceiling, desk · Secure bracket (sold separately)
Physical Security	· Hidden latching mechanism · T-bar Torx · Bracket (902-0120-0000) Torx screw & padlock (sold separately)
Operating Temperature	· 0ºC (32ºF) - 40ºC (104ºF)
Operating Humidity	· Up to 95%, non-condensing

Xem thêm

Thông số kỹ thuật

901-R650-Z200 : R650 dual-band (5GHz and 2.4GHz concurrent) 802.11ax wireless access point, 4x4:4 + 2x2:2 streams, adaptive antennas, dual ports, onboard BLE and Zigbee, PoE support. Includes adjustable acoustic drop ceiling bracket. One Ethernet port is 2.5GbE. Does not include power adaptor.

Data sheet Ruckus R650 Indoor Wi-Fi 6 (802.11ax) 4x4:4 Wi-Fi Access Point

Xem thêm thông số kỹ thuật
