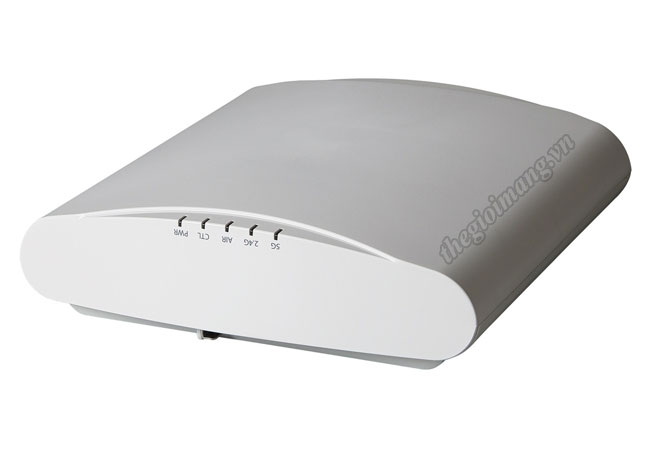

Ruckus R720 Indoor 802.11ac Wave 2 Wi-Fi Access Point with Multi-Gigabit Backhaul for Ultra-Dense Device Environments ● BeamFlex+ adaptive antennas ● One 2.5Gbps Ethernet port and one 1Gbps Ethernet port ● Support 512 clients per AP ● SSID up to 31 per AP ● Does not include power adapter or PoE injector
Thiết bị Wi-Fi Indoor Access Point Ruckus R720
Model | Ruckus R720 |
WI-FI | |
Wi-Fi Standards | · IEEE 802/11a/b/g/n/ac Wave 2 |
Supported Rates | · 802.11ac: 6.5 to 1,733Mbps (MCS0 to MCS9, NSS = 1 to 4 for VHT20/40/80, NSS = 1 to 2 for VHT160) · 802.11n: 6.5 Mbps to 600Mbps (MCS0 to MCS31) · 802.11a/g: 54, 48, 36, 24, 18, 12, 9, 6Mbps · 802.11b: 11, 5.5, 2 and 1 Mbps |
Supported Channels | · 2.4GHz: 1-13 · 5GHz: 36-64, 100-144, 149-165 |
MIMO | · 4x4 SU-MIMO · 4x4 MU-MIMO |
Spatial Streams | · 4 for both SU-MIMO & MU-MIMO |
Radio Chains and Streams | · 4x4:4 |
Channelization | · 20, 40, 80, 160/80+80MHz |
Security | · WPA-PSK, WPA-TKIP, WPA2 AES, WPA3, 802.11i, Dynamic PSK · WIPS/WIDS |
Other Wi-Fi Features | · WMM, Power Save, Tx Beamforming, LDPC, STBC, 802.11r/k/v · Hotspot · Hotspot 2.0 · Captive Portal · WISPr |
RF | |
Antenna Type | · BeamFlex+ adaptive antennas with polarization diversity · Adaptive antenna that provides 4,000+ unique antenna patterns per band |
Antenna Gain (max) | · Up to 3dBi |
Peak Transmit Power (Tx port/chain + Combining gain) | · 2.4GHz: 29dBm · 5GHz: 28dBm |
Frequency Bands | · ISM (2.4-2.484GHz) · U-NII-1 (5.15-5.25GHz) · U-NII-2A (5.25-5.35GHz) · U-NII-2C (5.47-5.725GHz) · U-NII-3 (5.725-5.85GHz) |
PERFORMANCE AND CAPACITY | |
Peak PHY Rates | · 2.4GHz: 600 Mbps · 5GHz: 1733 Mbps |
Client Capacity | · Up to 512 clients per AP |
SSID | · Up to 31 per AP |
NETWORKING | |
Controller Platform Support | · SmartZone · ZoneDirector · Unleashed1 · Standalone · Cloud |
Mesh | · SmartMesh™ wireless meshing technology. Self-healing Mesh |
IP | · IPv4, IPv6, dual-stack |
VLAN | · 802.1Q (1 per BSSID or dynamic per user based on RADIUS) · VLAN Pooling · Port-based |
802.1x | · Authenticator & Supplicant |
Tunnel | · L2TP, GRE, Soft-GRE |
Policy Management Tools | · Application Recognition and Control · Access Control Lists · Device Fingerprinting · Rate Limiting |
IoT Capbale | · Yes |
PHYSICAL INTERFACES | |

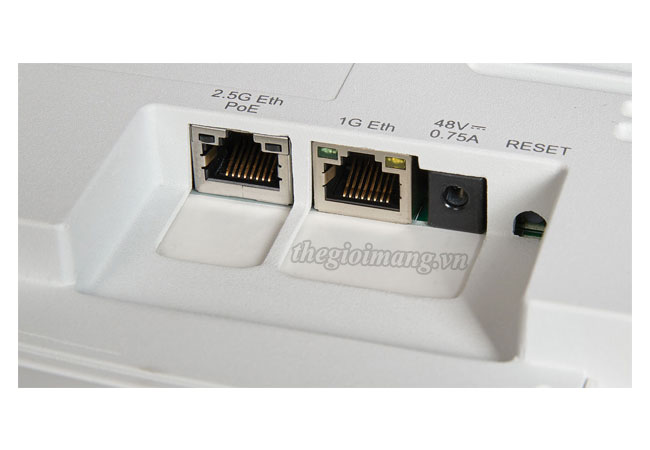

Ethernet | · One 2.5Gbps Ethernet port and one 1Gbps Ethernet port · Power over Ethernet with Category 5/5e/6 cable · LLDP |
USB | · 1 USB 2.0 port, Type A |
PHYSICAL CHARACTERISTICS | |
Physical Size | · 22.7 cm (L), 21.3 cm (W), 6 cm (H) · 8.9in (L) x 8.4in (W) x 2.4in (H) |
Weight | · 1.12 kg (2.5 lb.) |
Mounting | · Wall, acoustic ceiling, desk · Secure bracket (sold separately) |
Physical Security | · Hidden latching mechanism · Kensington Lock Hole · T-bar Torx · Bracket (902-0120-0000) Torx screw & padlock (sold separately) |
Operating Temperature | · -10ºC (14ºF) - 50ºC (122ºF) |
Operating Humidity | · Up to 95%, non-condensing |
901-R720-WW00 : R720 dual-band (5GHz and 2.4GHz concurrent) Wave 2 802.11ac wireless access point, 4x4:4 streams, adaptive antennas, dual ports, PoE support. Includes adjustable acoustic drop ceiling bracket. One Ethernet port is 2.5GbE. Does not include power adaptor.
901-R720-Z200 : R720 dual-band (5GHz and 2.4GHz concurrent) Wave 2 802.11ac wireless access point, 4x4:4 streams, adaptive antennas, dual ports, PoE support. Includes adjustable acoustic drop ceiling bracket. One Ethernet port is 2.5GbE. Does not include power adaptor.
Data sheet Ruckus R720 Indoor 802.11ac Wave 2 4x4:4 Wi-Fi Access Point with 2.5Gbps backhaul
