Ruckus SmartZone 144

Ruckus SmartZone 144 wireless network controllers : ● 4 x 1GbE ports ● 4 x 10GbE ports ● Managed APs : Up to 2,000 per controller, Up to 6,000 per cluster ● Managed Switches : Up to 400 per controller, Up to 1200 per cluster ● WLANs Up to 2,048 ● VLANS Up to 4,096 ● Concurrent Devices : Up to 40,000 per controller, Up to 120,000 per cluster

  • Giá bán : Liên hệ để có giá tốt
  • Tình trạng : Còn hàng


Thiết bị Wireless Network Controller Ruckus SmartZone 144

Model Ruckus SmartZone 144
Capacity
Managed APs · Up to 2,000 per controller
· Up to 6,000 per cluster
Managed Switches · Up to 400 per controller
· Up to 1200 per cluster
WLANs · Up to 2,048
VLANS · Up to 4,096
Concurrent Devices · Up to 40,000 per controller
· Up to 120,000 per cluster
Key Functionality
Device Management  · RUCKUS Wi-Fi APs supported: R850, R750, R730, R720, R710, R650, R610, R550, R510, R320, R310, M510, H510, C110, H320, E510, T811CM, T750, T750SE, T710, T710S, T610, T610S, T504, T310, T301, FZM300, FZP300
· RUCKUS ICX 700 series switches running FastIron 8.0.80 and above supported; FastIron 80.0.90a required for Zero-Touch Provisioning
Device Type Support  · Wi-Fi APs, Switches
Controller Expansion  · Up to 4 controllers in N+1 active-active mode, supporting non-disruptive capacity expansion
Controller Redundancy  · 3+1 distributed data preserving with N+1 redundancy within a cluster
Data Offload  · Local offload of traffic directly to the Internet
AP · WPA, WPA2-AES, 802.11i, 802.1x/EAP, PSK, WISPr, WEP, WPA3, Enhanced Open, MAC Address
· Fast EAP-SIM re-authentication
· EAP-SIM, EAP-AKA, EAP-AKA over WLAN for 802.1x
· Wi-Fi Locations with the SZ AAA-Proxy functionality enabled
User Database  · Internal database up to 25,000 users
· External: RADIUS, LDAP, Active Directory
Access Control  · L2 (MAC address-based) L3/4 (IP and Protocol based)
· L2 client isolation
· Management interface access control
· Time-based WLANs
· Device type access policies
· Two-factor authentication password, SMS
Wireless Intrusion Detection (WIDS/WIPS) · Rogue AP detection / prevention
· Evil-twin/AP spoofing detection
· Ad hoc detection
AAA  · RADIUS (primary and backup)
Hotspot  · WISPr, Wi-Fi CERTIFIED, Passpoint™, HotSpot 2.0*
Guest Access  · Supported
Captive Portal  · Supported
Mesh  · Self-healing, Self-forming, Zero-touch provisioning
Media  · 802.11e/WMM, U-APSD, Wi-Fi Calling Prioritization*
mDNS Bonjour Fencing  · Supported
WISPr  · WISPr authentication, SZ downlink AP Survivability*
Software Queues  · Per traffic type (4), per client
SmartCast Traffic Classification  · Automatic, heuristics and TOS based or VLAN-defined
Rate Limiting  · Supported
WLAN Prioritization  · Supported
Client Load Balancing  · Automatic
Band Load Balancing  · Supported
AP Provisioning  · L3 or L2 auto-discovery
· Auto-software upgrade
· Automatic channel optimization
Configuration Management  · Secure multi-operator login (RBAC)
· Large scale (bulk) AP management tools
· Switch software and firmware upgrades
· Switch configuration management
· Per zone firmware versioning control
· Configuration audit trails
· Alarm and event notification (SNMP V1 / V2 / V3)
· Event Logging (Syslog)
· Integrated on-board remote accessible EMS functionality
· RESTful APIs (JSON)
· Web-UI
· CLI

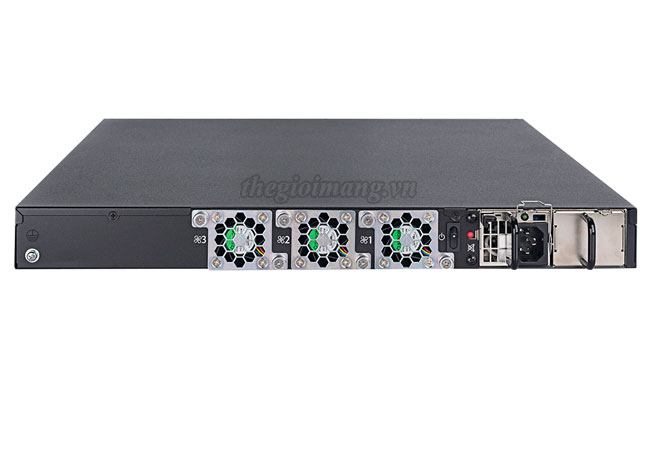

Physical Characteristics
Power  · (FRU Option) AC hot-swappable power supply
· AC power consumption: 135W
· Power Rating: 100-127VAC/200-240VAC, 47-63HZ
Dimensions  · 1RU rack mountable: 435 mm (W) x 522 mm (D) x 44 mm (H); 17.13 in (W) x 20.55 in (D) x 1.73 in (H)
Weight  · 6.97 kg, 15.37 lb
Connections  · 4 - 1GbE ports
· 4 - 10GbE ports
LED  · Front panel LEDs, one rear LED
Fans  · Three (Field-Swappable fans FRU 902-S120-0000)
Mean-Time-Between-Failure (MTBF)  · At 25C: 167,007 hours
· With 2x fans and 1x AC power supply unit
Environmental Conditions  · Operating Temperature: 0°C (32°F) – 40°C (104°F)
· Operating Humidity: 5% to 95%, noncondensing
· Humidity storage: 95%, non-condensing
