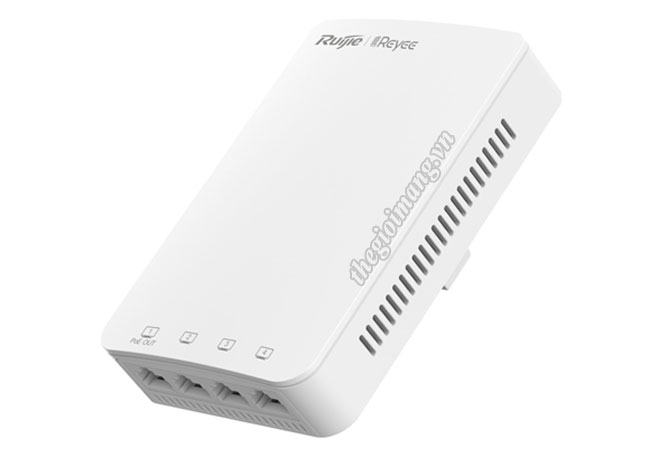

Model	Ruijie RG-RAP1200(P)
Hardware specifications
Radio	• Dual-stream dual-band
Protocol	• Concurrent 802.11ac wave2, wave1, 802.11a/b/g/n
Operating Bands	• 802.11b/g/n: 2.4G ~ 2.4835GHz • 802.11a/n/ac: 5G: 5.150~5.350GHz, 5.725~5.850GHz
Antenna	• PF antenna (2.4G: 2dBi, 5G: 2dBi)
Spatial Streams	• 2.4G 2x2MIMO 5G 2x2MIMO
Max Throughput	• 2.4G: up to 400Mbps • 5G: up to 867Mbps • Access rate per AP: 1.267Gbps
Modulation	• OFDM: BPSK@6/9Mbps, QPSK@12/18Mbps, 16-QAM@24Mbps, 64-QAM@48/54Mbps • DSSS: DBPSK@1Mbps, DQPSK@2Mbps, and CCK@5.5/11Mbps • MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM and 256QAM
Receiver Sensitivity	• 11b: -91dBm(1Mbps), -88dBm(5Mbps), -85dBm(11Mbps) • 11a/g: -89dBm(6Mbps), -80dBm(24Mbps), -76dBm(36Mbps), -71dBm(54Mbps) • 11n: -83dBm@MCS0, -65dBm@MCS7, -83dBm@MCS8, -65dBm@MCS15 • 11ac HT20: -83dBm(MCS0), -57dBm(MCS9) • 11ac HT40: -79dBm(MCS0), -57dBm(MCS9) • 11ac HT80: -76dBm(MCS0), -51dBm(MCS9)
Maximum Transmit Power	• 5.725~5.850GHz: ≤18dBm (EIRP) • 5.150~5.350GHz: ≤18dBm (EIRP) • 2.4~2.4835GHz: ≤18dBm (EIRP)
Adjustable Power	• 1dBm
Dimensions	• 126mm×86mm×50mm
Weight	• 0.24kg
Service Ports	• Front: - 4 10/100/1000Base-T Ethernet ports - LAN1 port supports IEEE.802.3af PoE OUT • Rear: 1 10/100/1000Base-T Ethernet port
Management Port	• N/A
LED Indicator	• 1 LED indicator
Power Supply	• Support PoE (802.3af/at)
Power Consumption	• ≤8W
Environment	• Operating temperature: -30°C~65°C • Storage temperature: -40°C~85°C • Operating humidity: 0%~100% (non-condensing) • Storage humidity: 0%~100% (non-condensing)
Installation	• Wall plate installation
Safety Standard	• GB4943, IEC 62368-1
EMC Standard	• GB9254, EN301 489, EN50155, EN50121, EN55032, EN61000, EN55035
Vibration Standard	vIEC61373
Radio Standard	• SRRC certification, EN300 328, EN301 893
MTBF	• >250000H
Software Features
Operating Mode	• AP mode and routing mode
WLAN	• Maximum number of clients: 110 • Recommended number of clients: 80 • Up to 8 SSIDs • Support SSID hiding • Configuring the authentication mode, encryption mechanism, and VLAN attributes for each SSID • SSID-based and radio-based STA limit • Support Layer 2 user isolation
Roaming	• Support Layer 2 and Layer 3 roaming
Security	• Support PSK authentication • Support static blacklist and whitelist • Support WPA (TKIP), WPA2 (AES), and WPA-PSK data encryption
Routing	• Support static IP address, DHCP, PPPoE Dial Up
Management and maintenance	• Support unified networking of all network equipment • Support local or remote management with Ruijie Cloud app • Support local management with web • Support remote management with Ruijie Cloud platform

RG-RAP1200(P) : 1300M dual-band gigabit wall plate AP, 4 front LAN ports, including 1 passthrough port, built-in antennas, 1 gigabit uplink port and 1 passthrough port on the rear panel, dual-band 2.4GHz/5GHz, 802.11a/b/g/n/ac Wave1/Wave2, up to 1267Mbps access rate per AP; support AP and routing mode, Layer 3 roaming, Reyee unified networking and Ruijie Cloud app management; Support PoE.

Data sheet Ruijie RG-RAP1200(P)Dual-Band Gigabit Wall Plate Access Point
