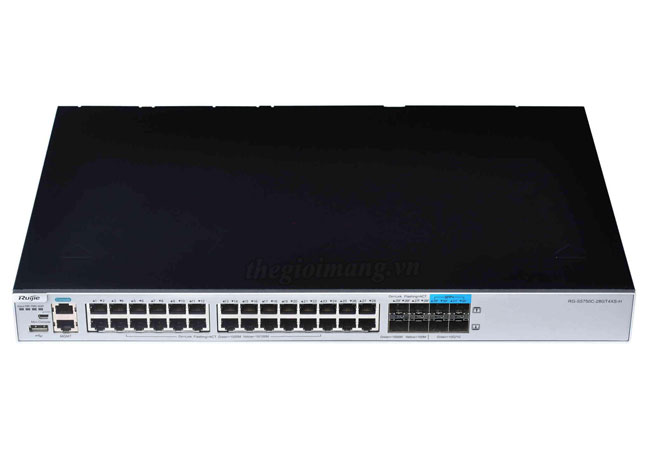

Ruijie RG-S5750C-28GT4XS-H

Ruijie RG-S5750C-28GT4XS-H 28-Port Gigabit L3 Managed Switch with SFP+ :

28 10/100/1000BASE-T ports
4 100/1000BASE-X SFP ports (combo)
4 1G/10GBASE-X SFP+ ports
2 extension slots, 2 modular power slots

Giá bán : Liên hệ để có giá tốt
Tình trạng : Còn hàng

Thông số kỹ thuật
Tài liệu liên quan

Thiết bị chuyển mạch Switch Ruijie RG-S5750C-28GT4XS-H

Model	RG-S5750C-28GT4XS-H
GE RJ45 port	28
GE SFP port	4 (Combo)
10GE SFP+ port	4
Card slot	2
Card type	1-port QSFP+ dedicated stack card
ETH management port	1
Console port (RJ45)	1
Console port (Mini USB)	1
USB 2.0 port	1
Switching capacity	598Gbps/5.98Tbps
Forwarding rate	222Mpps
MAC table size	64000
ARP table size	20000
Jumbo frame	9216 Bytes
Packet buffer	32Mbit
Maximum PoE power budget	n/a
PoE/PoE+ enabled port	n/a
Standard	n/a
Dimensions(WxDxH)	440 X 280 X 44mm
Unit weight	3.9kg
Type	Hot swappable
Redundancy	1+1
AC frequency	50/60Hz
Rated AC voltage	100~240V
Maximum AC voltage	90~264V
Rated HVDC voltage	240V DC
Maximum HVDC voltage	192~288V DC
Rated DC voltage	-36V ~ -72V DC
Maximum power rating	140W
Idle power rating	45W
Dissipation mode	Air-cooled heat dissipation. Intelligent speed adjustment
Number of fan	3
Airflow	Air flows in from the left and exhausts from the right
Safety	EN 60960-1, IEC 60950-1
EMC	EN 300 386
Emissions	EN 55022, EN55032
Immunity generic	EN 55024
ESD	EN 61000-4-2
Radiated	EN 61000-4-3
EFT/Burst	EN 61000-4-4
Surge	EN 61000-4-5
Conducted	EN 61000-4-6
Power frequency magnetic field	EN 61000-4-8
Voltage dips and interruptions	EN 61000-4-11
Harmonics	EN 61000-3-2
Flicker	EN 61000-3-3
Anti-gas corrosion	GB-T2423.51-2012(Refer to IEC 60068-2-60)
Operating temperature	0 ℃ ~ 50 ℃
Storage temperature	-40 ℃ ~ 70 ℃
Operating humidity	10%~90% RH
Storage humidity	5%~95% RH
Operating altitude	-500 ~ 5000m
MTBF(hours)	555960
Ethernet	Full-duplex, Half-duplex, Auto negotiation, Flow control on interface, Jumbo frames, Link aggregation(IEEE802.3ad, LACP, maximum 8 member ports per AP), 2048 maximum aggregation ports, Load balancing, Broadcast storm control
VLAN	IEEE802.1Q, 4094 VLAN ID, 4094 VLANIF interface, Access mode, Trunk mode, Default VLAN, Port-based VLAN, MAC-based VLAN, Protocol based VLAN, IP subnet-based VLAN, Voice VLAN, GVRP, Super VLAN, Private VLAN, Guest VLAN
MAC	Automatic learning and aging of MAC addresses, Static and dynamic MAC address entries, Interface-based and VLAN-based MAC address learning limiting, Sticky MAC, MAC address spoofing guard
ARP	Static ARP, Trusted ARP, Gratuitous ARP, Proxy ARP, Local proxy ARP, ARP trustworthiness detection, ARP-based IP guard
STP	STP(IEEE802.1D), RSTP(IEEE802.1w), MSTP(IEEE802.1s), 64 MST instances, Port Fast, BPDU guard, BPDU filter, TC guard, TC filter, Root guard, Auto edge, BPDU transparent transmission, BPDU tunnel, VLAN-Specific Spanning Tree(VSST, working with PVST, PVST+ and RPVST)
ERPS	G.8032 v1/v2, Single-ring, Tangent-ring, Intersecting-ring, Load balancing
L2 multicast	IGMP v1/v2/v3 snooping, IGMP filter, IGMP fast leave, IGMP querier, IGMP security control, IGMP profile, MLD v1/v2 snooping, MLD filter, MLD fast leave, MLD source check
QinQ	Basic QinQ, Selective QinQ(Flexible QinQ), 1:1 VLAN switching, N:1 VLAN switching VLAN mapping, TPID configuration, MAC address replication, L2 transparent transmission, Priority replication, Priority mapping
IPv4 unicast routing	IPv4 static routing, RIPv1/v2, OSPFv2, BGP4, MBGP, IS-IS, PBR, VRF, ECMP, WCMP, Routing policies, 12000 IPv4 routing table
IPv6 unicast routing	IPv6 static routing, RIPng, OSPFv3, BGP4+, IS-ISv6, PBRv6, VRFv6, Packet–based load balancing and flow-based load balancing, 6000 IPv6 routing table
IPv6 feature	ND(Neighbor Discovery), 10000 ND entries, ND snooping, 6 over 4 manual tunnel, 6 to 4 auto tunnel, ISATAP, IPv4 over IPv6 tunnel, IPv6 over IPv6 tunnel, GRE tunnel (4 over 6), GRE tunnel (6 over 6), IPv6 extender option head, Manually configure local address, Automatically create local address, 0-64 bit mask, 65-128 bit mask
Multicast routing	IGMPv1/v2/v3, MLDv1/v2, PIM-DM, PIM-SM, PIM-SSM, PIM-DMv6, PIM-SMv6, MSDP, MCE, IGMP proxy, MLD proxy, Multicast static routing, 8000 IPv4 multicast routing table, 4000 IPv6 multicast routing table
DHCP	DHCP server/relay/client, DHCPv6 server/relay/client, DHCP option 43/82/138
MPLS	MPLS labels and forwarding, LSP, LDP, Inter-domain LDP LSP
MPLS L3 VPN	BGP VPN, IS-IS VPN, OSPF VPN
BFD	Single-hop BFD, BFD for IPv4 static routes/OSPF/IS-IS/BGP4/VRRP/MPLS/PBR, BFD for IPv6 static routes/OSPFv3/IS-ISv6/BGP4+/VRRPv6/PBRv6
DLDP	DLDP for IPv4 static routes/OSPF/BGP4/VRRP/PBR
LLDP	IEEE802.1AB 2005, ANSI/TIA-1057, LLDP, LLDP-MED, LLDP-PoE
RLDP	Uni-directional link detection, Bi-directional forwarding detection, Downlink loop detection
VSU	9 VSU(Virtual Switch Unit) stacked members, 80Gbps maximum stacking bandwidth with service port VSL connection, Traffic balancing
VRRP	VRRPv3, VRRP+
REUP	REUP(Ruijie Rapid Ethernet Uplink Protection Protocol) for dual uplink backup, VLAN load balancing
GR	GR for RIP/OSPF/IS-IS/BGP/MPLS L3 VPN/LDP
RNS	RNS test for ICMP/DNS/TCP, Track support for RNS
Stream classification	Classification based on IEEE802.1p/DSCP/TOS
Shaping	Rate-limit on ingress/egress traffic on interface
Congestion avoidance	RED, WRED, Tail drop
Congestion management	SP, WRR, DRR, WFQ, SP+WFQ, SP+WRR, SP+DRR, 8 queue priorities per port
ACL entries	3500 IPv4/v6 rules
ACL type	Standard IP ACL, Extended IP ACL, MAC-extended ACL, Time-based ACL, Expert ACL, ACL80, IPv6 ACL, SVI router ACL, ACL logging, ACL counter, ACL remark, ACL redirection, Security channel, Protected port, Port security
ARP security	ARP check, DAI, Trusted ARP, ARP trustworthiness detection, Gateway-targeted ARP spoofing prevention, ARP rate-limit,
Attack defense	CPP(CPU Protection Policy), NFPP(Network Foundation Protection Policy) guard for ARP/IP/ICMP/DHCP/DHCPv6/ND/Self-defined attack, URPF
IP	IP source guard v4/v6, 3500 IPv4 source guard user capacity, 1500 IPv6 source guard user capacity
DHCP	DHCP snooping, DHCPv6 snooping, DHCP snooping on option 82
AAA	Local, RADIUS, RADIUS v6, TACACS+
IEEE802.1X	IEEE802.1X port/MAC based authentication, Dynamic VLAN and ACL assignment, MAC authentication bypass
Web portal	Ruijie 1st-Gen and 2nd-Gen portal authentication, Portal authentication/accounting, Portal detection and escape
Login	CLI, Console, Telnet, Telnet for IPv6, SSH v1.5/v2.0, SSH for IPv6, SCP, SNMP-based NMS, Web-based UI, Fast deploy(Ruijie Cloud App), Cloud management
File	Multiple boot configuration, Multiple firmware
Network	Ping(v4/v6), Traceroute(v4/v6), sFlow, SNMPv1/v2c/v3, HTTP, HTTPS, RMON(1,2,3,9), CWMP(TR069), Syslog, MIB,
Application	DNS client v4/v6, TFTP Server/Client, TFTP Client v6, FTP Server/Client, FTP Server/Client v6, NTP Server/Client, NTP Server/Client v6, SNTP, EEE(IEEE802.3az), OpenFlow v1.0, OpenFlow v1.3, Hot patch, Z-PoE (Non-stop PoE)
Mirroring	Many-to-one mirroring, One-to-many mirroring, Flow-based mirroring, Over devices mirroring, VLAN-based mirroring, VLAN-filtering mirroring, AP-port mirroring, SPAN, RSPAN, ERSPAN
Hardware monitoring	Power supply monitoring, Fan status and alarm monitoring

RG-S5750C-28GT4XS-H : 28 10/100/1000BASE-T ports, 4 100/1000BASE-X SFP ports (combo), 4 1G/10GBASE-X SFP+ ports, 2 extension slots, 2 modular power slots, required to purchase at least 1 power module

Data sheet Ruijie RG-S5750-H Switch Series
