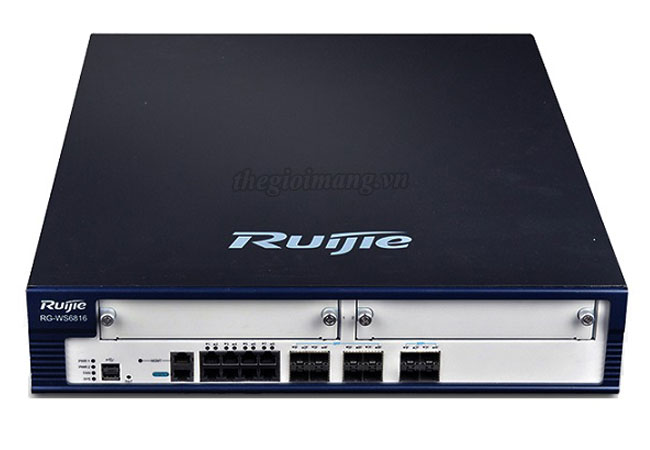

Wireless Access Controller Ruijie RG-WS6816 :
Thiết bị Wireless Controller Ruijie RG-WS6816
Model | Ruijie RG-WS6816 |
Service Ports | • 8 1000BASE-T/1000BASE -X ports (combo) • 4 1G/10G BASE-X SFP+ ports • 2 expansion slots |
Management Ports | • 1 console port • 2 USB ports • 1 10/100M MGMT port |
Performance | |
Switching Capacity | • N/A |
Packet Forwarding Rate | • N/A |
Default Number of Manageable APs | • 128 |
Maximum Number of Manageable APs | • 3,200 APs or 6,400 wall APs (with license upgrade) |
Maximum Number of Configurable APs | • 16K |
Maximum Number of Clients | • 80K |
802.11 Performance | • 48Gbps |
Maximum Number of Clients Supported by the Built-in Portal | • 7500 |
ACL | • 512K |
Number of Wireless Users | • 80K |
MAC Address Table | • 128K |
Local Authentication | • 300 wireless clients |
ARP Table | • 96K |
IPv6 Neighbor Table | • 10K |
Inter-AC Roaming Switch Time | • ≤50ms |
LAN | |
802.1Q VLAN | • Support |
QinQ | • N/A |
ACL | • Standard IP ACL, Extended IP ACL, MAC-extended ACL, Expert ACL |
QoS | • N/A |
WLAN | |
LAN Protocols | • ARP, VLAN, 802.1p, 802.1q, 802.1d, 802.1w, 802.1s |
802.11 LAN Protocols | • 802.11, 802.11b, 802.11a, 802.11g, 802.11d, 802.11h, 802.11w, 802.11k, 802.11r, 802.11i, 802.11e, 802.11n, 802.11ac, 802.11ax |
Pre-AX | • Support |
CorrectLink | • Support |
AirReorder | • Support |
CAPWAP | • Layer 2/Layer 3 network topology between an AP and AC • Enable an AP to automatically discover an accessible AC • Enable an AP to automatically upgrade software version from an AC • Enable an AP to automatically download configurations from an AC • Network Address Translation (NAT) traversal |
Roaming | • Intra-AC roaming, Inter-AC roaming |
Forwarding | • Local forwarding, Centralized forwarding |
Wireless QoS | • AP-based bandwidth control, WLAN-based bandwidth control, User-based static and smart speed control, Fair balancing |
User Isolation | • AC-based user isolation • AP-based user isolation • WLAN-based user isolation |
Reliability | • Fast switching between 2 ACs, Multiple ACs redundancy (1:1 A/A and A/S, N:1), Multiple ACs clustering (N:N), Remote Intelligent Perception Technology (RIPT), Service upgrade |
STA Management | • AP-based STA access control, SSID-based • STA access control, AP-based load balancing, AP traffic based load balancing, 5G priority access, RSSI threshold |
STA RSSI Threshold | • 0 to 100 |
STA Idle Timeout | • 60 to 86,400 seconds |
STA Average Data Rate Threshold | • 8 to 819,200 with the accuracy of 8Kbps |
Adjusting Transmit Power of Beacon and Probe Response | • Support |
Offline Syslog | • Support |
Security | |
IPv4/v6 Security | • Web authentication, 802.1x authentication (EAP-PEAP, EAP-SIM, EAP-MD5, EAP-TLS, EAP-TTLS, PEAP-MSCHAPv2, EAP-FAST, EAP-AKA), MAC address authentication |
PPSK | • N/A |
Virtual AP | • Support |
Virtual AC | • Support |
802.11 Security and Encryption |
• Multiple SSIDs, SSID hiding, 802.11i-compliant PSK authentication, WPA and WPA2, WEP (WEP/WEP128), WAPI, TKIP, CCMP, Protection against ARP spoofing |
AAA | • IEEE 802.1X |
CPP | • Support |
NFPP | • Support |
WIDS/WIPS | • Support |
Internet Protocols | |
IPv4 Protocols | • Ping, Traceroute, DHCP Server, DHCP Client, DHCP Relay, DHCP Snooping, DNS Client, NTP, Telnet, TFTP Client |
IPv6 Protocols | • DNSv6 Client, DHCPv6 Relay, DHCPv6 Server, TFTPv6 Client, FTPv6 Server, FTPv6Client, IPv6 CAPWAP, ICMPv6, IPv6 Ping, IPv6 Traceroute, Manual tunnel, automatic tunnel, Manual configuration address, automatic local address |
IPv4 Routing | • Static routing, OSPF |
IPv4 Routing Table Capacity | • 8K |
IPv4 Static Routing Table Capacity | • 1K |
IPv6 Routing Table Capacity | • 1K |
IPv6 Static Routing Table Capacity | • 1K |
Management | |
Network Management | • SNMP v1/v2c/v3, Web management, Syslog |
Network Management Platform | • Web management (Smart-web), RG-SNC management, Heat Map diagram |
WIS Integration | • Support |
User Access Management | • Login via console port • Login via Telnet • Login via SSH • Upload to FTP |
Dimensions (W × D × H) (mm) | • 440 × 560 × 88.1 |
Rack Height | • 2RU |
Weight | • 19kg |
Installation Mode | • 19-inch rack |
Power Supply | • Support up to 2 power supply modules (sold separately) 100VAC to 240VAC, 50Hz to 60Hz |
Power Consumption | • <100W |
EMC Standard | • GB9254-2008, CLASS A |
Security Standard | • GB4943-2011 |
Temperature | • Operating Temperature: 0ºC to 45ºC • Storage Temperature: -40ºC to 70ºC |
Humidity | • Operating Humidity: 10% to 90%RH (non-condensing) • Storage Humidity: 5% to 95%RH (non-condensing) |
Operating Altitude | • 0 to 3,000m |
RG-WS6816 : WS Series Wireless Controller, 8 1000BASE-T/1000BASE-X ports (combo), 4 1G/10GBASE-X SFP+ ports, 2 Expansion Slots, support dual redundant power supply, 128 APs License by default, maximum 3,200 APs or 6,400 Wall APs License.
