Model	XS-S1960-48GT4SFP-H
Ports
10/100/1000BASE-T	48
1000M SFP	4
Power over Ethernet
PoE	n/a
PoE/PoE+ Enabled Ports	n/a
H-PoE Enabled Ports	n/a
IEEE802.3bt (H-PoE)	n/a
IEEE802.3af (PoE)	n/a
IEEE802.3at (PoE+)	n/a
PoE Power Budget	n/a
Physical
Packet Buffer	12Mbit
CPU Memory	512MB
Flash	256MB
Dimensions(WxDxH)	440x260x43.6mm
Unit Weight	4kg
Power Supply
Type	Internal
Frequency	50/60Hz
AC Voltage	100~240V
AC Current	1.5A
Rated HVDC voltage	240V DC
Maximum HVDC voltage	192~290V DC
Maximum Power Rating	40W
Cooling	Fan
Certifications
Safety	EN 60950-1
EMC	EN 300 386
Emissions	EN 55032
Immunity Generic	EN 55024
ESD	EN 61000-4-2
Radiated	EN 61000-4-3
EFT/Burst	EN 61000-4-4
Surge	EN 61000-4-5
Conducted	EN 61000-4-6
Power frequency magnetic field	EN 61000-4-8
Voltage dips and interruptions	EN 61000-4-11
Harmonics	EN 61000-3-2
Flicker	EN 61000-3-3
RoHS	✓
EEE	✓
Operating Temperature	0 ℃ ~ 45 ℃
Storage Temperature	-40 ℃ ~ 70 ℃
Operating Humidity	10%~90% RH
Storage Humidity	5%~95% RH
Operating Altitude	-50m ~ 5000m
MTBF(hours)	524960
Warranty	3-Year Warranty Free of Charge
Package Contents	Ruijie XS-S1960-H Series Switch Power Cord Mounting Kit Rubber Feet Console Cable RJ45-RJ45 UTP Cable Grounding Cable Quick Start Guide
Performance
Switching Capacity	104Gbps
Forwarding Rate	78Mpps
ARP Table Size	1K
MAC Table Size	16K
L2 Switching
STP	✓
RSTP	✓
MSTP	✓(64 instances)
Port Grouping	✓(LACP)
VLAN	✓(IEEE802.1Q/MAC VLAN/Private VLAN/Protocol VLAN/Voice VLAN)
GVRP	✓
IGMP Snooping	✓((v1/v2/v3)/SGVL/IVGL/IGMP filter/IGMP fast leave)
Jumbo Frame	9KB
QinQ	✓
G.8032/ERPS	✓
L3
IPv4 Routing	Static/RIP/OSPFv1/v2/VRRP
IPv6 Routing	Static/RIPng/OSPFv3/ND(Neighbor Discovery)/VRRPv3/VRRP+
Ping	✓ (IPv4 and IPv6)
Traceroute	✓ (IPv4 and IPv6)
DHCP	✓ (Server/Client/Relay)
ARP Features	✓(ARP Proxy/Trusted ARP/ARP-Based IP Guard/Gratuitous ARP/ARP-Check/)
Reliability
VSU	✓ (up to 4 members)
GR	✓
REUP	✓
RLDP	✓
DLDP	✓
Security
CPP	✓
NFPP	✓
SSH	✓
SSL	✓
IEEE802.1X	✓
Port Security	✓
Radius	✓
TACACS+	✓
DAI	✓
IP-MAC Binding	✓
ACL	✓ (IPv4 and IPv6, Standard IP ACL, Extended IP ACL, MAC-extended ACL, Time-based ACL, Expert ACL, ACL80, IPv6 ACL, SVI router ACL, ACL logging, ACL counter, ACL remark, ACL redirection, Security channel, Protected port)
IP Source Guard	✓ (IPv4 and IPv6)
DHCP Snooping	✓ (IPv4 and IPv6)
QoS
Stream classification	✓ (Classification based on IEEE802.1p/DSCP/TOS)
Shaping	✓ (Rate-limit on ingress/egress traffic on interface)
Congestion avoidance	✓ (RED, WRED, Tail drop)
Congestion management	✓(SP, WRR, DRR, WFQ, SP+WFQ, SP+WRR, SP+DRR, 8 queue priorities per port)
Management
Web User Interface	✓
HTTP/HTTPS	✓
Ruijie Cloud Management	✓
RG-SNC Management	✓
Command Line Interface	Telnet/Console
SNMP	✓
Smart+ for CCTV	✓(Auto Smart Deployment/Remote Reboot Helper)
SYSLOG	✓
NTP	✓
DNS	✓
SPAN	✓
RSPAN	✓
ERSPAN	✓
Public MIBs	✓
Private MIBs	✓
RMON	✓(1/2/3/9)
sFlow	✓
Firmware Upgrade	✓
Port Mirroring	✓

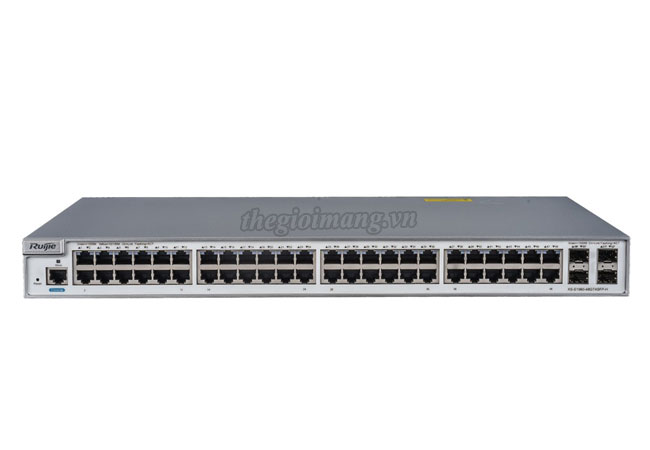

XS-S1960-48GT4SFP-H : Layer 2+ Managed Switch, 48 10/100/1000BASE-T ports, 4 1G SFP ports (non-combo); Managed by Ruijie Cloud, Web-UI and CLI. Bundled with Ruijie Cloud Service lifetime license.

Data sheet Ruijie XS-S1960-H Switch Series
