Trang chủ > Sản phẩm > Thiết bị tường lửa Firewall > Firewall SonicWall > SonicWall NSA 5700 Total Secure - Advanced Edition 1Yr (02-SSC-3919)

SonicWall NSA 5700 Total Secure - Advanced Edition 1Yr (02-SSC-3919)

02-SSC-3919 - Tường lửa Firewall SonicWall NSA 5700 Total Secure - Advanced Edition 1Yr (Bao gồm các license: Capture Advanced Threat Protection with RTDMI Technology, Gateway Anti-Virus, Intrusion Prevention and Application Control, Content Filtering Service, Comprehensive Anti-Spam Service, Network Visibility, 24x7 Support, Cloud Management, Cloud-based Reporting for 7 Days and optional Premier Support.)
  • Giá bán : Liên hệ để có giá tốt
  • Tình trạng : Còn hàng


Thiết bị tường lửa Firewall SonicWall NSA 5700 Total Secure - Advanced Edition 1Yr (02-SSC-3919)

Model SonicWall NSA 5700 (02-SSC-3919)
Operating system SonicOS 7
Interfaces 6 x 10G/5G/2.5G/1G (SFP+); 2x 10G/5G/2.5G/1G (Cu); 24 x 1GbE Cu 2 USB 3.0, 1 Console, 1 Mgmt. port
Storage 128GB
Expansion Storage Expansion Slot (Up to 1TB)
VLAN interfaces 512
Access points supported (maximum) 512
Firewall/VPN Performance
Firewall inspection throughput 28 Gbps
Threat Prevention throughput 15 Gbps
Application inspection throughput 18 Gbps
IPS throughput 17 Gbps
Anti-malware inspection throughput 16 Gbps
TLS/SSL inspection and decryption throughput (DPI SSL) 7 Gbps
IPSec VPN throughput 15 Gbps
Connections per second 228,000
Maximum Connections (SPI) 5,000,000
MAX DPI-SSL Connections 350,000
Maximum connections (DPI) 3,500,000
VPN
Site-to-site VPN tunnels 6,000
IPSec VPN clients (max) 2000 (4000)
SSL VPN licenses (max) 2 (1500)
Encryption/Authentication DES, 3DES, AES (128, 192, 256-bit)/MD5, SHA-1, Suite B Cryptography
Key exchange Diffie Hellman Groups 1, 2, 5, 14v
Route-based VPN RIP, OSPF, BGP
Certificate support Verisign, Thawte, Cybertrust, RSA Keon, Entrust and Microsoft CA for SonicWall-to-SonicWall VPN, SCEP
VPN features Dead Peer Detection, DHCP Over VPN, IPSec NAT Traversal, Redundant VPN Gateway, Route-based VPN
Global VPN client platforms supported Windows 8.0 32/64-bit, Windows 8.1 32/64-bit, Windows 10 Microsoft® Windows Vista 32/64-bit, Windows 7 32/64-bit,
NetExtender Microsoft Windows Vista 32/64-bit, Windows 7, Windows 8.0 32/64-bit, Windows 8.1 32/64-bit, Mac OS X 10.4+, B5Linux FC3+/Ubuntu 7+/OpenSUSE
Mobile Connect Apple® iOS, Mac OS X, Google® Android™, Kindle Fire, Chrome, Windows 8.1 (Embedded)
Security services
Deep Packet Inspection services Gateway Anti-Virus, Anti-Spyware, Intrusion Prevention, DPI SSL
Content Filtering Service (CFS) HTTP URL, HTTPS IP, keyword and content scanning, Comprehensive filtering based on file types such as ActiveX, Java, Cookies for privacy, allow/forbid lists
Firewall
Comprehensive Anti-Spam Service Supported
Application Visualization Yes
Application Control Yes
Capture Advanced Threat Protection Yes
Networking
IP address assignment Static (DHCP, PPPoE, L2TP and PPTP client), Internal DHCP server, DHCP relay
NAT modes 1:1, 1:many, many:1, many:many, flexible NAT (overlapping IPs), PAT, transparent mode
Routing protocols BGP4, OSPF, RIPv1/v2, static routes, policy-based routing
QoS Bandwidth priority, max bandwidth, guaranteed bandwidth, DSCP marking, 802.1e (WMM)
Authentication LDAP (multiple domains), XAUTH/RADIUS, TACACS+, SSO, Radius accounting NTLM, internal user database, 2FA, Terminal Services, Citrix, Common Access Card (CAC)
Local user database 2500
VoIP Full H323-v1-5, SIP
Standards TCP/IP, UDP, ICMP, HTTP, HTTPS, IPSec, ISAKMP/IKE, SNMP, DHCP, PPPoE, L2TP, PPTP, RADIUS, IEEE 802.3
Certifications (pending) FIPS 140-2 (with Suite B), UC APL, IPv6 (Phase 2), ICSA Network Firewall, ICSA Anti-virus, Common Criteria NDPP (Firewall and IPS)
Common Access Card (CAC) Supported
High availability Active/Passive with stateful synchronization
Hardware
Form factor 1U Rack Mountable
Fans 2
Power supply 350W
Maximum power consumption (W) 128.1
Redundant Power Supply 100-240 VAC, 50-60 Hz
Total heat dissipation 436.82 BTU
Dimensions 43 x 46.5 x 4.5 (cm) 16.9 x 18.1 x 1.8 in
Weight 7.8 Kg
WEEE weight 9.6 Kg
Shipping weight 13.5 Kg
Environment (Operating/Storage) 32°-105° F (0°-40° C)/-40° to 158° F (-40° to 70° C)
Humidity 0-90% R.H non-condensing
Regulatory
Regulatory model numbers 1RK53-116
Major regulatory compliance FCC Class A, CE (EMC, LVD, RoHS), C-Tick, VCCI Class A, MSIP/KCC Class A, UL, cUL, TUV/GS, CB, Mexico CoC by UL, WEEE , REACH, ANATEL, BSMI

02-SSC-3919 : SonicWall NSA 5700 Total Secure - Advanced Edition 1Yr

(Bao gồm các license: Capture Advanced Threat Protection with RTDMI Technology, Gateway Anti-Virus, Intrusion Prevention and Application Control, Content Filtering Service, Comprehensive Anti-Spam Service, Network Visibility, 24x7 Support, Cloud Management, Cloud-based Reporting for 7 Days and optional Premier Support.)

  • Recommended for 2500 or More User Network
  • Threat Prevention Throughput: 15 Gbps
  • Site-to-Site VPN Tunnels: 6,000
  • Concurrent Sessions: 5,000,000

Data sheet SonicWall Gen 7 NSa Series

Sản phẩm liên quan

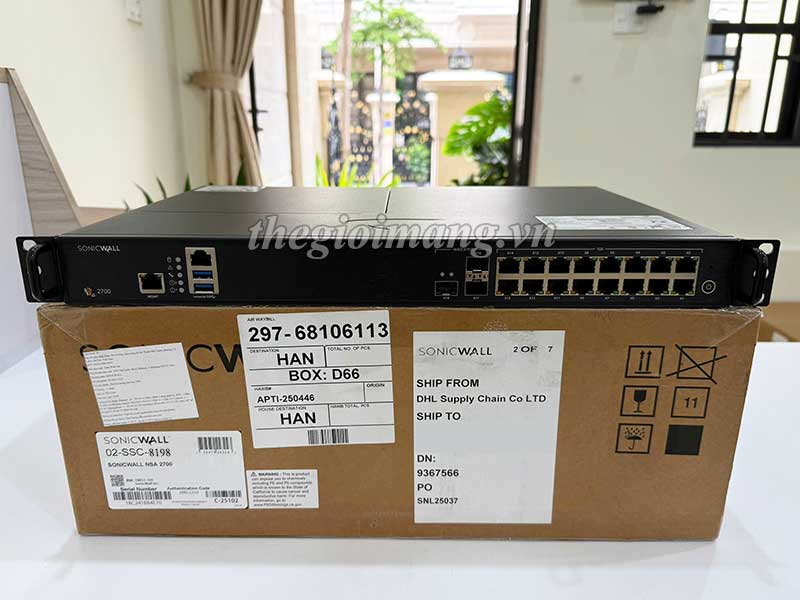

SonicWall NSA 2700...
02-SSC-8198 - Thiết bị tường lửa Firewall SonicWall...

Liên hệ để có giá tốt

SonicWall NSA 3700...
02-SSC-8718 - Thiết bị tường lửa Firewall SonicWall...

Liên hệ để có giá tốt

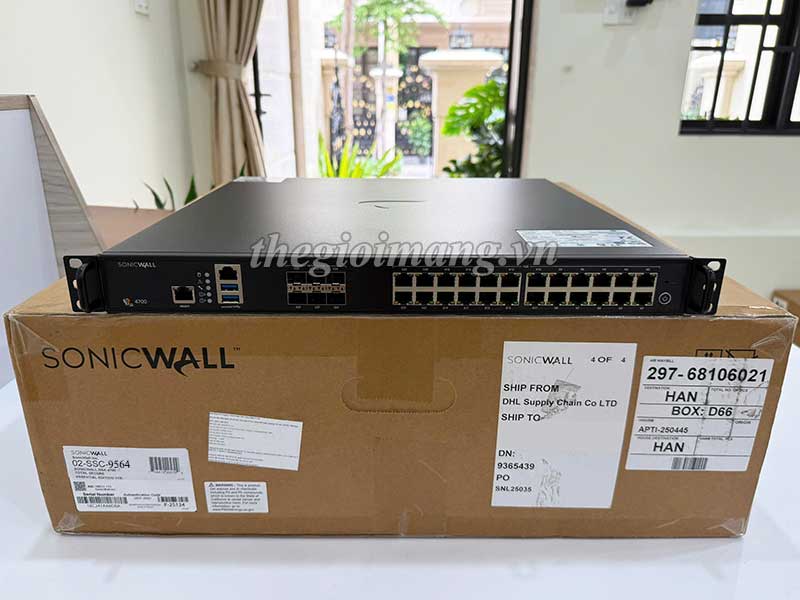

SonicWall NSA 4700...
