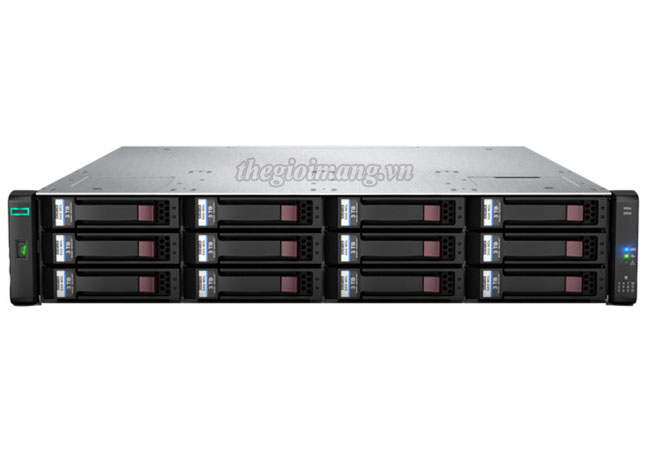

Thiết bị lưu trữ HPE MSA 2050 SAS Dual Controller LFF Storage (Q1J28A)
SKU | Q1J28A |
---|---|
HPE MSA 2050 SAS Dual Controller LFF Storage | |
Device Type | Hard drive array |
Enclosure Type | Rack-mountable - 2U |
Chassis | |
Installed Devices / Modules Qty | 0 |
Supported Devices / Modules Qty | 12 |
Supported Drives | SAS-3 |
Storage | |
Max Supported Capacity | 120 TB |
HDD Array External Interface | SAS 12GB/s |
Maximum LUNs | 512 |
Storage Controller | |
Type | RAID (SAS-3) |
Installed Qty | 2 |
Interface Type | SAS 12Gb/s |
Data Transfer Rate | 1.2 GBps |
RAID Level | RAID 1, 5, 6, 10 |
Expansion / Connectivity | |
Expansion Bays | 12 (total) / 12 (free) - 3.5" LFF |
Interfaces | 8 x SAS 12Gb/s | 2 x mini-USB 2.0 (management) | 2 x Ethernet 1000Base-T (management) - RJ-45 | 2 x SAS |
System Requirements | |
OS Required | HP-UX, Red Hat Linux, Apple MacOS X, Microsoft Windows Server 2016, Microsoft Windows Hyper-V Server |
Systems Insight Manager (SIM) | ✔ |
Power | |
Power Device | 2 x internal power supply - hot-plug |
Max Supported Qty | 2 (Redundancy 1+1) |
Power Consumption Operational | 344 Watt |
Dimensions & Weight (W x D x H) | 17.6 x 22.5 x 3.5 in / 40.56lbs |
Environmental Parameters |
Min Operating Temperature 41 °F |
Drive Capacities | |
SSF SSDs | 400GB, 800GB, 1.6TB, 3.2TB |
SFF HDDs | 15K: 300GB, 600GB, 900GB 10K: 300GB, 600GB, 900GB, 1.2TB, 1.8TB 7.2K: 1.0TB, 2.0TB |
SEDs | 10K SFF: 1.2TB 7.2K LFF: 4TB |
Data Sheet HPE MSA 2050 SAN Storage
HPE MSA 2050 SAS Dual Controller LFF Storage (Q1J28A)
