SKU | Q2R94A |
---|---|

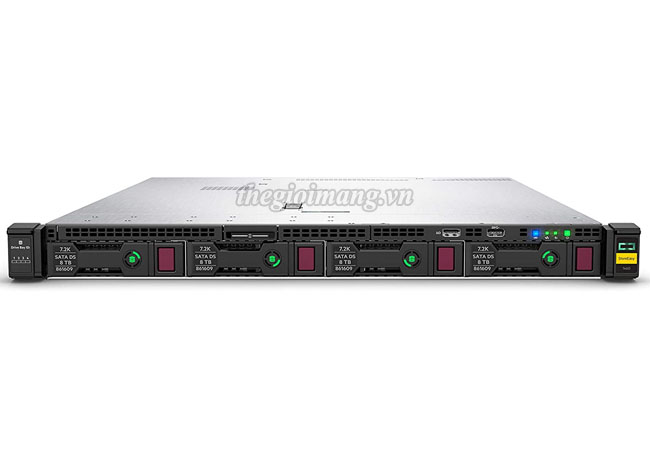

HPE STOREEASY 1460 32TB SATA STORAGE |
|
Processor | Intel® Xeon-Bronze 3104 (1.7GHz/6-core/85W) Processor, 2nd processor optional |
Memory Type | DDR4-2666 CAS-19-19-19 Registered (RDIMM) |
Memory (standard) | 8GB (1 x 8GB) |
DIMM Sockets | 24 |
NIC Ports | 4 |
NIC Controller | 1Gb Ethernet 4-port |
Expansion Slots | 2 x PCIe; optional secondary riser with one additional PCIe slot |
Capacity | 32 TB |
Protocol supported | SMB, NFS, iSCSI over Ethernet, FTP/S, HTTP/S |
Storage Controller | HPE Smart Array P408i-a SR Gen10 (8 Internal Lanes 2GB Cache/ SmartCache) 12G SAS Modular Controller for data and OS drives |
RAID | RAID 0, 1, 5, 6, 10, 50, 60, 1 ADM, 10 ADM (Advanced Data Mirroring) on Smart Array P408i - Not all RAID levels recommended or supported on HPE StoreEasy |
Internal SAS connectors | 8 SAS lanes across 2 x4 internal Mini-SAS ports |
HDD Tray hot-plug bays | 4 LFF (3.5") hot-plug bays in front |
External Storage support | Support for external D3X10 and D6020 Disk Enclosures requires optional Smart Array controller with external port |
Max Internal Capacity (raw) | 67.2TB (with optional rear cage and 28 x 2.4TB SFF HDDs) |
Max External Capacity | Support the D3X10 or D6020 Disk Enclosure product families. A Smart Array controller with external ports must be added to the HPE StoreEasy 1460 to add external Disk Enclosures. The maximum number of disk enclosures supported is 8, a limit imposed by the disk enclosures and controllers used, and not specifically StoreEasy. |
Drive description | SFF/LFF SAS/SATA, depending on model |
Compatible operating systems | Microsoft® Window®, macOS, Linux®, Unix supported Pre-installed on all HPE StoreEasy models: Windows Storage Server 2016 Standard Edition Operating System |
Management features | HPE iLO, HPE Smart Storage Administrator, Windows Server Manager |
Power Supply Hot Plug | 1 x 500 Watts Platinum, hot-plug (2nd redundant power supply optional) |
Form Factor | 1U Rack FF |
Minimum dimensions (W x D x H) | 4.29 x 43.46 x 60.76 cm |
