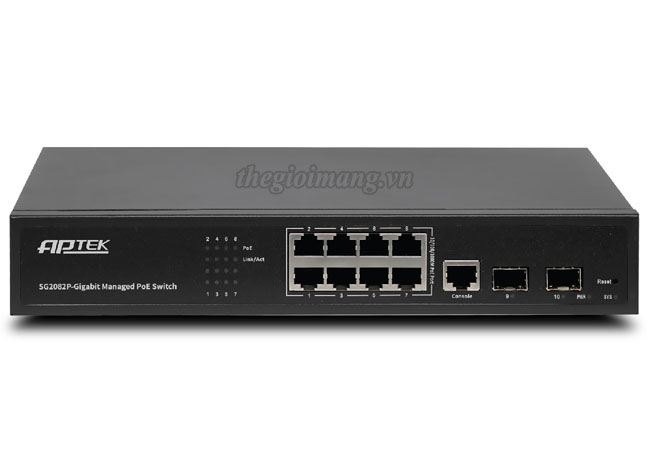

Thiết bị chuyển mạch APTEK SG2082P
Product |
SG2082P |
Port |
- 8 x Gigabit Ethernet support PoE/PoE+
- 2 x Gigabit SFP ports
|
Nguồn |
- Voltage: 100 ~ 240VAC
- PoE Power Budget: 120W
|
LED Indicators |
- Hiển thị tình trạng kết nối của các port Lan. PoE và nguồn điện chính
|
Kích thước |
- 270mm x 180mm x 45mm (L x W x H)
|
Phần mềm |
Management |
Management
- Command Line Interface via Telnet/ SSH / Console
- HTTP Web User Interface
- SNMP v1/v2c/v3
Diagnostics
- CPU/ RAM/ Port Utilization
- Syslog
- Port Monitoring
- Ping
- Port-based Cable test
|
Tính năng nâng cao |
VLAN
- IEEE 802.1Q VLAN: Port-based / Tag-based
- General VLAN Registration Protocol
- Support Following Types of VLAN
- Voice VLAN
- Protocol VLAN
- MAC-based VLAN
- Management VLAN
PoE
- PoE Mode: Switch allocates sufficient power the PoE PD asked for, and dynamic distribute power to all devices
- Status: consumed power (mW, mA)
- Scheduling: support scheduling rule
- Security
- Storm Control:
- Broadcast, Unknow Multicast, Unknow Unicast
- DoS Defend
- Protect Port
- Access Control List: MAC/ IPv4 / IPv6
- Port Security
- ARP Inspection
- DHCP Snooping with Option 82
Link Aggregation
- Static Manual Aggregation
- LACP Dynamic Aggregation
QoS
- Class of Service
- 802.1p CoS
- DSCP
- Source IP, Destination IP, Port Number
- Queue Setting
- Rate Limit
AAA
- 802.1x port authentication
- External AAA server using Radius, Tacacs
|
Thông số khác |
Môi trường |
Môi trường
- Operating: 0 ~ 55 °C
- Storage: 0 ~ 70 °C
Độ ẩm hoạt động 10% ~ 90% (Non-condensing)
|
