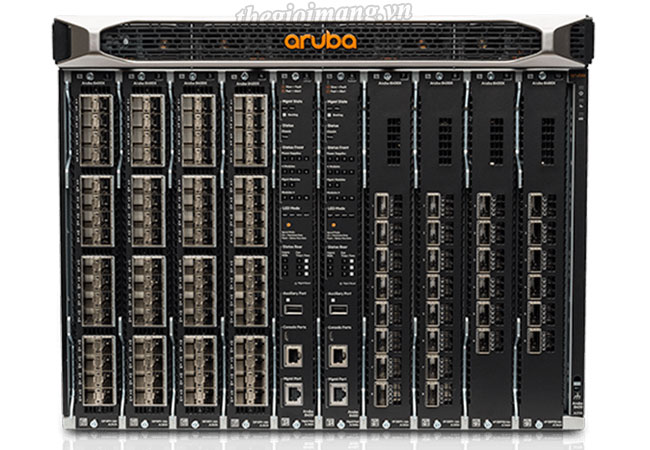

Thiết bị mạng Switch Aruba 8400 8 slot chassis Bundle (JL376A)
| Product Name | Aruba 8400 1x Mgmt Mod 3x PS 2x 8400X Fabric Mod 1x 32p 10G Mod and 1x 8p 40G Mod Bundle (JL376A) |
| Line modules and slots |
Supports a maximum of 256 10GbE (SFP/SFP+) ports, or 64 40GbE (QSFP+) ports, or 48 ports 40/100GbE (QSFP28) combination Eight slots for line modules |
| Module VoQ |
1.5GB for JL363A and JL365A 3GB for JL366A |
| Additional ports and slots |
2 Management Module slots 3 Fabric Module slots 4 Power Supply slots |
| Power supplies |
4 power supply slots 2 minimum power supply required for a fully loaded chassis (or with 8 Line Modules) |
| Fan tray |
Included with JL376A |
| Physical characteristics |
Dimensions: 17.4(w) x 26(d) x 13.8(h) in. (44.1 x 66.0 x 35.1 cm) (8U height) -Empty configuration weight: 76 lbs (34 kg) -JL376A weight: 164 lbs (74 kg) -Full configuration weight: 241 lbs (109 kg) |
| Reliability |
99.999% |
| Mounting and enclosure |
Mounts in an EIA standard 19-inch rack or other equipment cabinet (hardware included); horizontal surface mounting only |
| Environment |
Operating: 32°F to 104°F (-0°C to 40°C) with 5% to 95%, non-condensing Non-Operating: -40°F to 158°F (-40°C to 70°C) with 5% to 95%, non-condensing Max Operating Altitude: Up to 10,000ft (3.048 Km) Max Non-Operation Altitude: Up to 30,000ft (9.144 Km) Acoustics: Sound Power (LWAd) 7.3 Bel, Sound Pressure (LpAm) (Bystander) 55.6 dB |
| Electrical characteristics |
Frequency: 47-63 Hz AC voltage: 90 - 140/180 - 264 VAC DC voltage Current: 16 A Power output: 2750 W |
| Management |
SNMP, RJ-45 serial; USB micro USB console; RJ-45 Ethernet port |
| JL363A | Aruba 8400X 32-port 10GbE SFP/SFP+ with MACsec Advanced Module |
| JL365A | Aruba 8400X 8-port 40GbE QSFP+ Advanced Module |
| JL366A | Aruba 8400X 6-port 40GbE/100GbE QSFP28 Advanced Module |
| JL367A | Aruba 8400X 7.2Tbps Fabric Module |
| JL368A | Aruba 8400 Management Module |
| JL369A | Aruba X731 Fan Tray |
| JL370A | Aruba 8400 Fan for X731 Fan Tray |
| JL371A | Aruba 8400 1 Fan Tray and 6 Fans Bundle |
| JL372A | Aruba X382 54VDC 2700W AC Power Supply |
| JL373A | Aruba X464 4-post Rack Rail Kit |
| JL374A | Aruba X462 2-post Rack Rail Kit |
| J4858C | HPE X121 1G SFP LC SX Transceiver |
| J4859C | HPE X121 1G SFP LC LX Transceiver |
| J4860C | HPE X121 1G SFP LC LH Transceiver |
| J8177C | HPE X121 1G SFP RJ45 T Transceiver |
| J9281B | HPE X242 10G SFP+ to SFP+ 1m Direct Attach Copper Cable |
| J9283B | HPE X242 10G SFP+ to SFP+ 3m Direct Attach Copper Cable |
| J9285B | HPE X242 10G SFP+ to SFP+ 7m Direct Attach Copper Cable |
| J9150A | HPE X132 10G SFP+ LC SR Transceiver |
| J9151A | HPE X132 10G SFP+ LC LR Transceiver |
| J9153A | HPE X132 10G SFP+ LC ER Transceiver |
| J9152A | HPE X132 10G SFP+ LC LRM Transceiver |
| JL563A1 | Aruba 10GBASE-T SFP+ RJ45 30m Cat6A Transceiver |
| JH234A | HPE X242 40G QSFP+ to QSFP+ 1m Direct Attach Copper Cable |
| JH235A | HPE X242 40G QSFP+ to QSFP+ 3m Direct Attach Copper Cable |
| JH236A | HPE X242 40G QSFP+ to QSFP+ 5m Direct Attach Copper Cable |
| JL308A | Aruba 40G QSFP+ LC Bidirectional 150m MMF 2-strand Transceiver |
| JH231A | HPE X142 40G QSFP+ MPO SR4 Transceiver |
| JH233A | HPE X142 40G QSFP+ MPO eSR4 300M Transceiver |
| Q9G82A | Aruba 40G QSFP+ LC ER4 40km SMF Transceiver |
| JH232A | HPE X142 40G QSFP+ LC LR4 SM Transceiver |
| JL307A | Aruba 100G QSFP28 to QSFP28 3m Direct Attach Copper Cable |
| JL309A | Aruba 100G QSFP28 MPO SR4 100m 12-fiber MPO OM3 MMF Transceiver |
| JL310A | Aruba 100G QSFP28 LC LR4 10km SMF 2-strand Transceiver |
Aruba 8400 1x Mgmt Mod 3x PS 2x 8400X Fabric Mod 1x 32p 10G Mod and 1x 8p 40G Mod Bundle (JL376A)
Liên hệ để có giá tốt
