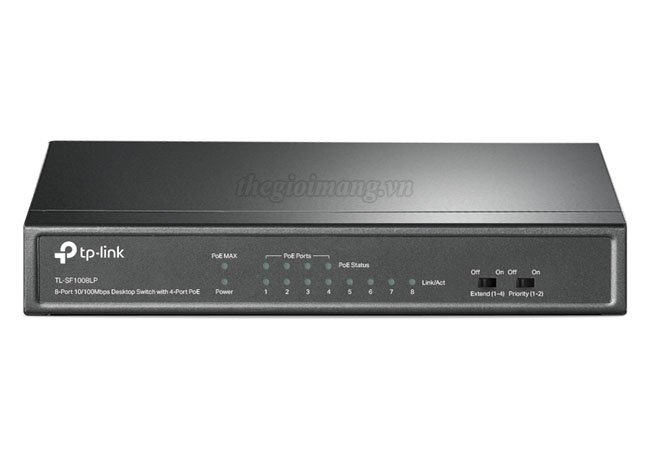

Switch TP-Link TL-SF1008LP

Switch TP-Link TL-SF1008LP - 8-Port 10/100Mbps Desktop Switch with 4-Port PoE ● Works with IEEE 802.3af compliant PDs ● Up to 250m range under Extend Mode ● PoE Power up to 41W for all PoE ports
  • Giá bán : Liên hệ để có giá tốt
  • Tình trạng : Còn hàng


Thiết bị chuyển mạch TP-Link TL-SF1008LP

Sản phẩm TL-SF1008LP
Standards IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3af
Network Ports 8 * 10/100 Mbps RJ45 ports with 4 PoE ports (port 1 to port 4)
Network Media (Cable) 10Base-T: UTP category 3, 4, 5 cable (maximum 100 m)
EIA/TIA-568 100 Ω STP (maximum 100 m)
100Base-TX: UTP category 5, 5e cable (maximum 100 m)
EIA/TIA-568 100 Ω STP (maximum 100 m)
PoE PoE Standard: IEEE 802.3af
PoE Port 1–4, up to 15.4 W per port
PoE Power Budget 41 W
Auto-Negotiation YES
Auto MDI/MDIX YES
PoE Power on RJ45 Power+: pin 3 & pin 6
Power -: pin 1 & pin 2
Max Power Consumption 2.2 W (220 V/50 Hz no PD connected)
47.1 W (220 V/50 Hz with 41 W PD connected)
Max Heat Dissipation 7.5 BTU/h (no PD connected)
160.61 BTU/h (with 41 W PD connected)
Forwarding Mode Store and Forward
Switch Capacity 1.6 Gbps
MAC Address Table 2k, Auto-learning, Auto-aging
Extend Mode YES
Priority Mode YES
Flow Control YES
Fanless YES
LED Power, Link/Act, PoE Status, PoE MAX
Dimensions 6.7 x 3.9 x 1.1 in. (171 x 98 x 27 mm)
Chứng chỉ FCC, CE
Environment Operating Temperature: 0°C to 40°C (32°F to 104°F)
Storage Temperature: -40°C to 70°C (-40°F to 158°F)
Operating Humidity: 10% to 90% RH, non-condensing
Storage Humidity: 5% to 90% RH, non-condensing

TP-Link TL-SF1008LP
8-Port 10/100Mbps Desktop Switch with 4-Port PoE

  • 8× 10/100 Mbps RJ45 ports
  • 4× PoE ports transfer data and power on individual cables
  • Works with IEEE 802.3af compliant PDs
  • Up to 250m data and power transmitting range under Extend Mode**
  • Priority Mode ensures high priority of ports 1–2 to guarantee the quality of sensitive application
  • Supports PoE Power up to 41 W for all PoE ports*
  • Plug and play with no configuration required
