Mô tả sản phẩm

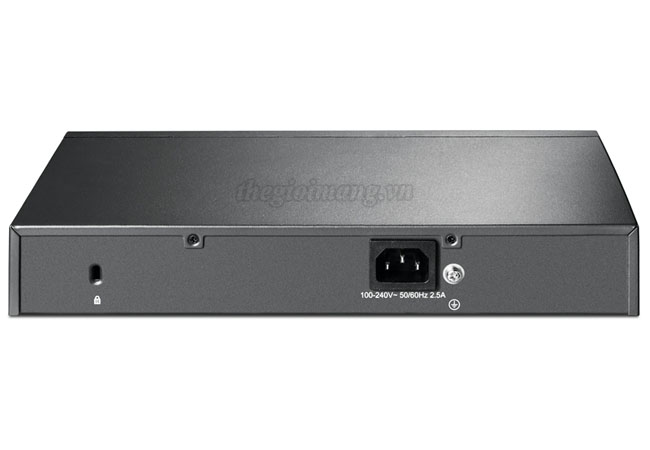

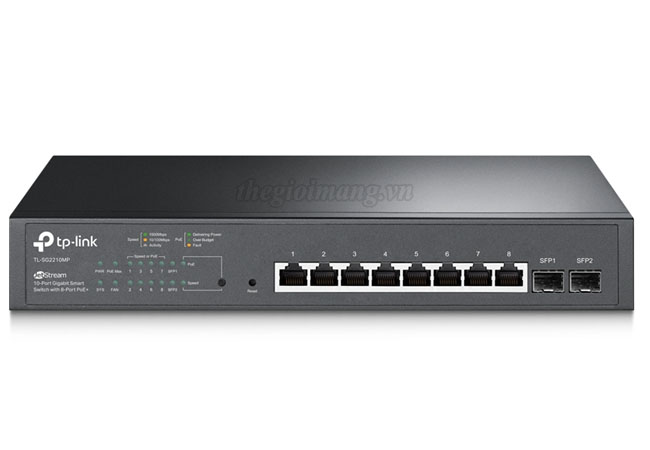

Thiết bị chuyển mạch TP-Link TL-SG2210MP

Sản phẩm	TL-SG2210MP V4
Interface	8 10/100/1000Mbps RJ45 Ports 2 Gigabit Combo SFP Slots
Flash	32 MB
DRAM	256 MB
PoE Standard	PoE Standard: 802.3 af/at PoE Ports: 8, up to 30 W PoE Power Budget: 150W
Performance
Switching Capacity	20 Gbps
Packet Forwarding Rate	14.88 Mpps
MAC Address Table	8K
Packet Buffer	4.1 Mbit
Transmission Method	Store and Forward
Number of IP Interfaces	16
Number of Static Routers	32 (IPv4, IPv6)
Jumbo Frame	10K
Physical & Environmet
Power Supply	53.5 VDC/1.31 A External Adapter
Max Power Consumption	74.4 W (220 V/50 Hz) (with 61 W PD connected)
Max Heat Dissipation	253.89 BTU/hr (220 V/50 Hz) (with 61 W PD connected)
Standby Power Consumption	5.1 W (220 V/50 Hz)
Dimensions (W x D x H)	8.2 × 4.9 × 1.0 in (209 × 126 × 26 mm)
Fan Quantity	Fanless
Installation	Desktop/Wall-Mounting
Operating Temperature	0 °C to 40 °C (32 °F to 104 °F)
Storage Temperature	-40 °C~70°C (-40°F~158°F)
Operation Humidity	10% to 90% RH, non-condensing
Storage Humidity	5% to 90% RH, non-condensing
Certification	CE, FCCC, RoHS

Xem thêm

Thông số kỹ thuật

TP-Link TL-SG2210MP
JetStream 10-Port Gigabit Smart Switch with 8-Port PoE+

150 W PoE Budget: 8× 802.3at/af-compliant PoE+ ports with a total power supply of 150 W^*.
Full Gigabit Ports: 8× gigabit PoE+ ports and 2× gigabit SFP Slots provide high-speed connections.
Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)^**, Centralized Cloud Management, and Intelligent Monitoring.
Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm Control, DHCP Snooping, 802.1X, Radius Authentication, and more.
Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.
