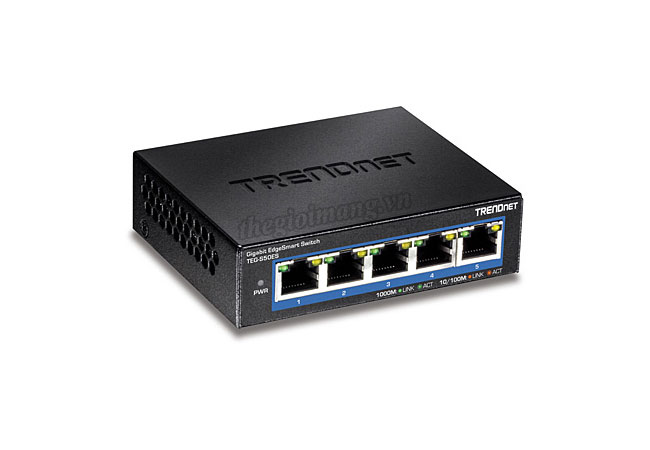

Thiết bị mạng Switch Trendnet TEG-S50ES
| Model |
TEG-S50ES |
| Device Interface |
- 5 x Gigabit ports
- LED indicators
- Reset button
|
| Data Transfer Rate |
- Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
- Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
- Gigabit Ethernet: 2000Mbps (full duplex)
|
| Performance |
- Switch fabric: 10Gbps
- RAM buffer: 125KB
- MAC Address Table: 2K entries
- Jumbo Frames: 9KB
- Forwarding rate: 7.44Mpps (64-byte packet size)
|
| Management |
- HTTP Web based GUI
- SNMP v1, v2c
- Cable diagnostic test
- Backup/Restore Configuration
- Upload Firmware
|
| Spanning Tree |
- IEEE 802.1d STP (spanning tree protocol)
- IEEE 802.1w RSTP (rapid spanning tree protocol)
|
| Link Aggregation |
- Static link aggregation (1 group)
|
| Quality of Service (QoS) |
- Port-based QoS
- 802.1p Class of Service (CoS)
- Bandwidth Control/Rate Limiting per port (Min. Limit: 8Kbps)
- Queue Scheduling: Strict Priority (SP), Weighted Fair Queueing (WFQ)
|
| VLAN |
- Port-based VLAN
- 802.1Q Tagged VLAN
- Up to 32 VLAN groups, ID Range 1-4094
- Private VLAN
- Asymmetric VLAN
- Voice VLAN (5 user defined OUIs)
|
| Multicast |
- IGMP Snooping v1/2/3
- Block unknown multicast source
- Up to 32 multicast groups
|
| Port Mirror |
|
| Storm Control |
- Broadcast (Min. Limit: 8Kbps)
- Multicast (Min. Limit: 8Kbps)
- Loopback Detection
|
| Special Features |
- Enable/disable 802.3az Power Saving
- Wall mountable
|
| Power |
- Input: 100 – 240V AC, 50/60Hz, 0.2A
- Output: 5V DC, 1A external power adapter
- Max consumption: 3.42W
|
| Fan / Acoustics |
|
| MTBF |
|
| Operating Temperature |
- 0° – 40° C (32° – 104° F)
|
| Operating Humidity |
|
| Dimensions |
- 100.5 x 82 x 28mm (3.95 x 3.22 x 1.1 in.)
|
| Weight |
|
| Certifications |
|
