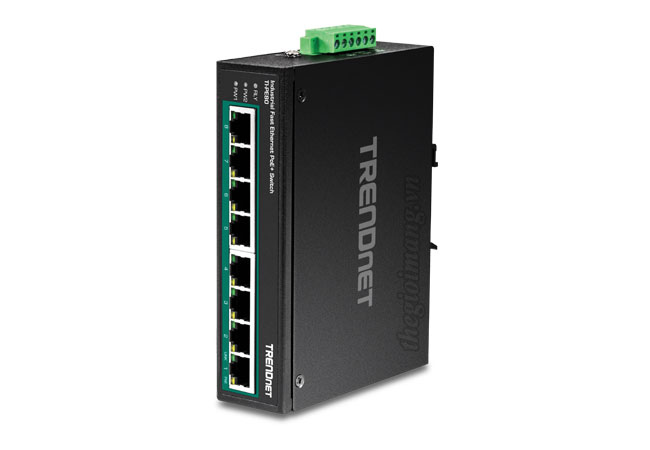

Thiết bị mạng Switch Trendnet TI-PE80
Model |
TI-PE80 |
Device Interface |
- 8 x Fast Ethernet PoE+ ports
- 6-pin removable terminal block
- LED indicators
- DIN-Rail mount
- Wall mount
- Grounding point
|
Data Transfer Rate |
- Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
- Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
|
Performance |
- Data RAM Buffer: 1MB
- Switching Fabric: 1.6Gbps
- MAC Address Table: 1K entries
- Forwarding rate: 1.19Mpps (64-byte packet size)
|
Special Features |
- Hardened components rated for extreme temperatures
- Dual redundant power inputs
- ESD 8KV support
- Low-profile design
|
DC Power |
- Input: 48 – 56V DC
- Recommended power supply: TI-S24048 (sold separately)
- Max. consumption: 5.76W (no PoE)
- PoE
- PoE budget: 200W
|
Terminal Block |
- Redundant power inputs, alarm relay contact, 6 pin
- Wire range: 0.34mm^2 to 2.5mm^2
- Solid wire (AWG): 12-24/14-22
- Stranded wire (AWG): 12-24/14-22
- Torque: 5 lb. – In / 0.5Nm / 0.56Nm
- Wire strip length: 7-8mm
- Alarm Relay Contact
- Relay outputs with current carrying capacity of 1A, 24V DC
- Open circuit mode when two power sources are connected
- Short circuit mode when only one power source is connected
|
MTBF |
|
Housing |
- IP30 metal case
- DIN-Rail mount
- Wall mount
- Grounding point
|
Operating Temperature |
- - 40° – 75° C (-40° – 167° F)
|
Operating Humidity |
|
Dimensions |
- 142 x 105 x 37mm (5.6 x 4.1 x 1.5 in.)
|
Weight |
|
