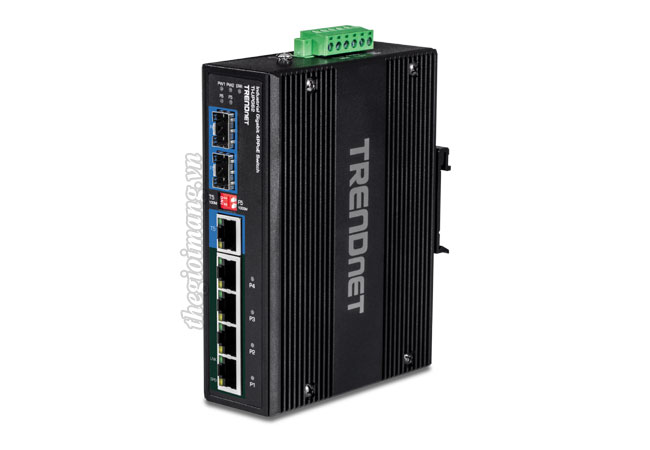

Thiết bị mạng Switch Trendnet TI-UPG62
| Model |
TI-UPG62 |
| Device Interface |
- 4 x Gigabit PoE++ ports
- 1 x Gigabit share port
- 2 x Gigabit SFP slots
- 6-pin removable terminal block
- LED indicators
- DIN-Rail mount
- Wall mount
- Grounding point
|
| Data Transfer Rate |
- Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
- Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
- Gigabit: 2000Mbps (full duplex)
- Fiber: 2000Mbps (full duplex)
|
| Performance |
- Data RAM Buffer: 1MB
- Switching Fabric: 12Gbps
- MAC Address Table: 1K entries
- Jumbo Frame: 9KB
- Forwarding rate: 8.9Mpps (64-byte packet size)
|
| Special Features |
- Hardened components rated for extreme temperatures
- Multiple power inputs
- Auto-Negotiation
- Auto store and forward architecture
- Automatic address learning and address aging
- ESD 8KV protection
|
| DC Power |
- Input: 52 - 56V DC
- Compatible power supply: TI-S24048 (sold separately)
- Max. consumption: 6.2W (no PD)
|
| PoE |
- PoE: up to 15.4W per port
- PoE+: up to 30W per port
- PoE++: up to 90W per port
- Power budget: 240W
|
| Terminal Block |
- Redundant power inputs, alarm relay contact, 6 pin
- Wire range: 0.34mm^2 to 2.5mm^2
- Solid wire (AWG): 12-24/14-22
- Stranded wire (AWG): 12-24/14-22
- Torque: 5 lb. – In / 0.5Nm / 0.56 Nm
- Wire strip length: 7-8mm
|
| DIP Switch |
- 1: OFF (port 5 SFP on, default), ON (port 5 SFP off)
- 2: OFF (SFP 1000M, default), ON (SFP 100M)
|
| Alarm Relay Contact |
- Relay outputs with current carrying capacity of 1A, 24V DC
- Short circuit mode when two power sources are connected
- Open circuit mode when only one power source is connected
|
| MTBF |
|
| Housing |
- IP30 metal case
- DIN-Rail mount
- Wall mount
- Grounding point
- 8KV ESD protection
- Operating Temperature
- - 40° – 75° C (-40 – 167° F)
|
| Operating Humidity |
|
| Dimensions |
- 143 x 105 x 36mm (5.6 x 4.1 x 1.4 in.)
|
| Weight |
|
