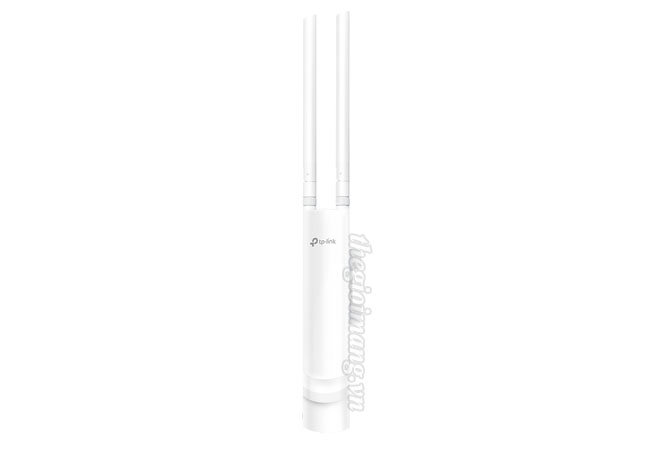

Thiết bị phát WiFi ngoài trời TP-Link EAP110-Outdoor
Sản phẩm | EAP110-Outdoor |
---|---|
TÍNH NĂNG PHẦN CỨNG | |
Giao diện | 1 x Fast Ethernet (RJ-45) Port (Support Passive PoE) |
Nút | Nút Reset |
Bộ cấp nguồn | 24VDC / 0.5A Passive PoE Supply |
Điện năng tiêu thụ | 3.12W |
Kích thước ( R x D x C ) | 8.5 × 1.8 × 1.1 in. (216 × 46 × 27 mm) |
Dạng Ăng ten | 2*3dBi External Omni waterproof |
Weatherproof Enclosure | IP65 |
Lắp | Pole / Wall Mounting (Kits included) |
TÍNH NĂNG WI-FI | |
Chuẩn Wi-Fi | IEEE 802.11n/g/b |
Băng tần | 2.4GHz |
Tốc độ tín hiệu | Lên đến 300Mbps |
Công suât truyền tải | • CE: ≤20 dBm (EIRP) • FCC: ≤22 dBm |
CHỨNG CHỈ & MÔI TRƯỜNG, KHÁC | |
Chứng chỉ | CE, FCC, RoHS |
Môi trường | Operating Temperature: -30℃~65℃ (-22℉~149℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
Data sheet TP-Link EAP110-Outdoor V3 | |
---|---|
EAP110-Outdoor | 300Mbps Wireless N Outdoor Access Point, Qualcomm, 300Mbps at 2.4GHz, 802.11b/g/n, 1 10/100Mbps LAN, Passive PoE Supported, Centralized Management, Captive Portal, Multi-SSID, 5dBi External Omni Waterproof Antennas, IP65-rated Dustproof/Weatherproof Enclosure, 6KV Lightning Protection, Pole/wall Mounting |
TÍNH NĂNG WI-FI | |
Tốc độ tín hiệu | 11n: Up to 300Mbps(dynamic) 11g: Up to 54Mbps(dynamic) 11b: Up to 11Mbps(dynamic) |
Tính năng Wi-Fi | Multiple SSIDs(Up to 8 SSIDs) Enable/Disable Wireless Radio Automatic Channel Assignment Transmit Power Control (Adjust Transmit Power on dBm) QoS(WMM) Load Balance Rate Limit Reboot Schedule Wireless Schedule Wireless Statistics based on SSID/AP/Client |
Bảo mật Wi-Fi | Captive Portal Authentication Access Control Wireless Mac Address Filtering Wireless Isolation Between Clients SSID to VLAN Mapping Rogue AP Detection 802.1X Support 64/128/152-bit WEP / WPA / WPA2-Enterprise, WPA-PSK / WPA2-PSK |
QUẢN LÝ | |
Omada App | ✔ |
Auranet Controller Software | ✔ |
Centralized Management | • Omada Cloud-Based Controller • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller |
Cloud Access | ✔ (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller) |
Email Alerts | ✔ |
LED ON/OFF Control | ✔ |
Quản lý kiểm soát truy cập MAC | ✔ |
SNMP | ✔ |
System Logging Local/Remote Syslog | ✔ |
Telnet | ✔ |
SSH | ✔ |
Quản lý dựa trên Web | HTTP/HTTPS |
Quản lý L3 | ✔ |
Quản lý nhiều trang Web | ✔ |
Quản lý VLAN | ✔ |
