Model |

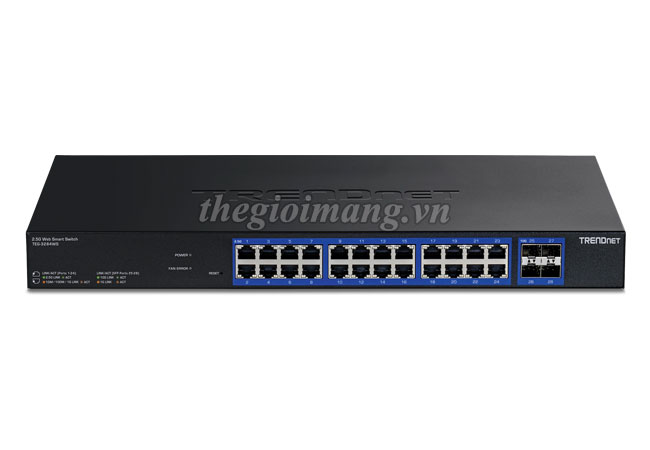

TEG-3284WS |
Standards |
- IEEE 802.1d
- IEEE 802.1p
- IEEE 802.1Q
- IEEE 802.1s
- IEEE 802.1w
- IEEE 802.1X
- IEEE 802.1ab
- IEEE 802.3
- IEEE 802.3u
- IEEE 802.3x
- IEEE 802.3z
- IEEE 802.3ab
- IEEE 802.3ad
- IEEE 802.3ae
- IEEE 802.3az
- IEEE 802.3bz
|
Device Interface |
- 24 x 2.5G RJ-45 ports (10Mbps/100Mbps/1Gbps/2.5Gbps)
- 4 x 10G SFP+ ports (1Gbps/10Gbps)
- LED indicators
|
Data Transfer Rate |
- Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
- Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
- Gigabit Ethernet: 2Gbps (full duplex)
- 2.5G Ethernet: 5Gbps (full duplex)
- Gigabit SFP: 2Gbps (full duplex)
- SFP+: 20Gbps (full duplex)
|
Performance |
- Switching fabric: 200Gbps
- RAM Buffer: 2MB
- MAC Address Table: 32K entries
- Jumbo Frames: 12KB
- HOL Blocking Prevention
- Forwarding rate: 130.95Mpps (64-byte packet size)
|
Management |
- CLI (Telnet / SSHv2) limited administration only
- HTTP/HTTPS (SSL v2/3 TLS) Web based GUI
- SNMP v1, v2c, v3
- RMON v1
- Static Unicast MAC Address
- Enable/disable 802.3az Power Saving
- LLDP
- Virtual Cable Diagnostics Test
- IPv6: IPv6 Neighbor Discovery, IPv6 Static IP, DHCPv6, Auto configuration
- Dual image
- Dual configuration
- TC Root/Protect
- Ping Watch Dog
|
Hive Cloud Management |
- Configure, monitor, and manage through the TRENDnet Hive Cloud Management Portal remotely via PC or Mac web browser
- Multi-device management
- Provisioning through scheduled batch firmware or configuration updates for multiple switches
- Event/hardware network monitoring (CPU/memory utilization)
- Configure features such as IP address settings, VLANs, spanning tree, loopback detection, IGMP snooping, link aggregation, and bandwidth control through cloud management
|
MIB |
- IP FORWARD TABLE MIB RFC 1354
- IPV6 MIB RFC 2465
- GVRP MIB IEEE 802.1Q-VLAN
- LA MIB IEEE 802.3ad
- LLDP MIB IEEE 802.1AB
- SNMP MIB RFC 3415
- STP MIB RFC 4318
- PNAC MIB IEEE 802.1x
- VLAN MIB IEEE 802.1q
- ACL MIB
- BANDWIDTH CTRL MIB
- LBD MIB
- MIRROR MIB
- IPV6 NEIGHBOR MIB
- SNTP MIB
- STORM CTRL MIB
- STATISTICS MIB
- Tool MIB
- VOICE VLAN MIB
- DOS MIB
|
Spanning Tree |
- IEEE 802.1d STP
- IEEE 802.1w RSTP
- IEEE 802.1s MSTP
|
Link Aggregation |
- Static Link Aggregation
- 802.3ad Dynamic LACP
|
Quality of Service (QoS) |
- 802.1p Class of Service (CoS)
- DSCP (Differentiated Services Code Point)
- Bandwidth control per port
- Queue Scheduling: Strict Priority, Weighted Round Robin (WRR)
|
VLAN |
- Multiple management VLAN assignment
- Asymmetric VLAN
- 802.1Q Tagged VLAN
- Dynamic GVRP
- MAC-based VLAN
- Protocol-based VLAN
- Up to 256 VLAN groups, ID Range 1-4094
- Private VLAN (Protected Ports)
- Voice VLAN (10 user defined OUIs)
|
Multicast |
- IGMP Snooping v1, v2
- MLD Snooping v1
- IGMP fast leave
- MVR (Multicast VLAN Registration)
- Static Multicast Address
- Up to 256 multicast entries
|
Port Mirror |
- RX, TX, or Both
- Many to one
|
Access Control |
- 802.1X Port-Based Network Access Control, RADIUS, TACACS+
- Local Dial In User Authentication
- DHCP Snooping (per VLAN)
- Loopback Detection
- Duplicated Address Detection
- Trusted Host
- Denial of Service (DoS)
- IP MAC port binding
- Dynamic ARP inspection
- Block unknown multicast
|
ACL IPv4 L2-L4 & IPv6 |
- MAC Address
- VLAN ID
- Ether Type (IPv4 only)
- IP Protocol 0-255
- TCP/UDP Port 1-65535
- 802.1p
- DSCP (IPv4 only)
- IPv6 Address (IPv6 only)
|
Layer 3 Features |
- IPv4 / IPv6 static routing
- IP interfaces: Up to 8
- Routing table entries: Up to 32 (IPv4 / IPv6)
- ARP table (up to 128 entries)
- Inter-VLAN routing
|
Compatibility |
- Optional Software Utility: Windows® 11 & 10
|
Power |
- Input: 100 – 240V AC, 50/60Hz, internal power supply
- Max. consumption: 40W
|
Fan/Acoustics |
- Quantity: 1
- Smart fan
- Max. noise level 38.6 dBA
|
MTBF |
|
Operating Temperature |
|
Operating Humidity |
|
Dimensions |
- 440 x 250 x 44mm
- Rack mountable 1U height
|
Weight |
|
Certifications |
|
