Name: Trendnet TEW-823DAP
Brand: Trendnet
SKU: TEW-823DAP
Rating: 5 (16 reviews)

Hỗ trợ trực tuyến

Tư vấn

Hỗ trợ Tư Vấn

0909648899

Kinh doanh

Kinh Doanh 01

0917684899

Kinh Doanh 02

0917993131

Kinh Doanh 03

0915793030

Kinh Doanh 04

0906641689

Kỹ thuật

Hỗ trợ Kỹ Thuật 1

02862578356

Hỗ trợ Kỹ Thuật 2

02862578355

Mô tả sản phẩm

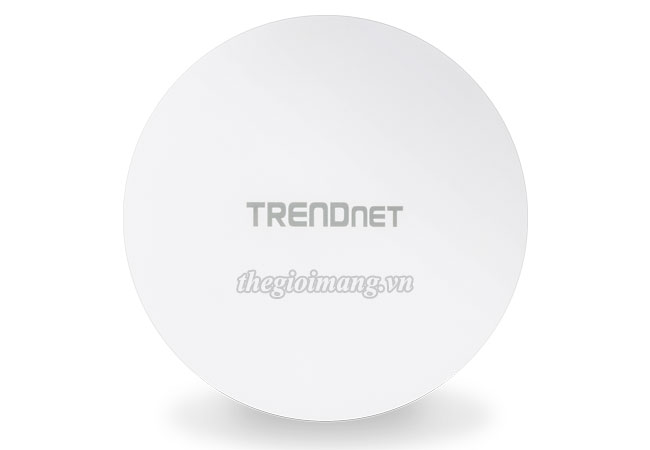

Thiết bị Wi-Fi Trendnet TEW-823DAP Indoor Access Point

Model	TEW-823DAP
Standards	IEEE 802.3 IEEE 802.3u IEEE 802.3x IEEE 802.3ab IEEE 802.3af IEEE 802.1Q IEEE 802.11a IEEE 802.11b IEEE 802.11g IEEE 802.11k IEEE 802.11n (up to 400Mbps)* IEEE 802.11r IEEE 802.11v IEEE 802.11ac (up to 867Mbps)*

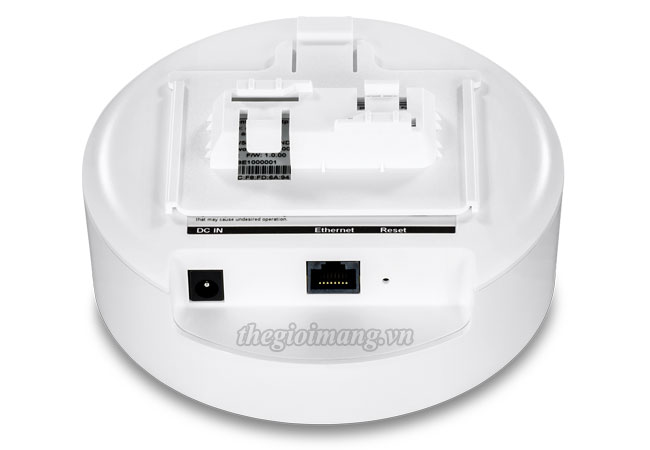

Hardware Interface	1 x 802.3af PoE Gigabit LAN port (power input) Power port (12V DC, 1A external power adapter not included) LED indicator Reset button
Features	MU-MIMO Band steering 802.1Q VLAN assignment per SSID IPv4 static/DHCP address assignment UPnP/Bonjour
Operation Modes	Access Point Repeater
Management/Monitoring	Web based management (HTTP/HTTPS) Command Line Interface (Telnet/SSH) SNMP v2c/v3 Spanning Tree Protocol (STP) Event logging Ping test Traceroute Schedule WiFi radio enable/disable Ping watchdog/gateway connection monitor Reboot & scheduled automatic reboot Channel utilization scan
Access Control	Wireless encryption: WPA2/WPA3-RADIUS (Enterprise), WPA2/WPA3-PSK (Personal) MAC filter with scheduling Maximum client limit Client isolation
QoS	Bandwidth control per SSID
SSID	Up to 8 SSIDs per wireless band (16 total)
Frequency	2.4GHz: 2.412 – 2.472GHz 5GHz: 5.180 – 5.825GHz
Wireless Channels	2.4GHz: FCC: 1–11, ETSI: 1–13 5GHz: FCC: 36, 40, 44, 48, 149, 153, 157, 161 and 165, ETSI: 36, 40, 44, 48
Modulation	DBPSK/DQPSK/CCK for DSSS technique BPSK/QPSK/16-QAM/64-QAM/256-QAM for OFDM technique
Antenna Gain	2.4GHz: 2 x 4 dBi internal 5Ghz: 2 x 5 dBi internal
Wireless Output Power	802.11a: FCC: 28.5 dBm (max.) / CE: 19 dBm (max.) 802.11b: FCC: 26.5 dBm (max.) / CE: 18 dBm (max.) 802.11g: FCC: 30 dBm (max.) / CE: 19 dBm (max.) 802.11n (2.4GHz): FCC: 24.5 dBm (max.) / CE: 19.5 dBm (max.) 802.11n (5GHz): FCC: 28.5 dBm (max.) / CE: 21 dBm (max.) 802.11ac: FCC: 28.5 dBm (max.) / CE: 21 dBm (max.)
Receiving Sensitivity	802.11a: -73 dBm (typical) @ 54Mbps 802.11b: -87 dBm (typical) @ 11Mbps 802.11g: -73 dBm (typical) @ 54Mbps 802.11n (2.4 GHz): -68 dBm (typical) @ 400Mbps 802.11n (5 GHz): -67 dBm (typical) @ 400Mbps 802.11ac: -57 dBm (typical) @ 867 Mbps
Power	IEEE 802.3af Type 1 PoE PD Class 3 Input: 100 - 240V AC, 50/60Hz, Output: 12V DC, 1A external power adapter (not included) Max. consumption: 11.9W
Operating Temperature	0° – 40° C (32° – 104° F)
Operating Humidity	Max. 90% non-condensing
Certifications	CE FCC IC
Dimensions	130 x 130 x 46mm (5.12 x 5.12 x 1.8 in.)
Weight	188g (6.7 oz.)
