| Model |

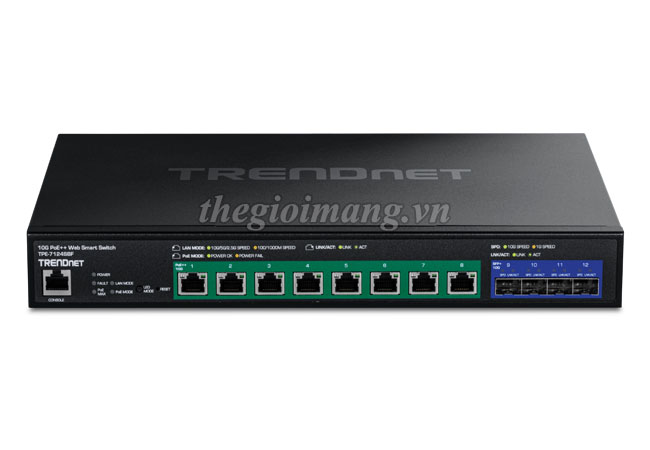

TPE-7124SBF |
| Standards |
- IEEE 802.1d
- IEEE 802.1p
- IEEE 802.1Q
- IEEE 802.1s
- IEEE 802.1w
- IEEE 802.1X
- IEEE 802.1ab
- IEEE 802.3
- IEEE 802.3u
- IEEE 802.3x
- IEEE 802.3z
- IEEE 802.3ab
- IEEE 802.3ad
- IEEE 802.3ae
- IEEE 802.3an
- IEEE 802.3af
- IEEE 802.3at
- IEEE 802.3az
- IEEE 802.3bz
- IEEE 802.3bt
|
| Device Interface |
- 8 x 10G PoE++ ports (100Mbps/1Gbps/2.5Gbps/10Gbps)
- 4 x 10G SFP+ ports (1Gbps/10Gbps)
- LED indicators
- Reset button
|
| Data Transfer Rate |
- Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
- Gigabit Ethernet: 2Gbps (full duplex)
- 2.5G Ethernet: 5Gbps (full duplex)
- 10G Ethernet: 20Gbps (full duplex)
- SFP: 2Gbps (full duplex)
- SFP+: 20Gbps (full duplex)
|
| Performance |
- Switch fabric: 240Gbps
- RAM buffer: 2MB
- MAC Address Table: 32K entries
- Jumbo Frames: 10KB
- HOL Blocking Prevention
- Forwarding rate: 178.56Mpps (64-byte packet size)
|
| Management |
- CLI (Telnet / SSHv2) limited administration only
- HTTP/HTTPS (SSL v2/3 TLS) Web based GUI
- SNMP v1, v2c, v3
- RMON v1
- Static Unicast MAC Address
- Enable/disable 802.3az Power Saving
- LLDP and LLDP-MED
- Virtual Cable Diagnostics Test
- IPv6: IPv6 Neighbor Discovery, IPv6 Static IP, DHCPv6, Auto configuration
- Dual image and configuration
|
| MIB |
- RMON MIB RFC 1271
- LLDP MIB IEEE 802.1ab
- RFC 1213 MIB II
- RFC 1643 Ethernet-like interface MIB
- RFC 1493 bridge MIB
|
| Spanning Tree |
- IEEE 802.1d STP (Spanning Tree protocol)
- IEEE 802.1w RSTP (Rapid Spanning Tree protocol)
- IEEE 802.1s MSTP (Multiple Spanning Tree protocol)
|
| Link Aggregation |
- Static Link Aggregation
- 802.3ad Dynamic LACP
|
| Quality of Service (QoS) |
- 802.1p Class of Service (CoS)
- DSCP (Differentiated Services Code Point)
- Bandwidth control per port
- Queue Scheduling: Strict Priority, Weighted Round Robin (WRR)
|
| VLAN |
- 802.1Q Tagged VLAN
- Dynamic GVRP
- Up to 256 VLAN groups, ID Range 1-4094
- Voice VLAN (10 user defined OUIs)
|
| Multicast |
- IGMP Snooping v1, v2, v3
- MLD Snooping v1, v2
- IGMP fast leave
- Up to 256 multicast entries
|
| Port Mirror |
- RX, TX, or Both
- Many to one
|
| Access Control |
- 802.1X Port-Based Network Access Control, RADIUS, TACACS+
- Local Dial-In User Authentication
- DHCP Snooping
- Loopback Detection
- Trusted Host
- Denial of Service (DoS)
- IP MAC port binding
- Block unknown multicast
|
| ACL IPv4 L2-L4 & IPv6 |
- MAC Address
- VLAN ID
- Ether Type (IPv4 only)
- IP Protocol 0-255
- TCP/UDP Port 1-65535
- 802.1p
- TOS (IPv4 only)
- IPv4 Address and Mask (IPv4 only)
- IPv6 Address and Prefix Length (IPv6 only)
|
| Layer 3 Features |
- IPv4 / IPv6 static routing
- IP interfaces: Up to 6
- Routing table entries: Up to 32 (IPv4 / IPv6)
- ARP table (up to 128 entries)
- Inter-VLAN routing
|
| Power |
- Input: 100 – 240V AC, 50/60Hz, internal power supply
- Max. consumption: 57.4W (No PD connected)
|
| PoE |
- PoE budget: 720W
- 802.3bt: Up to 90W per port
- PoE++ Pins 3, 4, 5, 6 for power+ and pins 1, 2, 7, 8 for power-
- PoE/PoE+ pins 3, 6 for power + and pins 1, 2 for power- (mode A)
- PD auto classification
- Over current/short circuit protection
- PD alive check
- Fast PoE
- Perpetual PoE
|
| Fan/Acoustics |
- Quantity: 3
- Smart fans
- Max. noise level 51.1 dBA
|
| MTBF |
|
| Operating Temperature |
|
| Operating Humidity |
|
| Dimensions |
|
| Weight |
|
| Certifications |
|
