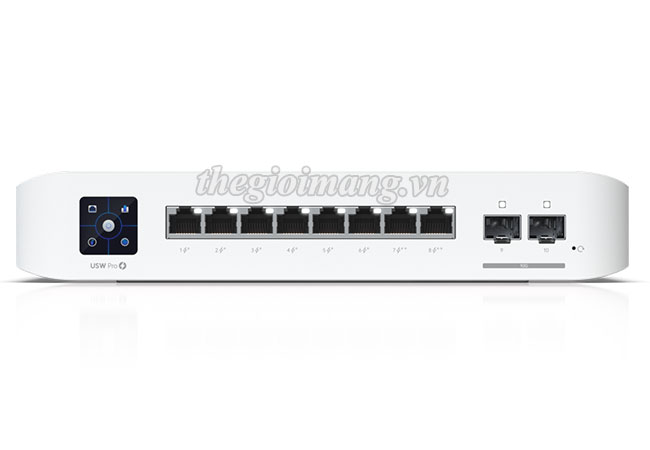

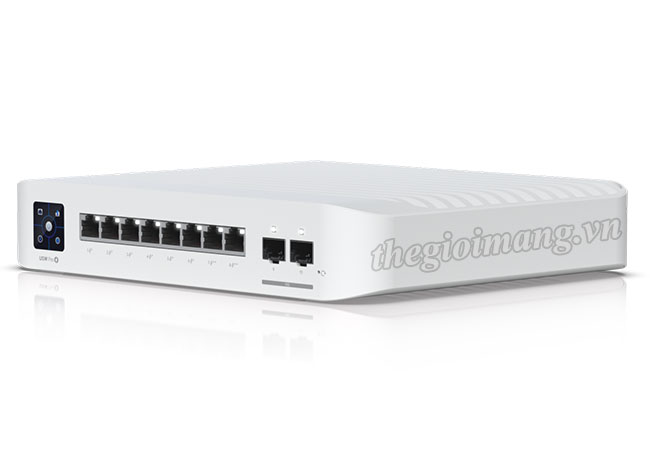

UniFi Switch 8 PoE (USW-Pro-8-PoE (120W)) - 8-port, Layer 3 switch with PoE+ and PoE++ output.
UniFi Switch 8 PoE (USW-Pro-8-PoE (120W)) thiết bị chuyển mạch 8 cổng Lớp 3 với cổng PoE+ và PoE++.
Thông số kỹ thuật UniFi Switch 8 PoE
Model | USW-Pro-8-PoE (120W) |
---|---|
Mechanical | |
Dimensions | 200 x 248 x 44 mm (7.9 x 9.8 x 1.7") |
Weight | 2.1 kg (4.6 lb) |
Enclosure material | Polycarbonate, metal |
Hardware | |
Management interface | Ethernet In-Band |
Networking interface | (8) GbE RJ45 ports (2) 10G SFP+ ports |
PoE interface | (6) PoE/PoE+ (Pins 1, 2+; 3, 6-) (2) 60W PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-) |
Total non-blocking throughput | 28 Gbps |
Switching capacity | 56 Gbps |
Forwarding rate | 41.664 Gbps |
Power method | Universal input, 100—240V AC, 2A Max. |
Power supply | AC/DC, internal |
Supported voltage range | 100—240V AC |
Max. power consumption | 30W (Excluding PoE output) |
Total available PoE | 120W |
LCM display | (1) 1.3" touchscreen |
Buttons | Factory reset |
Ambient operating temperature | -5 to 45° C (23 to 113° F) |
Ambient operating humidity | 10 to 95% noncondensing |
Certifications | CE, FCC, IC |
Application Requirements | |
UniFi Network | Version 7.5.176 and later |
Tính năng chuyển mạch của switch UniFi Switch 8 PoE (USW-Pro-8-PoE (120W))
