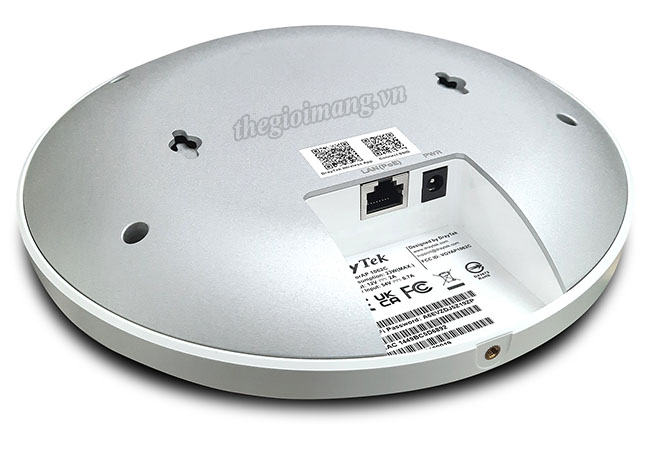

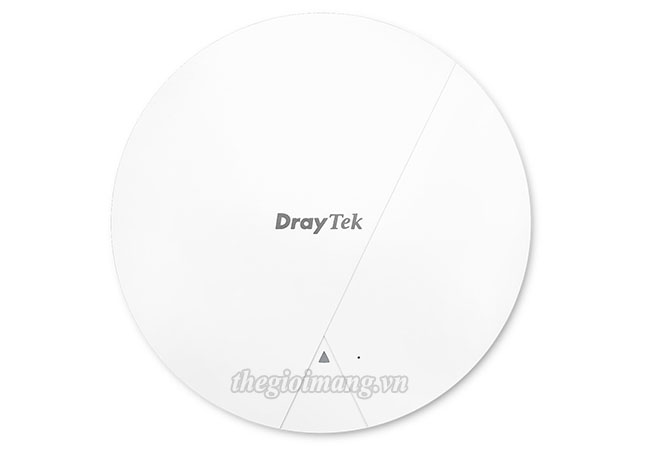

Draytek VigorAP 1062C : 4x4 AX6000 Dual Band WiFi 6 Ceiling AP
Bộ phát WiFi DrayTek VigorAP 1062C
| Models | VigorAP 1062C |
| Interface | |
| LAN Port | 1 x 2.5G/1G/100M/10M Etherne, RJ-45 (PoE-PD Support) |
| Power | 1 x DC Power Input |
| Button | 1 x Factory Reset Button |
| WLAN | |
| WiFi 6 | ● |
| 2.4GHz WLAN | 802.11b/g/n/ax |
| 5GHz WLAN | 802.11a/n/ac wave 2/ax |
| Antennas | 4x Internal PiFA DB |
| 2.4G Max. Link Rate (Mbps) | 1200 |
| 5G Max. Link Rate (Mbps) | 4800 |
| Max. Clients | 256 |
| Max. Clients (per band) | 128 |
| Operating Mode | AP, Mesh Root, Mesh Node, Range Extender |
| Roaming | AP-Assisted Roaming, PMK-Caching, Pre-Authentication, 802.11r, 802.11k |
| AirTime Fairness | ● |
| Band Steering | ● |
| OFDMA | ● |
| Max. Number of SSID | 16 (8 per radio band) |
| WDS | Repeater |
| WMM | ● |
| Security | |
| Security Mode | OWE, WEP, WPA, WPA2/WPA, WPA2, WPA3/WPA2, WPA3 |
| Authentication | Personal, Enterprise |
| WPS | PIN, PBC |
| Hidden SSIDs | ● |
| MAC Address Filter (Max. entry number) | 128 |
| Application | |
| Built-in RADIUS Server | ● |
| DHCP | DHCP Server, DHCP Client, DHCP Relay Agent |
| Static IP | ● |
| 802.1q tag-based VLAN | ● |
| Schedule | Wi-Fi Up/Down |
| Management | |
| Local Service | HTTP, HTTPS, Telnet |
| Firmware Upgrade | HTTP, TFTP, TR-069 |
| Config Backup/Restore | ● |
| Syslog | ● |
| SNMP | v1, v2c, v3 |
| Stand-Alone Operation | ● |
| Mesh | Node, Root |
| Central AP Management (Number of manageable APs) | 50 |
| VigorRouter Management (APM) | ● |
|
Physical
|
|
| Environment | Indoor |
| Mounting | Wall / Ceiling |
| Power via | DC / PoE+ |
| Power Input | 12V DC @ 2A |
| Max. Power Consumption (watts) | 23 |
| Dimension (mm) | 208 x 208 x 32.1 |
| Weight (g) | 812.6 |
| Operating Temperature | 0 to 40°C |
| Storage Temperature | -20 to 60°C |
| Operating Humidity (non-condensing) | 10 to 90% |
