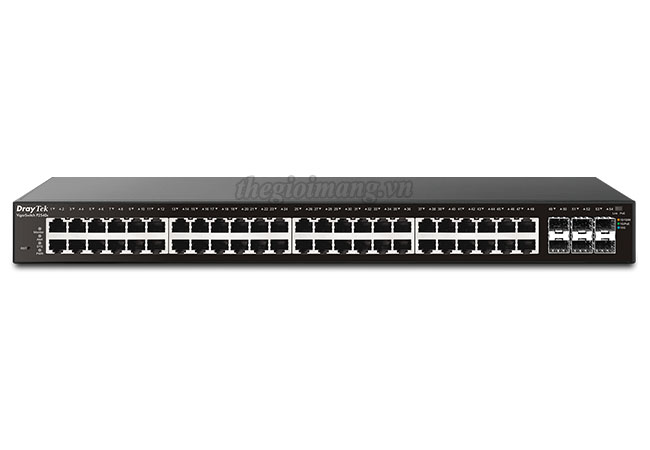

VigorSwitch P2540x

DrayTek VigorSwitch P2540x: 54-Port Layer 2+ Managed 10G PoE Switch. ● 48 port LAN Gigabit PoE+ ● 6 port Gigabit/ 10Gigabit SFP+ slot ● Tổng công suất nguồn cấp PoE: 400W ● Quản lý tập trung bằng SWM / VigorConnect / VigorACS2 / Cloud DrayTek Free

  • Giá bán : Liên hệ để có giá tốt
  • Tình trạng : Còn hàng


Thiết bị chuyển mạch DrayTek VigorSwitch G2540x

Product VigorSwitch G2540x
Interface
LAN Port - 48x 10/100/1000Mbps Ethernet, RJ-45
- 6x 1000Mbps/10Gbps SFP+ slot
Console Port 1x RJ-45
Slide Switch 1 (Port/PoE LED)
Factory Reset Button 1
PoE
PoE Capable Ports 48
PoE Standards PoE/PoE+(802.3af/802.3at), Type mode A
PoE Power Budget 400 watts
Power Limit
Power Cycle on Port
Capacity
Buffer Size 16 Mbit
Switching Capacity 216 Gbps
Forwarding Rate 160.7 Mpps (64 bytes)
MAC Address Table 32k
Jumbo Frame Up to 12KB
L3 Routing Table Max. 2k
Networking Standards
IP Version IPv4, IPv6
VLAN
Max.Number of VLAN 256
VLAN Type 802.1q Tag-based
MAC-based
Protocol-Based
Management VLAN
Voice VLAN
Surveillance VLAN
Port Isolation
802.1x Guest VLAN
GVRP
Q-in-Q Basic
ONVIF Surveillance
Discovery
Surveillance Topology
Real-Time Video Streaming
ONVIF Device Maintenance Device Info, Reset Factory Default, Time Settings, Reboot
QoS
Number of QoS Queues 8
Queue Scheduling SPQ, WRR
CoS (Class of Service) 802.1p CoS, DSCP, CoS-DSCP, IP Precedence
Rate Limit/Shaping
Security
Access Control List MAC, IPv4, IPv6
Storm Control Broadcast, Unknown Multicast, Unknown Unicast
DoS Defense
802.1x Port Access Control
IP Source Guard
IP Conflict Detection
IP Conflict Prevention
Loop Protection
Dynamic ARP Inspection
DHCP Snooping with Option 82
Layer 3 Features
Static Route
VLAN Route
DHCP Server
AAA
Authentication Server RADIUS, TACACS+
RADIUS Attribute Assignment User Privilege, VLAN
Port Authorization
Management Account
Accounting
Multiple Server
Link Aggregation
Max. Number of Group 8
Max. Number of Member in Each Group 8
Type Static, LACP
Traffic Load Balancing MAC Address, IP/MAC Address
Management
Web Interface HTTP, HTTPS
Command Line Interface Telnet, SSH v2
OpenVPN Client Certificate-based authentication
User Authentication Local Database, RADIUS, TACACS+
sFlow
Private MIB
SNMP v1, v2c, v3
Mail Alert Port Status, Port Speed, System Restart, IP Conflict
Managed by VigorRouter SWM
Managed by VigorConnect
Managed by VigorACS 2
Physical
19-inch Rack Mountable Mouting Kit Included
Max. Power Consumption 478 watts
Power Input AC 100-240V @ 5.5A
Dimension 441(W) x 330(D) x 45(H)
Weight 5.66 kg (12 lb)
Operating Temperature 0 to 50°C
Operating Humidity 10 to 90% non-condensing

Data sheet VigorSwitch P2540x


DrayTek VigorSwitch P2540x
48 Port Layer2+ Managed Gigabit Switch with 6 slot SFP+ 10 Gigabit uplink

  • 48 port LAN Gigabit PoE 802.3af/at.
  • 6 port  Gigabit/ 10Gigabit SFP+ slot.
  • 1 Factory Reset Button.
  • Quy định mức độ ưu tiên cho từng port.
  • Quy định mức công suất tối đa cho từng port.
  • Theo dõi mức tiêu thụ của từng port (W / A).
  • Kiểm tra trạng thái thiết bị đầu cuối (ping detect) để reset lại nguồn của port nếu thiết bị đó bị treo.
  • Lập lịch cung cấp nguồn cho từng port (tiết kiệm điện năng).
  • Hỗ trợ chia VLAN với chuẩn 802.1q, Port based VLAN, MAC based VLAN, Protocol-based VLAN, VoIP VLAN, Surveillance VLAN, VLAN Management Q-in-Q basic, Port Isolation.
  • Tính năng LACP giúp gộp băng thông đường truyền( 8 group, mỗi group tối đa 8 port).
  • Tính năng Spanning Tree, Loop detection giúp tăng cường độ ổn định hệ thống.
  • IGMP snooping, QoS tối ưu cho dịch vụ âm thanh và video.
  • DHCP snooping chống giả mạo DHCP server.
  • ACL, Port security, IP Source Guard, ARP Inspection, DoS, Jumbo Frame.
  • Tính năng Layer 3 như: DHCP server/ Static Route/ VLAN route.
  • Cấu hình bằng giao diện web và dòng lệnh.
  • Tổng công suất nguồn cấp PoE: 400W
  • Quản lý tập trung bằng SWM tích hợp trên Router DrayTek / phần mềm VigorConnect (miễn phí), hoặc phần mềm VigorACS2 (phí hằng năm) hoặc cloud DrayTek Free
