Model	Hawkeye 9060-4GP2GS240W-I
Interface
Ports	4 x 10/100/1000BASE-T (PoE RJ45) 2 x GbE SFP Slots 1 x RJ45 Console Port 1 x USB Port
DIP Switch	Primary/Redundant Power Voltage Drop Alarm setting
LED Panel	PWR, RPS, ALM, POST, SFP, PoE, 1000M, LNK/ACT Green: 802.3bt PoE power is delivered. Amber: 802.3at/af PoE power is delivered. Off: No incoming or outgoing PoE power
DI ports	2 x Dry contacts of Digital Input
Features
Performance	Jumbo frame Size: 10KBytes MAC Table Entries: 16K Active VLAN: 4K Switch Fabric: 12Gbps L2 Forwarding Rate: 8.9Mpps
Management	CLI, Telnet, SSH, HTTP, HTTPs, SNMP v1/v2c, SNMP v3, SNMP Trap, MIB, RMON, Management VLAN (MVLAN), Firmware upgradable, Configuration Backup/Restore, Syslog, PTP, SNTP, LLDP, DHCP Client/Relay/Option 66/67/82, Port Mirroring, Server (service) control, Port Utilization, Alarm Information, Email Alarm, ModbusTCP, Power Down trap, DDMI Support, Topology Map, Port Configuration(enable/disable, speed/duplex), ONVIF, Port Statistic, System reboot from remote side, User Account with authority
Reliability	STP/RSTP/MSTP, Xpress Ring, ERPS v1/v2, Dual Homing, LACP, Code Redundancy, Dual Xpress-ring, Static Trunk
VLAN	IEEE 802.1Q, GARP/GVRP, Port-based VLAN, MAC-based VLAN, IP-based VLAN, Protocol-based VLAN, QinQ
Traffic Control	Management VLAN, MVR, QoS, Flow Control, Abnormal Traffic Detection, Rate Limit, Storm Control, Port Isolation, Loop Detection
Security	Traffic Monitor, Priority Queue, ACL, SSH, Port Security, Port-based 802.1x, TACACS+, MAC limit, MAC Search, Refusal MAC, Static MAC, DHCP Snooping, DHCP Server Screening, ARP Inspection, BPDU Guard/Filter, Root Guard, Management Host
PoE/PoE+/PoE++	Scheduling, PD Alive Check, PoE Power On/OFF, Fast PoE, Perpetual PoE, Feeding Power Budget Control, Status Monitor, Legacy mode enable/disable
IPv6	Dual protocol stack, Neighbor Discovery, Management (TELNET, HTTP, HTTPS, SSH, PING6, TACACS+), DHCPv6 Client, (DHCPv4 Option 82), DHCPv6 Relay, Default Gateway, Static Route, SNMP, SNMP Trap, Syslog, SNTP, Auto-provisioning, MLDv1/v2, ACL, ARP
L3 Routing	Static Route
Power
Input Voltage	Primary inputs: 48~57VDC Redundant inputs: 48~57VDC
Connection	Teminal Block
Power Consumption	System: 20W PoE Power Budget: 240 Watt
Alarm Relay	One relay output, 1A @ 24VDC
Mechanical and Environment
Housing	Aluminum (IP30 protection)
Mounting	DIN-Rail
Operating Temperature	-40°C~75°C (-40°F~167°F)
Storage Temperature	-40°C~85°C (-40°F~185°F)
Operating Humidity	5 to 95% RH (non-condensing)
Storage Humidity	5 to 95% RH (non-condensing)
Weight	970 g (2.14 lb)
Dimension (WxHxD)	50 x 160 x 110 mm (2.0 x 6.3 x 4.3 in)

Data sheet Voltek Hawkeye 9060

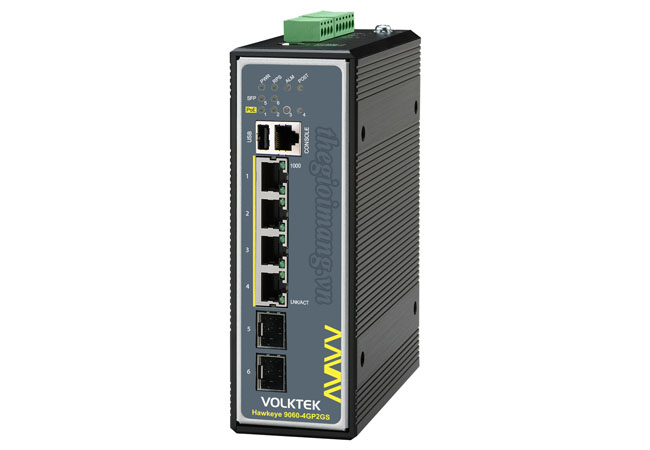

VOLKTEK Hawkeye 9060
L2+ Managed 4 x 10/100/1000 PoE++ & 2 x GbE SFP Switch, 240Watt PoE budget

Certifications:
● EMI:

FCC Part 15 Subpart B Class A
EN 55011:2016 Class A
EN 55032: Class A
EN 61000-6-4

● EMS:

EN 55024
EN 61000-6-2
EN 61000-4-2 (ESD)
EN 61000-4-3 (RS)
EN 61000-4-4 (Burst)
EN 61000-4-5 (Surge)
EN 61000-4-6 (CS)
EN 61000-4-8 (PFMF)

● Shock: IEC 60068-2-27
● Freefall: IEC 60068-2-31
● Vibration: IEC 60068-2-6

Optional Accessories:
● Power Supply - SDR-480P-48: 480W DIN-Rail 48V DC Industrial Power Supply, -25°C~70°C (-13°F~158°F)
● GBM-104 - 1000BASE-SX 1.25G, Multi-mode SFP, 500m
● GBM-123TS - 1000BASE-LX, Bi-Di SFP TX:1310/RX:1550 Single Mode, 10Km, 0°C~70°C (-32°F~158°F)
● GBM-123RS - 1000BASE-LX, Bi-Di SFP TX:1550/RX:1310 Single Mode, 10Km, 0°C~70°C (-32°F~158°F)
