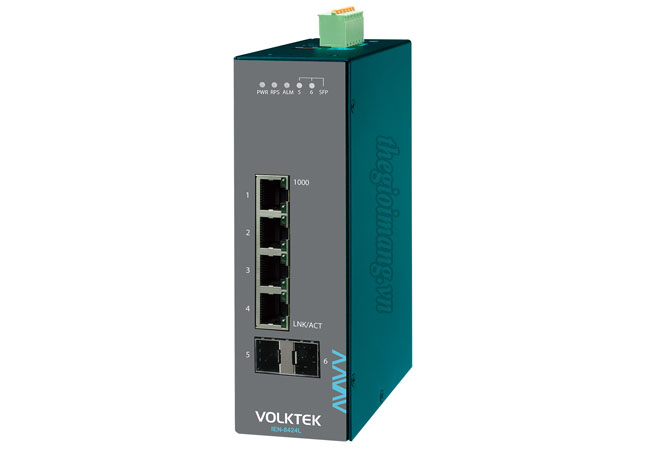

Volktek IEN-8424L - Lite Managed 4 x 10/100/1000 RJ45 & 2 x FX/GbE SFP Switch
Thiết bị chuyển mạch Công nghiệp Volktek IEN-8424L
| Model | IEN-8424L |
|---|---|
| Interface | |
| Ports | 4 x 10/100/1000BASE-T (RJ45) 2 x 100FX/GbE SFP |

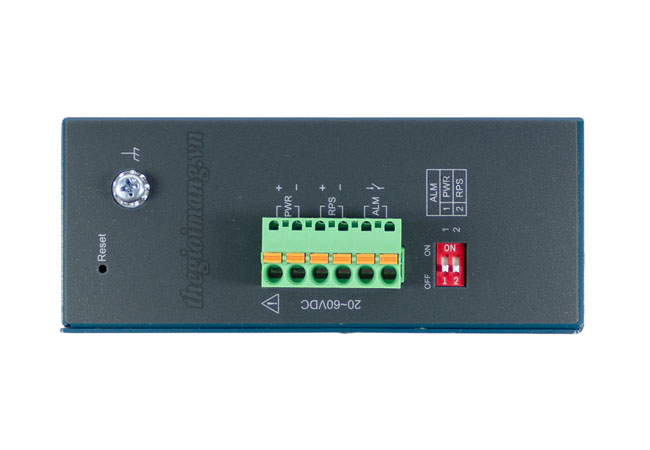

| DIP Switch | Primary/Redundant Power Voltage Drop Alarm setting |
| LED Panel | PWR, RPS, ALM, SFP, 1000, LNK/ACT |
| Features | |
| Performance | Max Jumbo Frame Size: 10KBytes MAC Table Entries: 8K Switch Fabric: 12Gbps |
| Management | CLI, Telnet, SSH, HTTP, HTTPs, SNMP v1/v2c, SNMP v3, SNMP Trap, Management VLAN (MVLAN), Firmware upgradable, Configuration Backup/Restore, Syslog, SNTP, LLDP, DHCP Client, Port Mirroring Server (service) control, Port Utilization, Alarm Information, ModbusTCP, Power Down trap Topology Map, Dashboard, Installation Wizard Port Configuration (enable/disable,speed/duplex), ONVIF, Port Statistic, System reboot from remote side User Account with authority |
| Reliability | STP/RSTP, ERPS v1/v2, Code redundancy |
| VLAN | 802.1Q VLAN, Port-based VLAN (Port Isolation) |
| Traffic Control | 802.1p QoS, Flow Control, Traffic Monitor (Abnormal Traffic Detection), Storm Control, Port Isolation, Loop Detection Storm alarm threshold per port |
| Security | ACL (Access control list), Port Security (MAC limit), Port-based 802.1X, BPDU Guard, BPDU Filter, ROOT Guard, Trusted Managed Host |
| Power | |
| Input Voltage | Primary inputs: 20~60VDC Redundant inputs: 20~60VDC |
| Connection | Teminal Block |
| Power Consumption | System: 10W |
| Alarm Relay | One relay output, 1A @ 24V DC |
| Mechanical and Environment | |
| Housing | Aluminum (IP30 protection) |
| Mounting Kit | DIN-Rail |
| Operating Temperature | -10°C~60°C (14°F~140°F) |
| Storage Temperature | -40°C~85°C (-40°F~185°F) |
| Operating Humidity | 5 to 95% RH (non-condensing) |
| Storage Humidity | 5 to 95% RH (non-condensing) |
| Weight | 430 g (0.95 lb) |
| Dimension (WxHxD) | 50 x 160 x 120 mm ( 1.97 x 6.3 x 4.72 in) |
VOLKTEK IEN-8424L
Lite Managed 4 x 10/100/1000 RJ45 & 2 x FX/GbE SFP Switch
Certifications:
● EMI:
● EMS:
● Shock: IEC 60068-2-27
● Freefall: IEC 60068-2-32
● Vibration: IEC 60068-2-6
Optional Accessories:
● Power Supply - SDR-120-48: 120W DIN-Rail 48V DC Industrial. Power Supply, -25°C~70°C (-13°F~158°F)
● GBM-104 - 1000BASE-SX 1.25G, Multi-mode SFP, 500m
● GBM-123TS - 1000BASE-LX, Bi-Di SFP TX:1310/RX:1550 Single Mode, 10Km, 0°C~70°C (32°F~158°F)
● GBM-123RS - 1000BASE-LX, Bi-Di SFP TX:1550/RX:1310 Single Mode, 10Km, 0°C~70°C (32°F~158°F)
