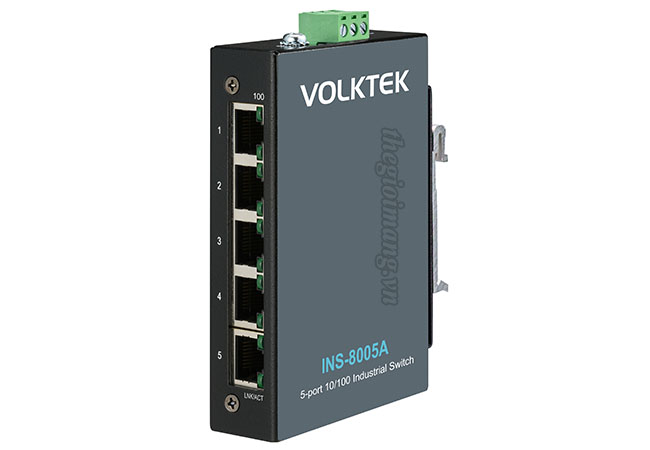

Volktek INS-8005A : Unmanaged 5 x 10/100 RJ45 Industrial Switch
Thiết bị chuyển mạch Volktek INS-8005A
| Model | INS-8005A |
|---|---|
| Interface | |
| Ports | 5 x 10/100Base-TX (RJ45) |
| Performance | Jumbo frame Size: 1552 Bytes MAC Table Entries: 1K Throughput: 14,880 pps to 10 Mbps ports 148,800 pps to 100 Mbps ports Switch Fabric: 1.0Gbps |
| QoS | Broadcast storm protection for broadcast packet |
| Power | |
| Input Voltage | 12~48VDC, 0.2A max |
| Connection | Teminal Block |
| Power Input Polarity Protection | Present |
| Current Overload Protection | Present |
| Power Consumption | 3W |
| Mechanical and Environment | |
| Housing | Aluminum (IP30 Protection) |
| Mounting | DIN-Rail, Wall Mount |
| Operating Temperature | -40°C~75°C (-40°F~167°F) |
| Storage Temperature | -40°C~85°C (-40°F~185°F) |
| Operating Humidity | 5 to 95% RH (non-condensing) |
| Storage Humidity | 5 to 95% RH (non-condensing) |
| Weight | 180 g (0.4 lbs) |
| Dimension (WxHxD) | 23.4 x 109.2 x 73.8 mm (0.92 x 4.3 x 2.9 in) |
| Certifications | Volktek INS-8005A Unmanaged 5 x 10/100 RJ45 Industrial Switch |
|
|---|---|---|
| Standards and Certifications | ||
| CE | EMI | FCC Part 15 EN 55011 EN 55032 Class B EN 61000-6-4 |
| EMS | EN 55024 EN 61000-6-2 IEC 61000-4-2 (ESD): Level 3 IEC 61000-4-3 (RS): Level 3 IEC 61000-4-4 (Burst): Level 3 IEC 61000-4-5 (Surge): Level 3 EN 61000-4-6 (CS): Level 3 IEC61000-4-8(PFMF) |
|
| Shock Test | IEC 60068-2-27 | |
| Freefall Test | IEC 60068-2-32 | |
| Vibration | IEC 60068-2-6 | |
