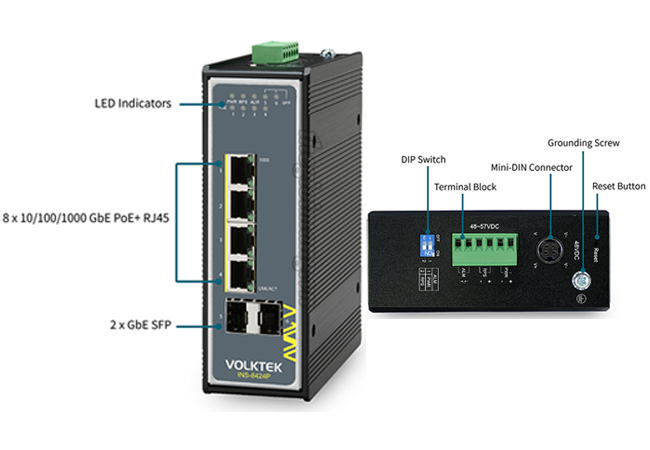

Volktek INS-8424P - Unmanaged 4 x 10/100/1000 PoE+ & 2 x GbE SFP Switch
Thiết bị chuyển mạch Công nghiệp Volktek INS-8424P
Model | INS-8424P |
---|---|
Interface | |
Ports | 4 x 10/100/1000BASE-T (PoE RJ45) 2 x GbE SFP Slots |
DIP Switch | Primary/Redundant Power Voltage Drop Alarm setting |
LED Panel | PWR, RPS, ALM, SFP, PoE, 1000, LNK/ACT |
Performance | Throughput: 14,880 pps to 10 Mbps ports 148,800 pps to 100 Mbps ports 1,488,000 pps to 1000 Mbps ports MAC table size: 8K Switch fabric: 12Gbps Jumbo Frame size: 10KBytes |
Power | |
Input Voltage | Primary inputs: 48V~57V DC Redundant inputs: 48V~57V DC |
Connection | Teminal Block, Mini-DIN |
Power Consumption | System: 10W PoE Power Budget: 120W |
Alarm Relay | One relay output, 1A @ 24V DC |
Mechanical and Environment | |
Housing | Aluminum (IP30 Protection) |
Mounting | DIN-Rail |
Wide Operating Temperature | -40°C~75°C (-40°F~167°F) |
Storage Temperature | -40°C~85°C (-40°F~185°F) |
Operating Humidity | 5 to 95% RH (non-condensing) |
Storage Humidity | 5 to 95% RH (non-condensing) |
Weight | 740 g (1.6 lb) |
Dimension (WxHxD) | 50 x 160 x 120 mm (1.97 x 6.3 x 4.72 in) |
Features & Certifications | Volktek INS-8424P Unmanaged 4 x 10/100/1000 PoE+ & 1 x 10/100/1000 RJ45 Switch |
---|---|
Features | |
Functions | VLAN Passthru |
PoE+ Functions | Up to 4 IEEE 802.3at powered devices Supports PoE Power up to 30W for each PoE port Auto detect powered device (PD) Remote Power Feeding up to 100m |
Certifications | |
EMI | FCC Part 15 Subpart B Class A EN 55022: class A EN 55011: 2009 class A EN 61000-6-4 |
EMS | EN 55024 EN 61000-6-2 EN 61000-4-2 (ESD) EN 61000-4-3 (RS) EN 61000-4-4 (Burst) EN 61000-4-5 (Surge) EN 61000-4-6 (CS) EN 61000-4-8 (PFMF) |
Shock | IEC 60068-2-27 |
Freefall | IEC 60068-2-32 |
Vibration | IEC 60068-2-6 |
Optional Accessories | |
Power Supply | SDR-480P-48: 480W DIN-Rail 48V DC Industrial Power Supply, -25°C~70°C (-13°F~158°F) |
GBM-104 | 1000BASE-SX 1.25G, Multi-mode SFP, 500 m |
GBM-123TS | 1000BASE-LX, Bi-Di SFP TX:1310/RX:1550 Single Mode, 10Km, 0°C~70°C (32°F~158°F) |
GBM-123RS | 1000BASE-LX, Bi-Di SFP TX:1550/RX:1310 Single Mode, 10Km, 0°C~70°C (32°F~158°F) |
