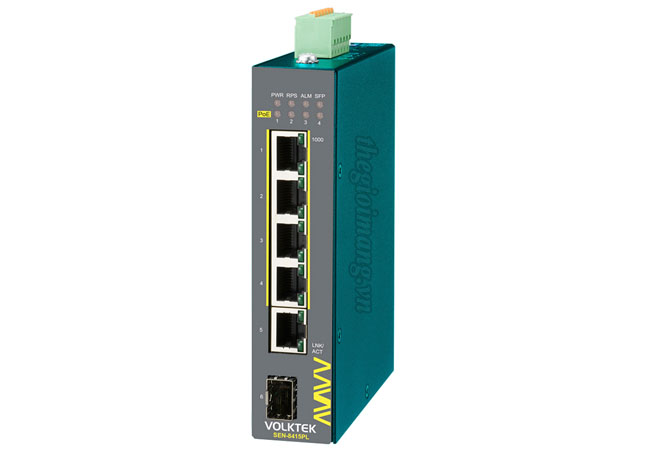

Volktek SEN-8415PL - Lite Managed 4 x 10/100/1000 PoE+ & 1 x 10/100/1000 RJ45 & 1 x FX/GbE SFP Switch
Thiết bị chuyển mạch Công nghiệp Volktek SEN-8415PL
| Model | SEN-8415PL |
|---|---|
| Interface | |
| Ports | 4 x 10/100/1000BASE-T (PoE+ RJ45) 1 x 10/100/1000BASE-T RJ45 1 x 100FX/GbE SFP |
| DIP Switch | Power voltage drop alarm setting (PWR & RPS) |
| LED Panel | PWR, RPS, ALM, SFP, PoE, 1000, LNK/ACT |
| Features | |
| Performance | Max Jumbo Frame Size: 10KBytes MAC Table Entries: 8K Switch Fabric: 20Gbps |
| Management | CLI, Telnet, SSH, HTTP, HTTPs, SNMP v1/v2c, SNMP v3, SNMP Trap, Management VLAN (MVLAN), Firmware upgradable, Configuration Backup/Restore, Syslog, SNTP, LLDP, DHCP Client, Port Mirroring Server (service) control, Port Utilization, Alarm Information, ModbusTCP, Power Down trap Topology Map, Dashboard, Installation Wizard Port Configuration (enable/disable,speed/duplex), ONVIF, Port Statistic, System reboot from remote side User Account with authority |
| Reliability | STP/RSTP, ERPS v1/v2, Code redundancy |
| VLAN | 802.1Q VLAN, Port-based VLAN (Port Isolation) |
| Traffic Control | 802.1p QoS, Flow Control, Traffic Monitor (Abnormal Traffic Detection), Storm Control, Port Isolation, Loop Detection Storm alarm threshold per port |
| Security | ACL (Access control list), Port Security (MAC limit) Port-based 802.1X, BPDU Guard BPDU Filter, ROOT Guard, Trusted Managed Host |
| PoE/PoE+ | PoE Schedulng, PD Alive Check, PoE Power on/off, PoE Priority, Power budget control per system, Power budget control per port, Power delay |
| Power | |
| Input Voltage | Primary inputs: 48~57VDC Redundant inputs: 48~57VDC Mini DIN (4 pin): 48~57VDC |
| Connection | Teminal Block, Mini-DIN |
| Power Consumption | System: 10W PoE Power Budget: 120W |
| Alarm Relay | One relay output, 1A @ 24V DC |
| Mechanical and Environment | |
| Housing | Aluminum (IP30 Protection) |
| Mounting Kit | DIN-Rail |
| Operating Temperature | -10°C~60°C (14°F~140°F) |
| Storage Temperature | -40°C~85°C (-40°F~185°F) |
| Operating Humidity | 5 to 95% RH (non-condensing) |
| Storage Humidity | 5 to 95% RH (non-condensing) |
| Weight | 290 g (0.64 lb) |
| Dimension (WxHxD) | 31 x 136 x 109.5 mm (1.22 x 5.36 x 4.31 in) |
VOLKTEK SEN-8415PL
Lite Managed 4 x 10/100/1000 PoE+ & 1 x 10/100/1000 RJ45 & 1 x FX/GbE SFP Switch
Certifications:
● EMI:
► FCC Part 15 Subpart B Class A
► EN 55032: Class A
► EN 55011: 2009 Class A
► EN 61000-6-4
● EMS:
► EN 55024
► EN 61000-6-2
► EN 61000-4-2 (ESD)
► EN 61000-4-3 (RS)
► EN 61000-4-4 (Burst)
► EN 61000-4-5 (Surge)
► EN 61000-4-6 (CS)
► EN 61000-4-8 (PFMF)
● Shock: IEC 60068-2-27
● Freefall: IEC 60068-2-32
● Vibration: IEC 60068-2-6
Optional Accessories:
● Power Supply - SDR-240-48: 240W DIN-Rail 48V DC Industrial Power Supply, -25°C~70°C (-13°F~158°F)
● GBM-104 - 1000BASE-SX 1.25G, Multi-mode SFP, 500m
● GBM-123TS - 1000BASE-LX, Bi-Di SFP TX:1310/RX:1550 Single Mode, 10Km, 0°C~70°C (32°F~158°F)
● GBM-123RS - 1000BASE-LX, Bi-Di SFP TX:1550/RX:1310 Single Mode, 10Km, 0°C~70°C (32°F~158°F)
