Điện thoại hội nghị IP Yealink CP965 : ● Android 9.0 ● Màn hình cảm ứng đa điểm 5 inch với độ phân giải 720x1280 ● Âm thanh HD, công nghệ full duplex ● Công nghệ chống ồn Yealink ● Nhận giọng nói ở 6 m và 360 độ ● 12 micrô tích hợp để nhận giọng nói ● 1 micrô tích hợp để khử tiếng ồn ● Power over Ethernet ● Gọi hội nghị 10 bên ● Hybrid UC meeting ● Built-in Wi-Fi (2.4GHz/5GHz, 802.11a/b/g/n)

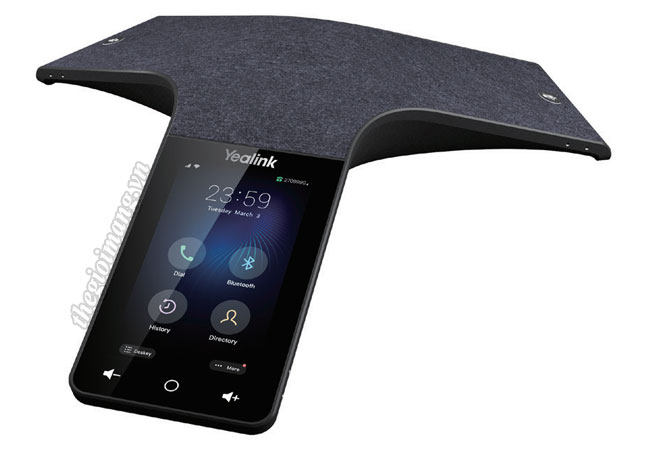

Yealink CP965 Touch-Sensitive HD IP Conference Phone
Các tính năng chung
• Android 9.0 OS
• Màn hình cảm ứng điện dung 5 ''
• Vải tiêu âm màu đen, chống thấm nước / dầu / vết bẩn
Tính năng âm thanh
• Âm thanh HD
• Công nghệ chống ồn Yealink, Lọc tiếng ồn thông minh
• Phạm vi micrô 6 mét
• 12 micrô tích hợp để nhận giọng nói 360 độ
• Micrô tích hợp để khử tiếng ồn
• Loa ngoài song công với AEC
Tính năng điện thoại
• Gọi hội nghị 10 bên
• Cuộc gọi PSTN qua Yealink CPN10 (tùy chọn)
Kết nối
• Built-in Bluetooth/Wi-Fi
• Power over Ethernet (IEEE 802.3at), class 4
• 1 USB 2.0 Type A port, 1 x USB 2.0 Type-C port
Các tính năng tiên tiến
• Hỗ trợ micrô mở rộng không dây DECT CPW65
• Hỗ trợ nền tảng quản lý thiết bị Yealink
Data sheet Yealink CP965 Touch-Sensitive HD IP Conference Phone
Thông số kỹ thuật Yealink CP965
| Audio Features | • Optimal HD audio • Yealink Noise Proof Technology • Smart Noise Filtering • 20-foot (6-meter) microphone pickup range • Apply to small to medium conference room • Built-in 12-microphone array, 360-degree voice pickup • Built-in 1-microphone array, decrease noise • Loudspeaker - Frequency: 100-20,000 Hz - Volume: 94 dB at 0.5-m peak volume • 56mm diameter and 5w speaker • Full-duplex speakerphone with AEC • Echo cancellation tail length is up to 320ms • Background noise suppression • Codecs: G722, G722.1C, G726, G.729, G.729A, G723, iLBC, Opus, PCMU (G.711A), PCMA (G.711μ) • DTMF: In-band, Out-of-band (RFC 2833) and SIP INFO • VAD, CNG, PLC, AJB, AGC |
| Phone features | • 1 SIP account • Call hold, mute, DND, call recording, hotline • 10-way conference call • Analog PSTN calls via CPN10 • Redial, call waiting, emergency call • Call forward, call transfer, call return, dial plan • Ring tone selection/import/delete • Set date time manually or automatically • Volume adjustment • Pairing via Bluetooth • Create meeting directly • Join meeting seamlessly • Active Speaker |
| Star connection | • Up to four CP965: One Master CP, three Slave CP • Wired network only • Two expansion microphones for each CP965 |
| Directory | • Local phonebook up to 1000 entries • XML/LDAP remote phonebook • Intelligent search method • Phonebook search/import/export • Call history: dialed/received/missed/forwarded • Block list |
| IP-PBX features | • Busy Lamp Field (BLF) • Multicast paging • Intercom • Anonymous call • Anonymous call rejection • Voice mail • Distinctive ringtone • Call pickup |
| Display | • 5” 720x1280 capacitive touch screen • Volume key • Home button |
| Interface | • 1 x RJ45 10/100M Ethernet port • Built-in Wi-Fi (2.4GHz/5GHz, 802.11a/b/g/n) • Built-in Bluetooth 4.2 • Power over Ethernet (IEEE 802.3at), class 4 • 1 x USB 2.0 Type-A device port • 1 x USB 2.0 Type-C device port • 1 x Security slot |
| Network and Security | • SIP v1 (RFC2543), v2 (RFC3261) • SIP server redundancy supported • IPv4/IPv6 • NAT traversal: STUN mode • Proxy mode and peer-to-peer SIP link mode • IP assignment: static/DHCP • HTTP/HTTPS web server • Time and date synchronization using SNTP • UDP/TCP/DNS-SRV (RFC 3263) • QoS: 802.1p/Q tagging (VLAN), Layer 3 ToS, DSCP • SRTP for voice encryption • Transport Layer Security (TLS1.3) • HTTPS certificate manager • AES encryption for configuration file (AES256) • Adb encryption authenticated • Digest authentication using MD5/MD5-sess • OpenVPN, L2TP VPN • WPA2/WPA3 • Secure boot • GARP (Generic Attribute Registration Protocol) |
| Management | • Configuration: browser/phone/auto-provision/Yealink Device Management Platform • Auto provision via FTP/TFTP/HTTP/HTTPS for mass deploy • Auto-provision with PnP • Zero-sp-touch, TR-069 • Reset to factory, reboot • Package tracing export, system log |
| Other physical features | • Color: Black • External Yealink PoE adapter (Optional) • Power consumption (PSU): 5.9W-14W • Power consumption (PoE): 7.3W-20W • Dimension (W*D*H): 328mm*322mm*62mm • Operating humidity: 10~90% • Storage temperature: -10~40°C (+14~104°F) |
| Package Features | • Package content: - Yealink CP965 IP conference phone - Ethernet Cable (7.5m CAT5E UTP cable) - M2×5 screw - Screwdriver - Wireless Microphone CPW25 (Optional)/CPW65 (Optional) - Quick Start Guide - Yealink PoE Adapter YLPOE30 (Optional) • Qty/CTN: 5 PCS • N.W/CTN: 7.964 kg • G.W/CTN: 9.02 kg • Giftbox size: 398mm*384mm*105mm • Carton Meas: 552mm*392mm*410mm |
