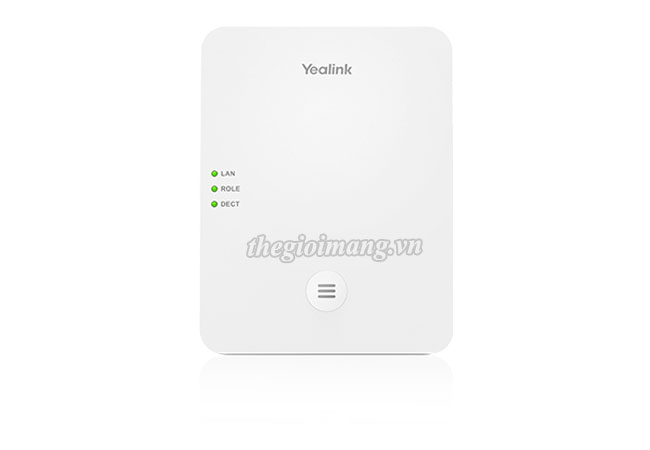

Yealink W80 DECT IP Multi-Cell System bao gồm 2 thành phần là trạm gốc W80B và DECT Manager W80DM nhằm giúp cho các tổ chức dễ dàng triển khai phủ sóng không dây tại khu vực làm việc của mình, hỗ trợ lên đến 100 thiết bị thu phát cầm tay và 100 cuộc gọi đồng thời, tương thích với Yealink W53H, W56H, CP930W và DD Phone. Phạm vi phủ sóng vô tuyến DECT lên đến 50m trong nhà và 300m ngoài trời
Hệ thống phát sóng DECT IP Yealink W80
Data sheet Yealink Cordless DECT IP Multi-Cell System W80
Thông số kỹ thuật Yealink Cordless DECT IP Multi-Cell System W80
Phone Features
> Sync over the air (Seamless handover and roaming)
> Up to 100 simultaneous calls
> Up to 30 base stations
> Up to 8 WB (4 active handsets) calls per base
> Up to 8 NB calls per base
> Up to 100 handsets
> Up to 100 VoIP accounts
> Up to 2 simultaneous calls per handset
> Call hold, call transfer, 3-way conference
> Switching between calls
> Call waiting, mute, silence, DND
> Caller ID with name and number
> Anonymous call, Anonymous call rejection
> Call forward (always/busy/no answer)
> Speed dial, voicemail, redial
> Message Waiting Indication (MWI)
> Music on hold (server-based)
> Local phonebook for up to 100 entries per handset
> Remote phonebook/LDAP/XML phonebook
> Phonebook search/import/export
> Call history (all/missed/placed/received)
> Reset to factory, reboot
> Keypad lock, emergency call
> Broadsoft directory, BroadSoft call log
> Broadworks feature key synchronization
> Shared Call Appearance (SCA)
> XML browser
> IPUI registration
> User access level
Management
> Auto-provision via TFTP/FTP/HTTP/HTTPS/RPS
> Auto-provision with PnP
> Handset upgrade: OTA (Over-The-Air)
> Configuration: browser/phone/auto-provision
> Trace package and system log export
Audio Features
> Full-duplex speakerphone
> Hearing Aid Compatibility (HAC) compliant
> DTMF
> Wideband codec: Opus, AMR-WB (optional), G.722
> Narrowband codec: AMR-NB (optional), PCMU, PCMA, G.726, G.729, G.729A, iLBC
> VAD, CNG, AGC, PLC, AJB
Network Features
> SIP v1 (RFC2543), v2 (RFC3261)
> SNTP/NTP
> VLAN (802.1Q and 802.1P)
> 802.1x, LLDP
> STUN Client (NAT Traversal)
> UDP/TCP/TLS
> IP assignment: static/DHCP
> Support outbound proxy server backup
Security
> Open VPN
> Transport Layer Security (TLS1.0/TLS1.1/TLS1.2)
> HTTPS (server/client), SRTP
> Digest authentication
> Secure configuration file via AES encryption
> Support SHA256/SHA512/SHA384
DECT
> Frequency bands: 1880 – 1900 MHz (Europe), 1920 – 1930 MHz (US)
> DECT Standards: CAT-iq2.0
Interface
> 1 x RJ45 10/100M Ethernet port
> Power over Ethernet (IEEE 802.3af), Class 1
Physical Features
> Indoor Range: 20m~50m (The ideal distance is 50m)
> Outdoor Range: 300m (in ideal conditions)
> Wall mountable
> Three LED indicators on W80DM/W80B:
- 1 x DECT LED
- 1 x Role LED
- 1 x LAN (Power Indicator & Network Status) LED
> External Yealink AC adapter： AC 100-240V Input and DC 5V/1.2A Output
> Color: Pearl White
> Dimension: 130 mm x 100 mm x 25.1 mm
> Operating humidity: 10~95%
> Operating temperature: 0~+40°C (+32~104°F)
Package Features
> Package content:
- W80DM/W80B
- Expansion Screws
- Quick Start Guide
- Power Adapter (optional)
