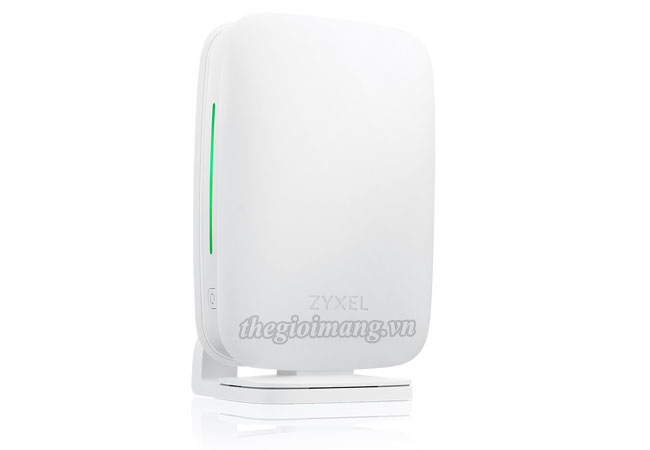

Model	Multy M1
System
Speed Rating (per unit)	• WiFi 6 AX1800 (574 + 1201 Mbps)
Wireless Standard	• IEEE 802.11 ax/n/b/g 2.4 GHz • IEEE 802.11 ax/ac/n/a 5 GHz • 2.4GHz AX: 2x2 (Tx/Rx) 1024 QAM 20/40MHz, up to 574 Mbps • 5GHz AX: 2x2 (Tx/Rx) 1024 QAM 20/40/80MHz, up to 1201 Mbps • Compatible with 802.11a/b/g/n/ac WiFi standards
Transmission Speed	• Transmit & Receive: ■ 574Mbps* for 2.4 GHz ■ 1201Mbps* for 5 GHz • MU-MIMO capable for simultaneous data streaming • Beamforming for 2.4GHz & 5GHz Bands
App
Multy app	• Easy to setup ■ Support myZyxelCloud SSO (Single-Sign-On) system ■ Support location check to suggest Multy node placement for better signal strength and coverage • Support Internet access control ■ Block or allow specific group based on time schedule • Support guest network setting ■ Share network name and password via QR code for guests ■ Monitor of active concurrent guest devices connected • Diagnose network via speed test • Push notification ■ New device connected ■ New firmware available ■ Speed test result • Remote management • Automatic updates for new features • Support language: EN/ZH/DE/ES/FR/IT/PT
Software	• Security ■ IPSec Pass-Through ■ PPTP Pass-Through ■ L2TP Pass-Through ■ VPN Client/Server Support (OpenVPN) ■ WPA3-PSK ■ WPS Support ■ Guest Network ■ Automatic Firmware Update • Wireless Features ■ Guest WiFi ■ WiFi Protected Setup (WPS) ■ WiFi Multimedia (WMM) ■ Auto channel selection ■ Support 3 SSIDs for multiple purpose ■ Multicast-Unicast Conversion ■ Traffic separation from host network ■ Band Steering ■ AP Steering • Routing Protocols ■ WAN type: Static IP, DHCP, PPPoE ■ IGMP v1/v2/v3 ■ Auto-IP change ■ IPv4/IPv6 ■ Network Address Translation (NAT) ■ DHCP server/client ■ Dynamic DNS • Firewall ■ Stateful Packet Inspection (SPI) ■ Deny of Service (DoS) Prevention ■ MAC Filter ■ TCP/IP Filter • Operation Mode ■ Standard mode (Router mode) ■ Bridge mode (Access point mode) • Web Browser ■ Advanced wired & wireless setup and management ■ Diagnose & speed test ■ Parental Control

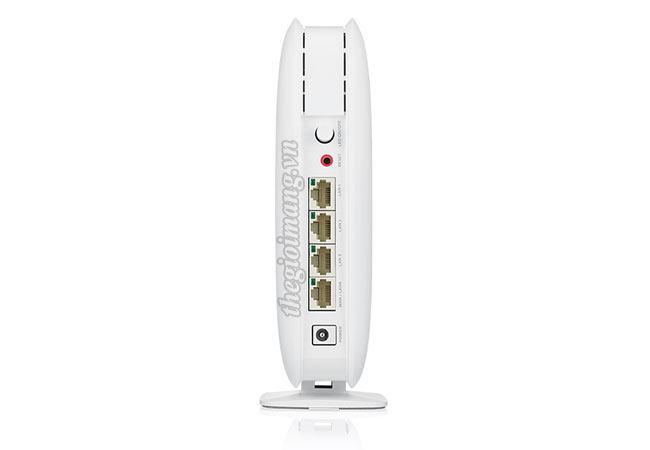

Hardware	• CPU: 880 MHz Dual-Core • Memory: 256MB RAM • Flash: NAND Flash 128MB • Antenna: 2 Dual-Band Internal Antennas • Buttons: ■ LED On/Off ■ WPS ■ Reset • WAN: One 10/100/1000 Mbps Ethernet RJ-45 port with auto MDI/MDIX support • LAN : Three 10/100/1000 Mbps Ethernet RJ-45 ports with auto MDI/MDIX support • LED indicator: Status indication • Power: 12 V DC, 1.5 A • Power consumption: 15 watt
Physical Specifications	• Item dimensions (LxWxH): 192 x 133 x 66 mm • Item weight: 254 g • Packing dimensions(LxWxH): 281x 238 x 151mm • Packing weight: Pack of Two: 1.72Kg
Environmental Specifications
Operating Environment	• Temperature: 0°C to 40°C (32°F to 104°F) • Humidity: 10% to 90% (Non-condensing)
Storage Environment	• Temperature: -30°C to 70°C (-22°F to 158°F) • Humidity: 10% to 90% (Non-condensing)
