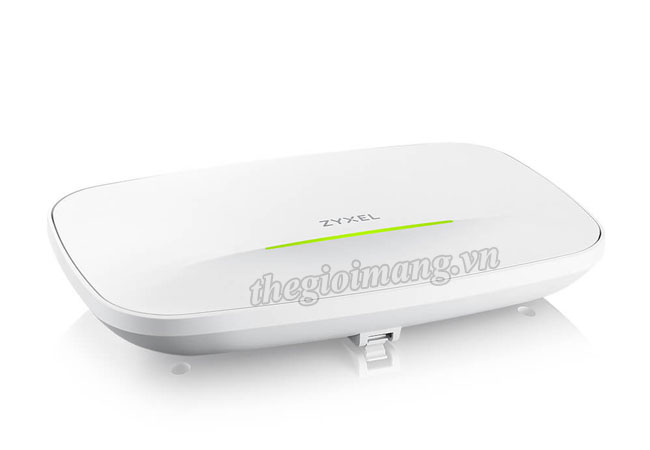

Bộ phát Wi-Fi 7 trong nhà NebulaFlex Zyxel NWA110BE
Zyxel NWA110BE là bộ truy cập Wi-Fi 7 hiệu suất cao băng tần kép (2,4 GHz: 2x2:2, 5 hoặc 6 GHz: 4x4:2) cung cấp tốc độ lên đến 6,5Gbps, đảm bảo độ trễ thấp hơn để phản hồi theo thời gian thực. NWA110BE, được trang bị công nghệ NebulaFlex, mang đến cho người dùng sự linh hoạt để chuyển đổi giữa chế độ độc lập hoặc chế độ quản lý đám mây Nebula khi cần.
Thông số kỹ thuật
| Model | NWA110BE |
| Wireless | |
| Standard | • IEEE 802.11 be/ax/ac/n/g/b/a |
| MIMO | • MU-MIMO |
| Wireless speed | • 2.4GHz: 688Mbps • 5GHz: 4324Mbps • 6GHz: 5764Mbps |
| Frequency band | 2.4GHz • USA (FCC): 2.412 to 2.462GHz • Europe (ETSI): 2.412 to 2.472GHz 5GHz • USA (FCC): 5.15 to 5.35GHz; 5.470 to 5.850GHz • European (ETSI): 5.15 to 5.35GHz; 5.470 to 5.725GHz 6GHz • USA (FCC): 5.925 to 6.425GHz; 6.525 to 7.125GHz • European (ETSI): 5.925 to 6.425GHz |
| Bandwidth | • 20-, 40-, 80-, 160-, 240- and 320-MHz |
| Conducted typical transmit output power | • US (2.4GHz/5GHz/6GHz) 26/28/25dBm • EU (2.4GHz/5GHz/6GHz) 19/26/22dBm |
| RF Design | |
| Antenna type | • Internal antenna |
| Antenna gain | • 2.4GHz 1.49dBi, 2x2:2SS • 5GHz 2.78dBi, 4x4:2SS • 6GHz 3.17dBi, 4x4:2SS |
| Minimum receive sensitivity | • Min. Rx sensitivity up to -99dBm |
| WLAN Feature | |
| Band steering | • Yes |
| WDS/Mesh*2 | • Yes |
| Fast roaming | • Pre-authentication, PMK caching and 802.11r/k/v |
| DCS | • Yes |
| Load balancing | • Yes |
| Advanced cellular coexistence | • Yes |
| Security | |
| Encryption | • WEP/WPA/WPA2/WPA3 |
| Authentication | • IEEE 802.1X/RADIUS authentication |
| Access management | • L2-isolation/MAC filtering/Rogue AP detection |
| Networking | |
| IPv6 | • Yes |
| VLANs | • Yes |
| WMM | • Yes |
| U-APSD | • Yes |
| Management | |
| Operating mode | • Cloud managed/standalone |
| ZON Utility | • Discovery of Zyxel switches, APs and gateways • Centralized and batch configurations ■ IP configuration ■ IP renew ■ Device reboot ■ Device locating ■ Web GUI access ■ Firmware upgrade ■ Password configuration |
| Web UI/CLI | • Yes |
| SNMP | • Yes |
| Physical Specifications | |
| Item | • Dimensions (WxDxH) 250 x 160 x 47mm • Weight 810g |
| Packing | Dimensions (WxDxH) 279.5 x 180.5 x 66 mm Weight 1035g |
| Included accessories | • Mount plate • Mounting screws |
| MTBF (hr) | • 691,722 |
| Physical Interfaces | |

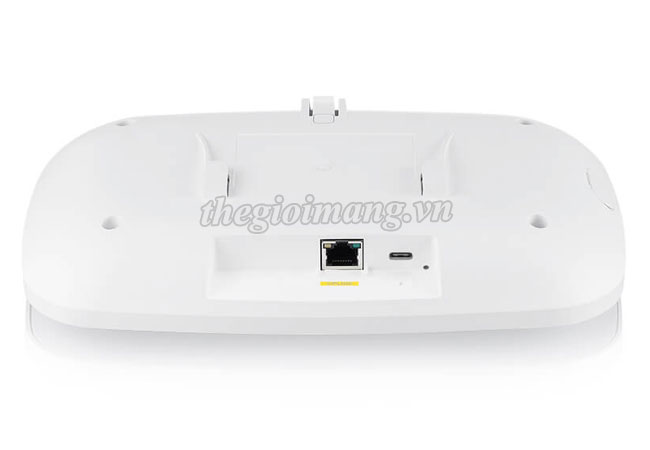

| Ethernet port | • 1 x 1/2.5GbE LAN |
| Power | • PoE (802.3at): power draw 21.5W • DC input: USB PD 15 VDC 2A (Type C) |
| PoE modes | • IEEE 802.3af No wireless • IEEE 802.3at Unrestricted • IEEE 802.3bt Unrestricted |
| Environmental Specifications | |
| Operating | • Temperature 0°C to 50°C • Humidity 10% to 95% (non-condensing) |
| Storage | • Temperature -40°C to 70°C • Humidity 10% to 90% (non-condensing) |
| Certifications | |
| Radio | • FCC Part 15C, FCC Part 15E, FCC Part 2.1091, ETSI EN 300 328, EN 301 893, Draft EN 303 687, EN 50385, EN 50665, EN IEC 62311, LP0002 |
| EMC | • FCC Part 15B, EN 301 489-1, EN 301 489-17, EN55032, EN55035, EN61000-3-2/-3, EN60601-1-2, BSMI CNS15936 |
| Safety | • EN 62368-1, IEC 62368-1, BSMI CNS15598-1 |
