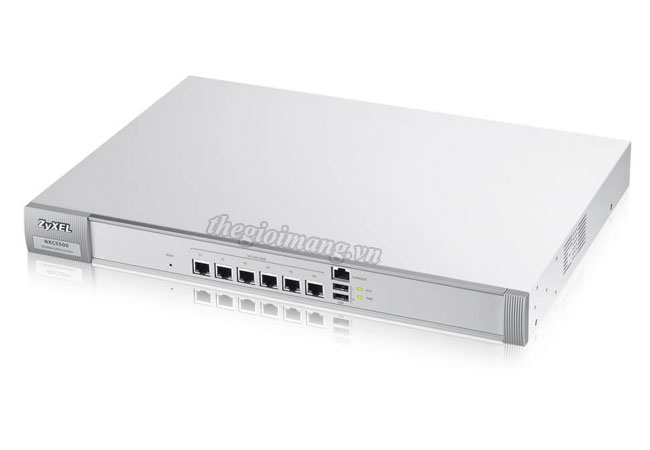

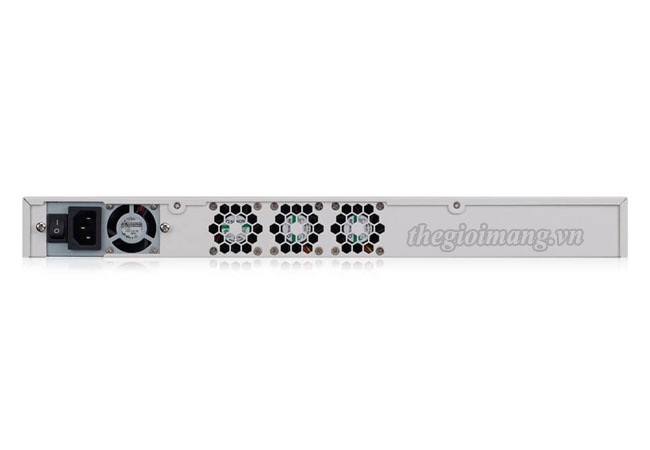

Thiết bị Wireless Controller Zyxel NXC5500
| Model | NXC5500 |
| Port Density | |
| 10/100/1000 Mbps LAN ports | 6 |
| USB port | 2 |
| Performance | |
| Throughput (Gbps) | 6 |
| Managed AP number (default/max.) | 64/1024 |
| WLAN Features | |
| Wireless security (WPA/WPA2-PSK, Enterprise) | Yes |
| Dynamic channel selection | Yes |
| Wireless multicast setting | Yes |
| AP load balancing | Yes |
| AP planning and site-survey | Yes (AP planning and coverage detection) |
| ZyMesh | Licensed service |
| Band select | Yes |
| Client signal threshold | Yes |
| Auto healing | Yes |
| Fast roaming | Pre-authentication, PMK caching and 802.11r/k/v |
| Security Features | |
| IEEE 802.1X | Yes |
| IEEE 802.11w | Yes |
| Layer-2 isolation | Yes |
| Web authentication | Yes |
| Stateful firewall | Yes |
| MAC filtering | Yes |
| RADIUS authentication | Yes |
| Microsoft AD authentication | Yes |
| LDAP authentication | Yes |
| Embedded RADIUS server | Yes (4096 user) |
| Identity-based user security management | Yes |
| Wireless intrusion detection | Rogue AP detection and containment |
| Control and Provisioning | |
| Managed AP discovery | Broadcast/DHCP option/DNS/Manual |
| CAPWAP | Yes |
| AP data forwarding mode | Distributed (local bridge) and Centralized (data tunnel) |
| Management interface | HTTP/HTTPS/Telnet/SSH/SNMP |
| Output power control | Yes |
| Wire/wireless packet capture | Yes |
| Network | |
| VLANs | Yes |
| DHCP client | Yes |
| DHCP relay, server | Yes |
| NAT | Yes |
| Static routing | 256 |
| Policy routing | 1000 |
| Access Control | |
| MAC access control list | Yes |
| MAC authentication | Yes, internal and external RADIUS |
| Guest account generator | Yes (2048 user) |
| Customizable web login portal | Yes |
| QoS | |
| WMM/power save | Yes |
| DiffServ marking | Yes |
| AP load balancing | Yes |
| Management Features | |
| CLI with SSH | Yes |
| Web UI with SSL | Yes |
| myZyXEL.com 2.0 | Yes |
| SNMP | v1, v2c, v3 |
| Multi-level administration roles | Admin, Limited Admin, Guest Manager |
| ZyXEL One Network | |
| ZON Utility | • Discovery of ZyXEL switches, APs, WLAN controllers and gateways • Centralized and batch configurations ■ IP configuration ■ IP renew ■ Device reboot ■ Device factory reset ■ Device locating ■ Web GUI access ■ Firmware upgrade ■ Password configuration ■ One-click quick association with ZyXEL AP Configurator (ZAC) |
| User/Application Management | |
| Authentication | RADIUS/Microsoft AD/LDAP/Local |
| Local user database | Yes (4096) |
| User/group policy | Yes |
| Authentication by QR code | Yes |
| Captive portal | Yes |
| External portal page | Yes |
| Page upload | Yes |
| Other | |
| System diagnostic tool | Yes |
| Certification | |
| EMC | • EMI and susceptibility (Class A) • FCC Part 15.107 and 15.109 • CE EN55022, EN55024 • ERP Lot 6 • BSMI CNS13438 |
| Safety | • LVD EN60950-1: A12 • BSMI CNS14336 |
| Power Requirements | |
| Power supply | 100 - 240 VAC |
| Max. power consumption (watt) | 138 |
| Physical Specifications | |
| Item Dimensions (WxDxH)(mm/in.) | 438 x 302.7 x 44/17.24 x 11.92 x 1.73 |
| Item Weight (kg/lb.) | 4.750/10.47 |
| Packing Dimensions (WxDxH)(mm/in.) | 680 x 425 x 190/26.77 x 16.73 x 7.48 |
| Packing Weight (kg/lb.) | 8.525/18.79 |
| Included accessories | • Ethernet cable • Console cable • Power cord • Rack mounting kit |
| Environmental Specifications | |
| Operating Temperature | 0°C to 40°C/32°F to 104°F |
| Operating Humidity | 10% to 90% (non-condensing) |
| Storage Temperature | -30°C to 70°C/-22°F to 158°F |
| Storage Humidity | 10% to 90% (non-condensing) |
| MTBF (hr) | 43,800 |
