Tường lửa Firewall Zyxel USG FLEX 700 :

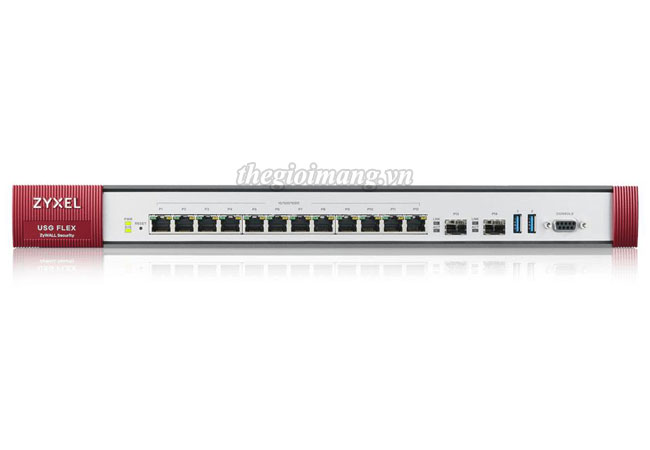

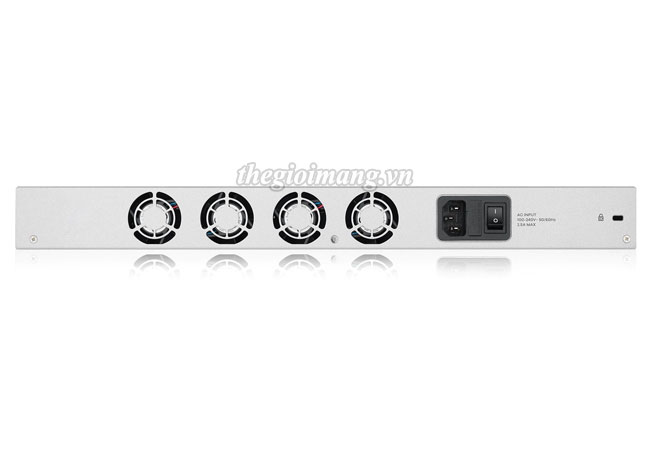

Thiết bị tường lửa Firewall Zyxel USG FLEX 700
Model | USG FLEX 700 |
Hardware Specifications | |
10/100/1000 Mbps RJ-45 ports | 12 (configuratble), 2 x SFP (configurable) |
USB3.0 ports | 2 |
Console port | Yes (DB9) |
Rack-mountable | Yes |
Fanless | - |
System Capacity & Performance | |
SPI firewall throughput (Mbps) | 5,400 |
VPN throughput (Mbps) | 1,100 |
VPN IMIX throughput (Mbps) | 550 |
IDP throughput (Mbps) | 2,000 |
AV throughput (Mbps) | 1,450 |
UTM throughput (AV and IDP) | 1,350 |
Max. TCP concurrent sessions | 1,600,000 |
Max. concurrent IPsec VPN tunnels | 500 |
Concurrent SSL VPN users | 150 |
VLAN interface | 128 |
Concurrent devices logins (default/max.) | 500/800 |
Speedtest Performance | |
SPI firewall throughput (Mbps) | 840 |
Key Features | |
Security Service | |
Sandboxing | Yes |
Web Filtering | Yes |
Application Patrol | Yes |
Anti-Malware | Yes |
IPS | Yes |
Reputation Filter | Yes |
Geo Enforcer | Yes |
SecuReporter | Yes |
Collaborative Detection & Response | Yes |
Device Insight | Yes |
Security Profile Sync (SPS) | Yes |
SSL (HTTPS) Inspection | Yes |
2-Factor Authentication | Yes |
VPN Features | |
VPN | IKEv2, IPSec, SSL, L2TP/IPSec |
Microsoft Azure | - |
Amazon VPC | Yes |
WLAN Management | |
Default number of managed AP | 8 |
Recommend max. AP in 1 AP Group | 200 |
Secure WiFi Service | Yes |
Maximum Number of Tunnel-Mode AP | 66 |
Maximum Number of Managed AP | 264 |
Connectivity Management | |
Nebula Cloud Managed Mode | Yes |
Device HA Pro | Yes |
Link Aggregation (LAG) | Yes |
Concurrent devices logins (max.) | 1500 |
Power Requirements | |
Power input | 100-240V AC, 50/60Hz, 2.5A max. |
Max. power consumption (Watt Max.) | 46 |
Heat dissipation (BTU/hr) | 120.1 |
Physical Specifications | |
Item Dimensions (WxDxH) (mm) | 430 x 250 x 44 |
Weight (Kg) | 3.3 |
Packing Dimensions (WxDxH) (mm) | 519 x 392 x 163 |
Weight (kg) | 4.8 |
Included accessories | • Power cord • Rack mounting kit |
Environmental Specifications | |
Operating Operating Temperature | 0°C to 40°C/32°F to 104°F |
Operating Humidity | 10% to 90% (non-condensing) |
Storage Temperature | - 30°C to 70°C/- 22°F to 158°F |
Storage Humidity | 10% to 90% (non-condensing) |
MTBF (hr) | 947736 |
Acoustic Noise | 24.5dBA on < 25degC Operating Temperature, 41.5dBA on full FAN speed |
Certifications | |
EMC | FCC Part 15 (Class A), CE EMC (Class A), C-Tick (Class A), BSMI |
Safety | LVD (EN60950-1), BSMI |
