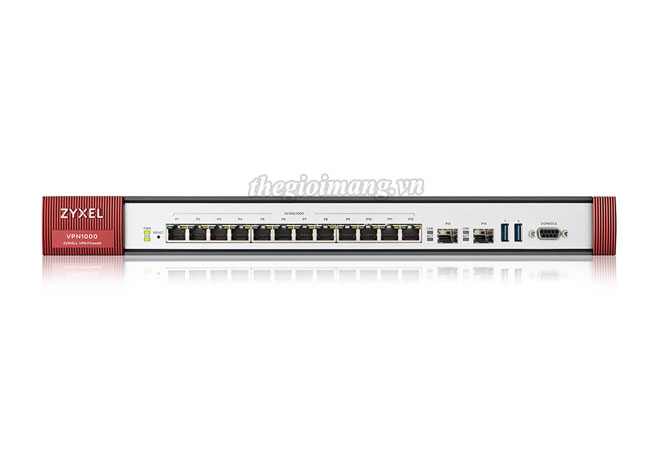

Thiết bị Zyxel VPN Firewall ZyWALL VPN1000
Model | ZyWALL VPN1000 |
Hardware Specifications | |
Interfaces | 12x GbE (configurable), 2x SFP (configurable) |
USB3.0 ports | 2 |
Console port | Yes (DB9) |
Rack-mountable | Yes |
System Capacity & Performance | |
SPI firewall throughput (Mbps) | 8,000 |
VPN throughput (Mbps) | 1,500 |
VPN IMIX Throughput (Mbps) | 600 |
Max. TCP concurrent sessions | 3,000,000 |
Max. concurrent IPSec VPN tunnels | 1,000 |
Recommended gateway-to gateway IPSec VPN tunnels | 300 |
Concurrent SSL VPN users (default/max.) | 250/500 |
VLAN interface | 128 |
Concurrent devices logins (default/ max.) | 800/4000 |
Speed Test Performance | |
SPI firewall throughput (Mbps) | 930 |
WLAN Management | |
Default Number of Managed AP | 8 |
Secure WiFi Service | Yes |
Maximum Number of Tunnel-Mode AP | 258 |
Maximum Number of Managed AP | 1032 |
Recommend max. AP in 1 AP Group | 300 |
Key Features | |
DPI Firewall | Yes |
VPN | IKEv2, IPSec, SSL, L2TP/IPSec |
SSL (HTTPS) inspection | Yes (SP350E)/10 |
Amazon/Azure VPC | Yes |
EZ Mode | - |
Hotspot Management | Yes |
Ticket printer support /Support Q'ty (max.) | Yes (SP350E) / 10 |
Microsoft Azure | Yes |
Amazon VPC | Yes |
Device HA Pro | Yes |
Power Requirements | |
Power input | 100-240 V AC, 50/60 Hz, 2.5 A max. |
Max. power consumption (watt) | 46 |
Heat dissipation (BTU/hr) | 120.1 |
Physical Specifications | |
Item Dimensions (WxDxH) (mm/in.) | 430 x 250 x 44/16.93 x 9.84 x 1.73 |
Weight (kg/lb.) | 3.3/7.28 |
Packing Dimensions (WxDxH) (mm/in.) | 519 x 392 x 163/20.43 x 15.43 x 6.42 |
Weight (kg/lb.) | 4.8/10.58 |
Included accessories | • Power cord • Rack mounting kit |
Environmental Specifications | |
Operating environment Temperature | 0°C to 40°C/32°F to 104°F |
Humidity | 10% to 90%(non-condensing) |
Storage environment Temperature | -30°C to 70°C/-22°F to 158°F |
Humidity | 10% to 90%(non-condensing) |
MTBF (hr) | 444,930 |
