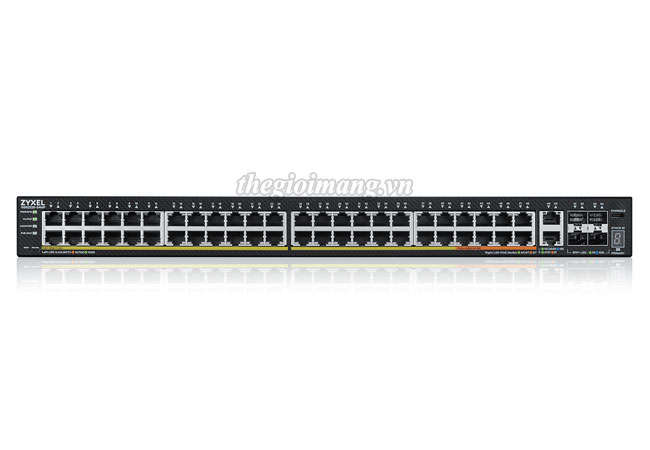

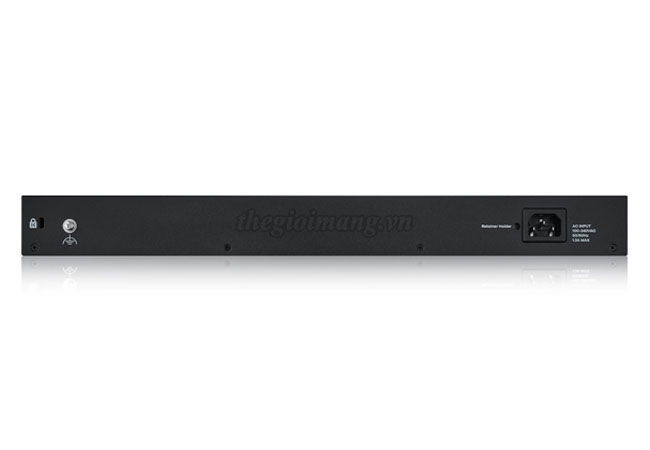

Switch Zyxel XGS2220-54HP 48-port GbE L3 Access PoE+ :
Thiết bị chuyển mạch Switch Zyxel XGS2220-54HP
| Model | XGS2220-54HP |
| Port Density | |
| Total port count | 54 |
| 100/1000 Mbps | 48 |
| 100M/1G/2.5G/5G/10G Ethernet (RJ-45) | 2 |
| 1G SFP/10G SFP+ | 4 |
| PoE | |
| PoE ports | 50 |
| Total PoE budget (watts) | 600 |
| IEEE 802.3at (PoE+) | Port 1-40 |
| IEEE 802.3bt (PoE++, 60 W) | • 100/1000 Mbps: Port 41 - 48 • 1G/2.5G/5G/10G: Port 49 - 50 |
| Performance | |
| Switching capacity (Gbps) | 261 |
| Forwarding rate (Mpps) | 161 |
| Packet buffer (byte) | 2 M |
| MAC address table | 32 K |
| Jumbo frame (byte) | 9 K |
| L3 forwarding table | • Max. 1 K IPv4 entries • Max. 512 IPv6 entries |
| Static route | 64 |
| IP interface | 32 |
| Flash/RAM | 64 MB/1 GB |
| Power | |
| Input | 100 - 240 V AC, 50/60 Hz |
| Max. power consumption (watt) | 754.11 |
| Physical Specifications | |
| Item Dimensions (WxDxH) (mm) | 441 x 330 x 44 |
| Item Weight (kg) | 5 |
| Packing Dimensions (WxDxH) (mm) | 580 x 503 x 95 |
| Packing Weight (kg) | 6.33 |
| Included accessories | • Power cord • Rack mounting kit |
| ESD/Surge Protection | |
| Ethernet port surge protection | 2 KV |
| Power supply surge protection Line-GND | 2 KV |
| Power supply surge protection Line-Line | 1 KV |
| Ethernet port ESD protection (air/contact) | 8 KV/6 KV |
| Environmental Specifications | |
| Operating Temperature | -20°C to 50°C |
| Operating Humidity | 10% to 95% (non-condensing) |
| Storage Temperature | -40°C to 70°C |
| Storage Humidity | 10% to 90% (non-condensing) |
| MTBF (hr) | 214388 |
| Heat dissipation (BTU/hr) | 2571.52 |
| Acoustic noise @ 25°C (min/max, dBA) | 25.21/50.23 |
