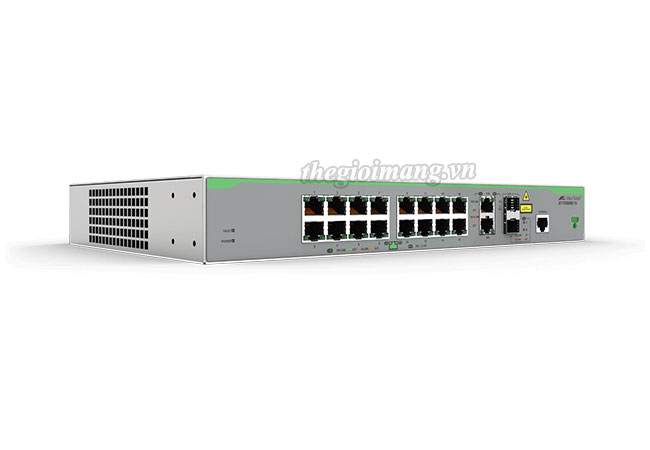

AT-FS980M/18 16-port 10/100TX switch with 2 Gigabit/SFP...

Hỗ trợ trực tuyến

Hỗ trợ Tư Vấn

0909648899

Kinh Doanh 01

0917684899

Kinh Doanh 02

0917993131

Kinh Doanh 03

0915793030

Kinh Doanh 04

0906641689

Hỗ trợ Kỹ Thuật 1

02862578356

Hỗ trợ Kỹ Thuật 2

02862578355

Mô tả sản phẩm

Thông số kỹ thuật Switch Allied Telesis FS980M/18

Performance
4 Gbps of stacking bandwidth
Supports 10K jumbo frames
Wirespeed multicasting
Up to 16K MAC addresses
512 MB DDR2 SDRAM
128 MB flash memory
Switching Fabric	7. 2 Gbps
Forwarding Rate	5.36 Mpps
Interface connections
10/100T (RJ-45)	16
10/100/1000T (RJ-45)	2 combo
100/1000X SFP PORTS	2 combo
Power characteristics
MAX POWER CONSUMPTION (W) NO POE LOAD	12
MAX HEAT DISSIPATION (BTU/HR) NO POE LOAD	42
MAX POWER CONSUMPTION (W) FULL POE+ LOAD
MAX HEAT DISSIPATION (BTU/HR) FULL POE+ LOAD
Standard and compliance
IEEE 802.2	Logical Link Control (LLC)
IEEE 802.3	Ethernet
IEEE 802.3ab	1000BASE-T
IEEE 802.3af	Power over Ethernet (PoE)
IEEE 802.3at	Power over Ethernet plus (PoE+)
IEEE 802.3x	Flow control - full-duplex operation
IEEE 802.3z	1000BASE-X
Environmental Specifications
Operating ambient temp	0°C to 50°C
Storage temp	20°C to 60°C
Operating humidity	5% to 90% non-condensing
Storage humidity	5% to 95% non-condensing
Physical Characteristics
Dimensions	330 x 204 x 43.6 mm
Weight	4.0 kg
