Thông số kỹ thuật Switch Allied Telesis FS980M/28DP
| Performance | |
| 4 Gbps of stacking bandwidth | |
| Supports 10K jumbo frames | |
| Wirespeed multicasting | |
| Up to 16K MAC addresses | |
| 512 MB DDR2 SDRAM | |
| 128 MB flash memory | |
| Switching Fabric | 12.8 Gbps |
| Forwarding Rate | 9.52 Mpps |
| Interface connections | |
| 10/100T (RJ-45) | 24 |
| 10/100/1000T (RJ-45) | |
| 100/1000X SFP PORTS | 4 |
| Power characteristics | |
| MAX POWER CONSUMPTION (W) NO POE LOAD | 49 |
| MAX HEAT DISSIPATION (BTU/HR) NO POE LOAD | 170 |
| MAX POWER CONSUMPTION (W) FULL POE+ LOAD | 520 |
| MAX HEAT DISSIPATION (BTU/HR) FULL POE+ LOAD | 1,800 |
| Standard and compliance | |
| IEEE 802.2 | Logical Link Control (LLC) |
| IEEE 802.3 | Ethernet |
| IEEE 802.3ab | 1000BASE-T |
| IEEE 802.3af | Power over Ethernet (PoE) |
| IEEE 802.3at | Power over Ethernet plus (PoE+) |
| IEEE 802.3x | Flow control - full-duplex operation |
| IEEE 802.3z | 1000BASE-X |
| Environmental Specifications | |
| Operating ambient temp | 0°C to 50°C |
| Storage temp | 20°C to 60°C |
| Operating humidity | 5% to 90% non-condensing |
| Storage humidity | 5% to 95% non-condensing |
| Physical Characteristics | |
| Dimensions | 440 x 425 x 44 mm |
| Weight | |

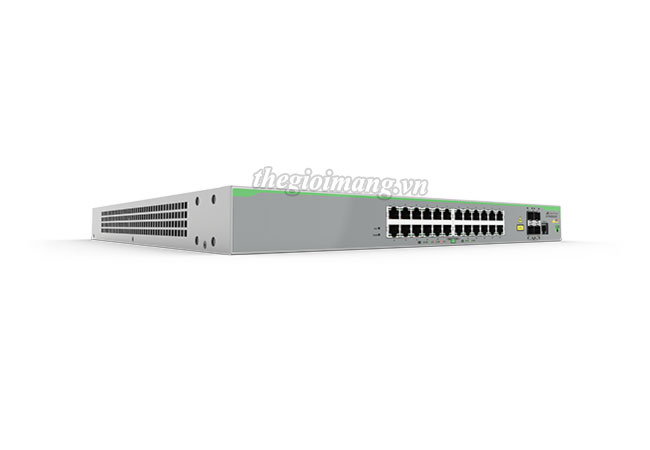

AT-FS980M/28DP 24-port 10/100TX PoE+ switch with 4 SFP uplinks and dual fixed AC power supply
