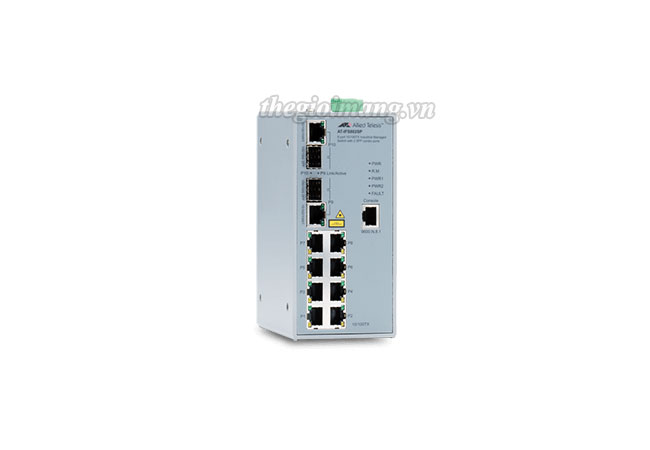

Thông số kỹ thuật Switch Allied Telesis IFS802SP
| Ethernet Communications | |
| Standard | IEEE 802.3 IEEE 802.3u IEEE 802.3ab IEEE 802.3z IEEE 802.3ad IEEE 802.3x IEEE 802.3ad IEEE 802.1d IEEE 802.1p IEEE 802.1Q IEEE 802.1x IEEE 802.1ab |
| Port Connector | 10/100TX: RJ-45 x 8 SFP Combo: RJ-45 x 2, 100/1000 SFP x 2 Console port : RJ45 x 1 |
| Performance | |
| Wire-speed forwarding rate | 14,880pps for 10Mbps Ethernet 148,880pps for 100Mbps Ethernet 1,488,000pps for 1000Mbps Ethernet |
| Mac Address | 8K |
| Packet Buffer | 1Mbits |
| DRAM | 32Mbytes |
| Flash ROM | 4Mbytes |
| Switching Fabric | 5.6Gbps |
| Forwarding Rate | 4.16Mpps |
| Power | |
| Power consumption | 142.5 Watts@48V (Full load) support for up to 8 class 3 powered devices at 15.4 watts |
| Power Input | 48VDC, Redundant power |
| Power Connector | 6 poles terminal block x 1 |
| Relay Output | 1A @ 24VDC |
| Environment | |
| Operating Temperature | -40 ~ 75 oC (-40 ~ 167 oF) |
| Storage Temperature | -40 ~ 85 oC (-40 ~ 18 5 oF) |
| Humidity Operating | 5 to 95 % |
| Humidity Storage | 5 to 95 % |
| Physical Characteristics | |
| Dimensions | 7.2cm x 11.5cm x 15.2cm |
| Weight | 1.42kg (3.2lbs) |
