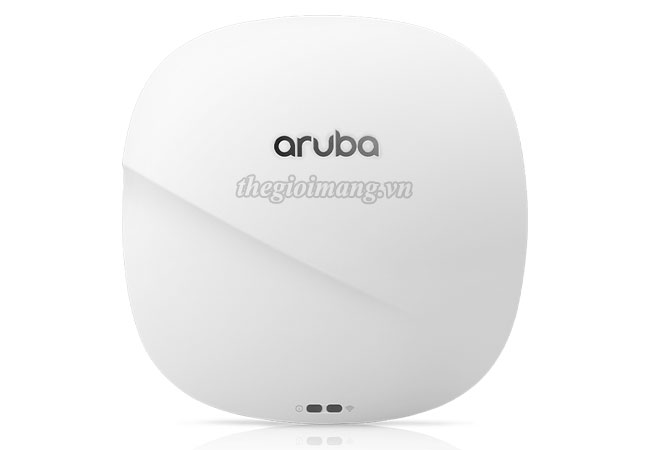

Aruba AP-345 (JZ031A)

JZ031A - Aruba AP-345 (RW) Dual 4x4:4 MU-MIMO Radio Internal Antennas Smart Rate Unified Campus AP.
  • Giá bán : Liên hệ để có giá tốt
  • Tình trạng : Còn hàng


Thiết bị phát sóng Wifi Aruba AP-345 (JZ031A)

Model AP-345 (JZ031A)
Wi-Fi Radio Specifications
  • AP type: Indoor, dual radio, 5 GHz 802.11ac 4x4 MIMO and 2.4 GHz 802.11n 4x4 MIMO
    • The 2.4 GHz radio supports all 802.11ac rates as well (proprietary extension)
  • Software-configurable dual radio supports:
    • Dual-radio mode: 5 GHz (Radio 0) and 2.4 GHz (Radio 1)
    • Dual-5 GHz mode: upper 5 GHz (Radio 0) and lower 5 GHz (Radio 1)
  • 5 GHz:
    • Four spatial stream Single User (SU) MIMO for up to 1,733 Mbps wireless data rate to individual 4SS VHT80 or 2SS VHT160 client devices
    • Four spatial stream Multi User (MU) MIMO for up to 1,733 Mbps wireless data rate to up to four 1SS or two 2SS MU-MIMO capable client devices simultaneously
    • Peak datarate increases to 2,166 Mbps when using 1024-QAM modulation (proprietary extension)
  • 2.4 GHz:
    • Four spatial stream Single User (SU) MIMO for up to 600 Mbps wireless data rate to individual 4SS HT40 client devices, and up to 800 Mbps to individual 4SS VHT40 devices (proprietary extension)
  • Support for up to 256 associated client devices per radio, and up to 16 BSSIDs per radio
Wi-Fi Antennas
  • AP-345: Internal antenna models. A total of eight internal omni-directional downtilt antennas
    • Radio 1: four cross-polarized dual-band downtilt omni-directional antennas for 4x4 MIMO with peak antenna gain of 5.8dBi (2.4 GHz) and 5.6dBi (5 GHz) per antenna.
      • With AP in dual-radio mode: used for 2.4 GHz only
      • With AP in dual-5 GHz mode: used for lower 5 GHz only
    • Radio 0: four cross-polarized 5 GHz downtilt omnidirectional antennas for 4x4 MIMO with peak antenna gain of 5.5dBi per antenna
      • With AP in dual-radio mode: used for full 5 GHz only
      • With AP in dual-5 GHz mode: used for upper 5 GHz only
    • All internal antennas are optimized for horizontal ceiling mounted orientation of the AP. The downtilt angle for maximum gain is roughly 30 degrees.
    • Combining the patterns of all antennas per radio, the peak gain of the average (effective) pattern is:
      • Radio 1: 3.1dBi in 2.4 GHz and 2.2dBi in 5 GHz
      • Radio 0: 2.7dBi in 5 GHz

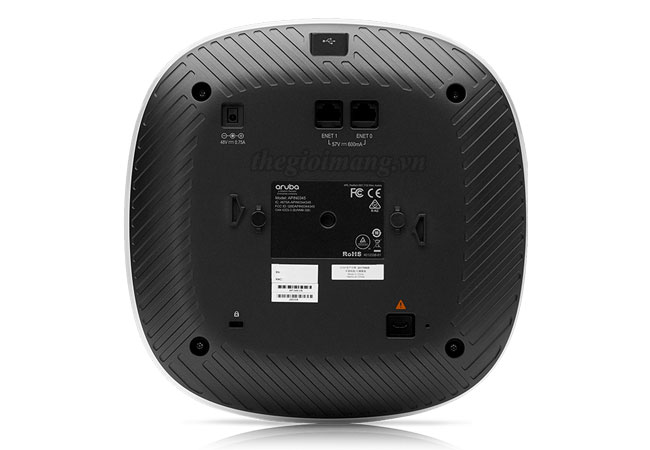

Other Interfaces
  • One HPE SmartRate port (RJ-45, maximum negotiated speed 2.5 Gbps)
    • Auto-sensing link speed (100/1000/2500BASE-T) and MDI/MDX
    • 2.5 Gbps speed complies with NBase-T and 802.3bz specifications
    • PoE-PD: 48Vdc (nominal) 802.3at PoE
    • 802.3az Energy Efficient Ethernet (EEE)
  • One 10/100/1000BASE-T Ethernet network interface (RJ-45)
    • Auto-sensing link speed and MDI/MDX
    • PoE-PD: 48Vdc (nominal) 802.3at PoE
    • 802.3az Energy Efficient Ethernet (EEE)
  • Link aggregation (LACP) support between both network ports for redundancy and increased capacity
  • DC power interface, accepts 1.35/3.5-mm center-positive circular plug with 9.5-mm length
  • USB 2.0 host interface (Type A connector)
  • Bluetooth Low Energy (BLE) radio
    • Up to 4 dBm transmit power (class 2) and -91 dBm receive sensitivity
    • Integrated vertically polarized omnidirectional antenna with roughly 30 degrees downtilt and peak gain of 4.9 dBi (AP-345) or 3.1 dBi (AP-344)
  • Visual indicators (tri-color LEDs): for System and Radio status
  • Reset button: factory reset, LED mode control (normal/off)
  • Serial console interface (proprietary, µUSB physical jack)
  • Kensington security slot
Power Sources and Consumption
  • The AP supports direct DC power and Power over Ethernet (PoE)
  • When both power sources are available, DC power takes priority over PoE
  • Maximum (worst-case) power consumption:
    • DC powered: 20.0W (AP in dual-radio mode), 22.8W (AP in dual-5 GHz mode)
    • PoE powered (802.3at): 21.9W (AP in dual-radio mode), 25.1W (AP in dual-5 GHz mode)
    • PoE powered (802.3af): 13.5W
    • All numbers above are without an external USB device connected. When sourcing the full 5W power budget to such a device, the incremental (worst-case) power consumption for the AP is up to 6W (DC) or 6.6W (PoE)
  • Maximum (worst-case) power consumption in idle mode: 11W (DC or PoE)
Mechanical
  • Dimensions and weight (unit, excluding mount accessories):
    • 22.5 cm (W) x 22.4 cm (D) x 5.2 cm (H) 8.9” (W) x 8.9” (D) x 2.0” (H)
    • 1.05 kg or 2.31 lbs
  • Dimensions and weight (shipping):
    • 33.9 cm (W) x 29 cm (D) x 8.8 cm (H) 13.3” (W) x 11.4” (D) x 3.5” (H)
    • 1.65 kg or 3.63 lbs
Environmental
  • Operating:
    • Temperature: 0° C to +50° C (+32° F to +122° F)
    • Humidity: 5% to 93% non-condensing
  • Storage and transportation:
    • Temperature: -40° C to +70° C (-40° F to +158° F)

JZ031A : Aruba AP-345 (RW) Dual 4x4:4 MU-MIMO Radio Internal Antennas Smart Rate Unified Campus AP.

Data sheet Aruba 340 Series Wireless Access Points
