Aruba AP-335 (JW801A)

JW801A - Aruba AP-335 802.11n/ac 4x4:4 MU-MIMO Dual Radio Integrated Antenna 2.5+1 GbE AP.
  • Giá bán : Liên hệ để có giá tốt
  • Tình trạng : Còn hàng

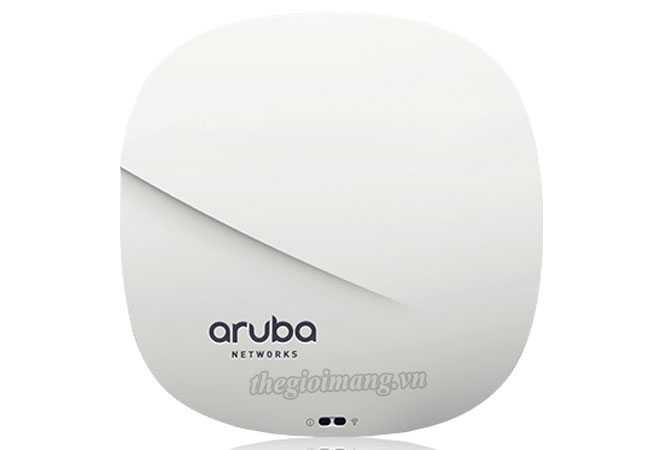

Thiết bị phát sóng Wifi Aruba AP-335 (JW801A)

Model AP-335 (JW801A)
Wi-Fi Radio Specifications
  • AP type: Indoor, dual radio, 5 GHz 802.11ac 4x4 MIMO and 2.4 GHz 802.11n 4x4 MIMO
    • In addition to 802.11n, the 2.4 GHz radio supports all 802.11ac features as well (proprietary extension)
  • Software-configurable dual radio supports 5 GHz (Radio 0) and 2.4 GHz (Radio 1)
  • 5 GHz:
    • Four spatial stream Single User (SU) MIMO for up to 1,733 Mbps wireless data rate to individual 4x4 VHT80 or 2x2 VHT160 client devices
    • Four spatial stream Multi User (MU) MIMO for up to 1,733 Mbps wireless data rate to up to three MU-MIMO capable client devices simultaneously
  • 2.4 GHz: Four spatial stream Single User (SU) MIMO for up to 600 Mbps wireless data rate to individual 4x4 HT40 client devices
  • Support for up to 256 associated client devices per radio, and up to 16 BSSIDs per radio
Wi-Fi Antennas
  • AP-335/IAP-335
    • Four (vertically polarized) integrated 2.4 GHz downtilt omni-directional antennas for 4x4 MIMO with peak antenna gain of 3.8dBi per antenna.
    • Each 5 GHz radio chain has both a vertically and a horizontally polarized antenna element; AP software automatically and dynamically selects the best set of elements for each data packet transmitted or received
    • Four integrated vertically polarized 5 GHz downtilt omnidirectional antennas for 4x4 MIMO with peak antenna gain of 4.9dBi per antenna
    • Four integrated horizontally polarized 5 GHz downtilt omni-directional antennas for 4x4 MIMO with peak antenna gain of 5.7dBi per antenna
    • Built-in antennas are optimized for horizontal ceiling mounted orientation of the AP. The downtilt angle for maximum gain is roughly 30 degrees.
    • Combining the patterns of each of the antennas of the MIMO radios, the peak gain of the effective per-antenna pattern is 1.6dBi in 2.4 GHz and 2.5dBi in 5 GHz

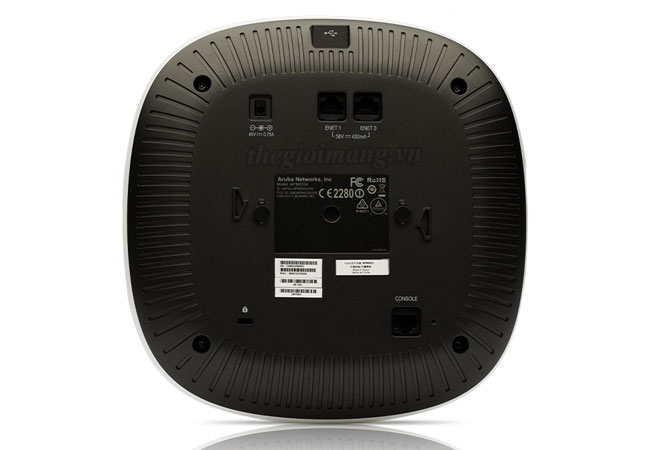

Other Interfaces
  • One HPE Smart Rate port (RJ-45, maximum negotiated speed 5Gbps)
    • Auto-sensing link speed (100/1000/2500/5000BASE-T) and MDI/MDX
    • 2.5Gbps and 5Gbps speeds comply with NBase-T and 802.3bz specifications
    • PoE-PD: 48 Vdc (nominal) 802.3at PoE
  • One 10/100/1000BASE-T Ethernet network interface (RJ-45)
    • Auto-sensing link speed and MDI/MDX
    • PoE-PD: 48 Vdc (nominal) 802.3at PoE
  • Link aggregation (LACP) support between both network ports for redundancy and increased capacity
  • DC power interface, accepts 1.35/3.5-mm center-positive circular plug with 9.5-mm length
  • USB 2.0 host interface (Type A connector)
  • Bluetooth Low Energy (BLE) radio
    • Up to 4 dBm transmit power (class 2) and -91 dBm receive sensitivity
    • Integrated antenna with roughly 30 degrees downtilt and peak gain of 5.1 dBi (AP-334/IAP-334) or 2.2 dBi (AP-335/IAP-335)
  • Visual indicators (tri-color LEDs): for System and Radio status
  • Reset button: factory reset (during device power up)
  • Serial console interface (RJ-45, RS232)
  • Kensington security slot
Power Sources And Consumption
  • The AP supports direct DC power and Power over Ethernet (PoE)
  • When both power sources are available, DC power takes priority over PoE
  • Maximum (worst-case) power consumption: 25.3W (802.3at PoE), 13.2W (802.3af PoE) or 25W (DC)
    • Excludes power consumed by external USB device (and internal overhead); this could add up to 5.9W (PoE or DC) for a 5W/1A USB device
  • Maximum (worst-case) power consumption in idle mode: 10.9W (PoE or DC)
Mechanical
  • Dimensions/weight (unit, excluding mount accessories):
    • 225mm (W) x 224mm (D) x 52mm (H) 8.9” (W) x 8.9” (D) x 2.0” (H)
    • 1150g/41oz
  • Dimensions/weight (shipping):
    • 335mm (W) x 290mm (D) x 85mm (H) 13.2” (W) x 11.4” (D) x 3.35” (H)
    • 1750g/62oz
Environmental
  • Operating:
    • Temperature: 0° C to +50° C (+32° F to +122° F)
    • Humidity: 5% to 93% non-condensing
  • Storage and transportation:
    • Temperature: -40° C to +70° C (-40° F to +158° F)

JW801A : Aruba AP-335 802.11n/ac 4x4:4 MU-MIMO Dual Radio Integrated Antenna 2.5+1 GbE AP.

Data sheet Aruba 330 Series Wireless Access Points
